Description:

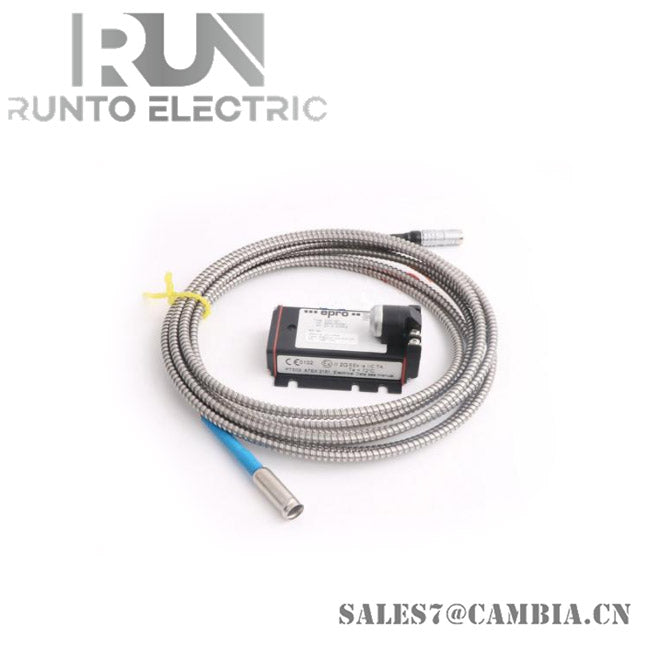

The PR6423/10R-111 is a non-contact eddy current sensor specifically designed for critical turbomachinery applications such as steam, gas, and hydro turbines, compressors, gearboxes, pumps, and fans. It is used to measure radial and axial shaft dynamic displacement, position, eccentricity, and speed.
Features:
- Measures vibration of machine shafts, eccentricity, thrust (axial displacement), differential expansion, valve position, and air gaps
- Meets international standards DIN 45670, ISO 10817-1, and API 670
- Rated for explosive areas, Eex ib IIC T6/T4
Specifications:
-
Model: PR6423/10R-111
-
Operating Voltage: 24V DC
-
Input Channels: 1
-
Temperature Range: -40°C to 85°C
-
Communication Protocol: HART
-
Operating Temperature: -40 to 150°C (-40 to 302°F)
-
Accuracy: ±0.001 inches (0.025 mm)
-
Measuring Range: 0.1 to 1000 Hz
-
Sensitivity: 10 mV/g
-
Output: 4 to 20 mA
-
Voltage Supply: 12 to 24 VDC
-
Weight: 0.15 kg
-
Dimensions: 50 x 25 x 20 mm
