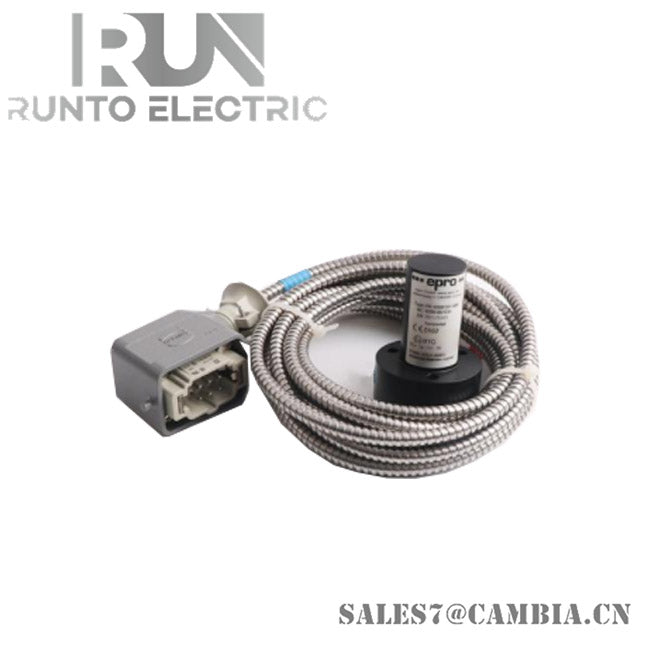

Emerson Epro PR9268/300-000 Electrodynamic Velocity Sensor

Description

The PR9268/300-000 is a mechanical spring-mass sensor that offers non-contact vibration measurement with high sensitivity and frequency response. It is available in various cable lengths and can be supplied with or without a Harting connector, making it adaptable to different installation requirements.

Specifications

• Sensitivity: 28.5 mV/mm/s (723.9 mV/in/s)
• Measurement Range: ±1,500 µm (59,055 µin)
• Frequency Range: 4 to 1,000 Hz (240 to 60,000 cpm)
• Operating Temperature: -20°C to +100°C (-4°F to 180°F)
• Humidity: 0 to 100%, non-condensing
• Protection Class: IP65
• Material: Stainless steel housing with PTFE cable
• Weight: 280g (without cable)

Features

• High Sensitivity: Ensures precise vibration measurement for critical machinery.
• Wide Frequency Range: Covers a broad spectrum of vibration monitoring needs.
• Robust Industrial Design: Built for harsh environments with IP65 protection.
• Flexible Installation: Available with various cable lengths and connector options.
• Reliable Performance: Designed for long-term operation in demanding conditions.
