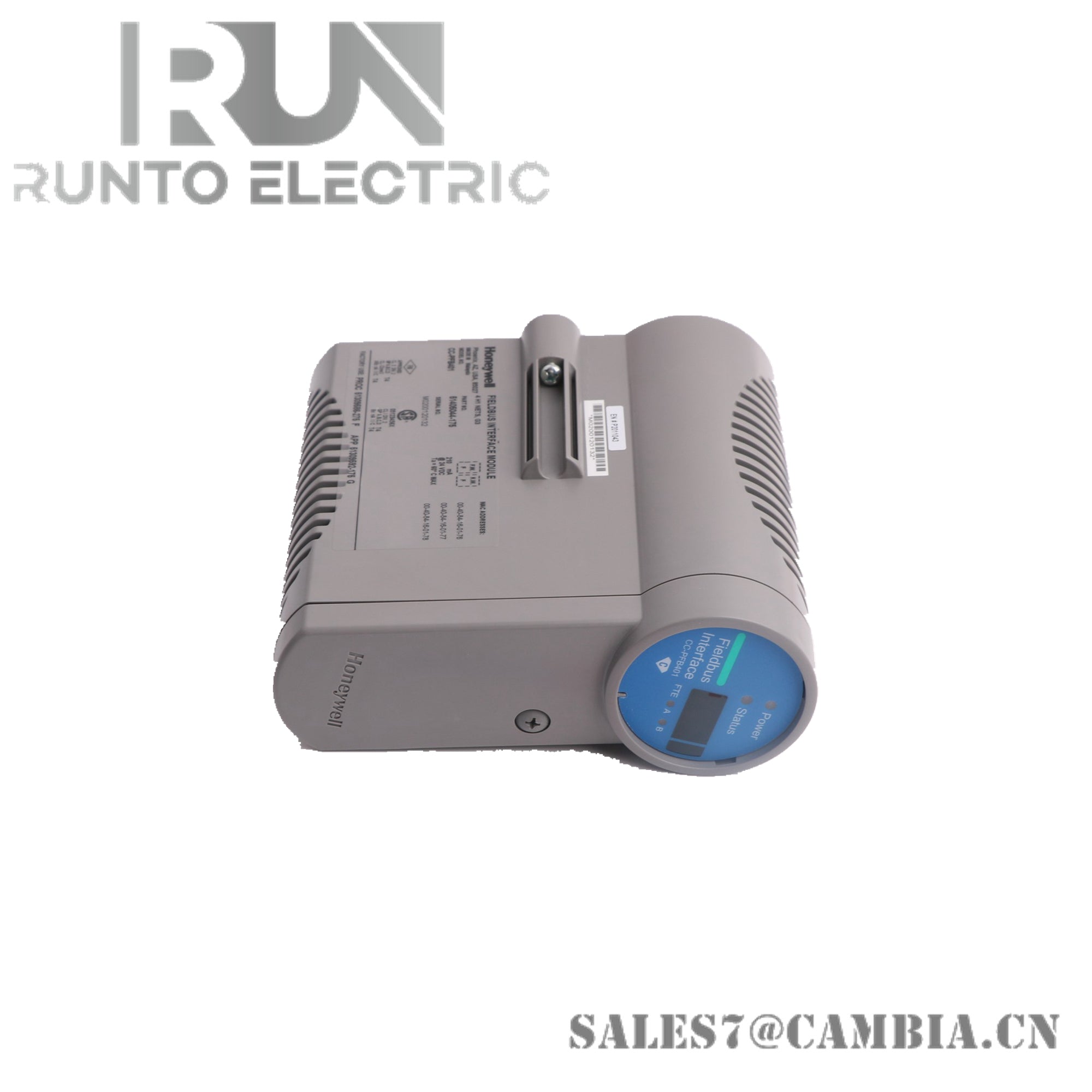

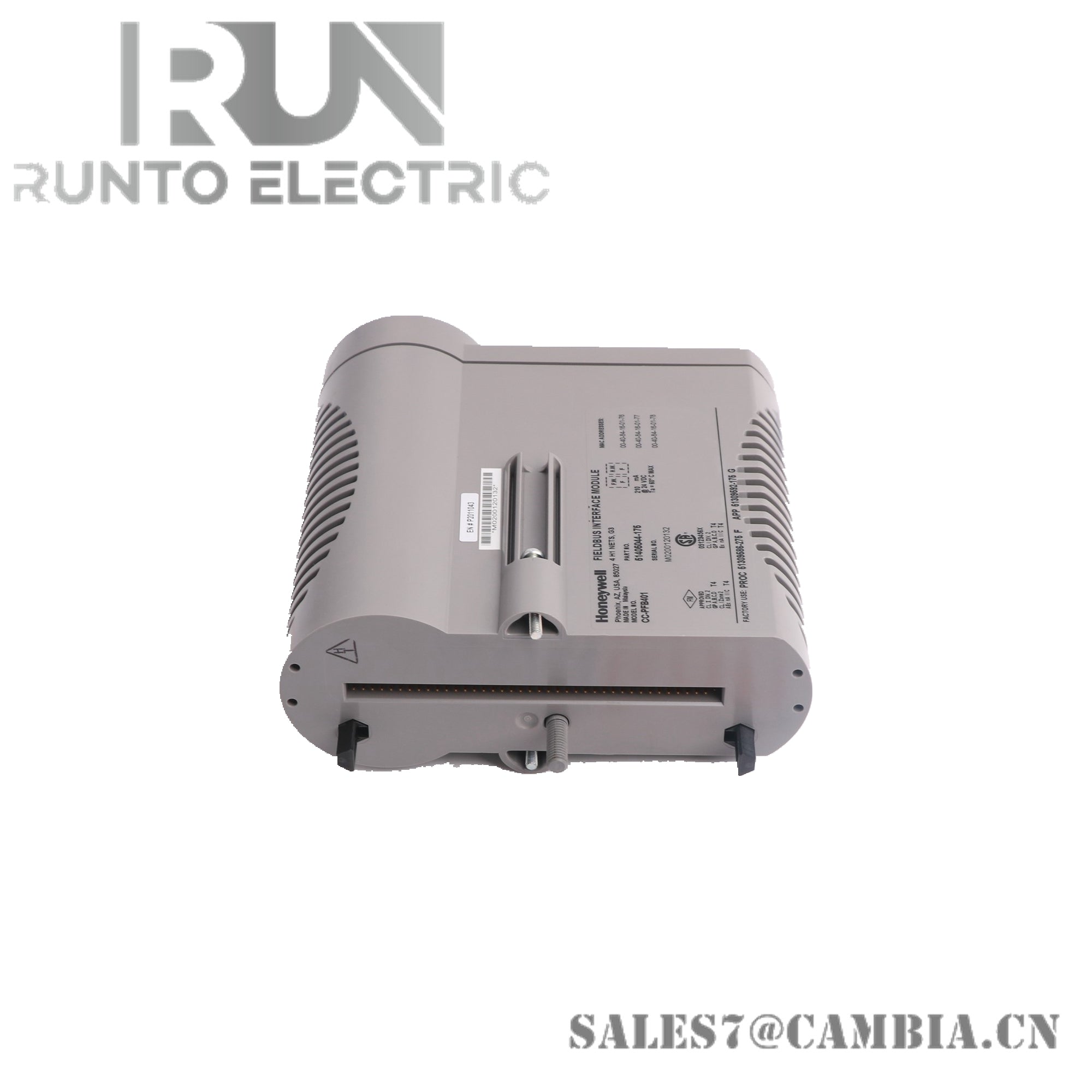

FC-RUSIO-3224 | Honeywell | SM RIO Module

General Information

• Manufacturer: Honeywell

• Product No.: FC-RUSIO-3224

• Product Type: Remote Universal Safe I/O Device (32 channels, 24 VDC)

Electrical Specifications

• Supply Voltage: 24 VDC (–15% to +30%)

• Supply Current: Max. 300 mA (without field load)

• Reverse Polarity Protection: Parallel diode (fuse protection)

Environmental Specifications

• Operating Temperature:

  • Outside Module: –40°C to +70°C (–40°F to +158°F)

  • Inside Module: –40°C to +90°C (–40°F to +194°F)

• Storage Temperature: –40°C to +85°C (–40°F to +185°F)

• Relative Humidity: 10% to 95% (non-condensing)

• Pollution Degree: 2 or better

Physical Specifications

• Dimensions (L × W × H): 7.24 cm × 16.51 cm × 14.5 cm

• Weight: 0.7 kg

• Shipping Weight: 2 kg
