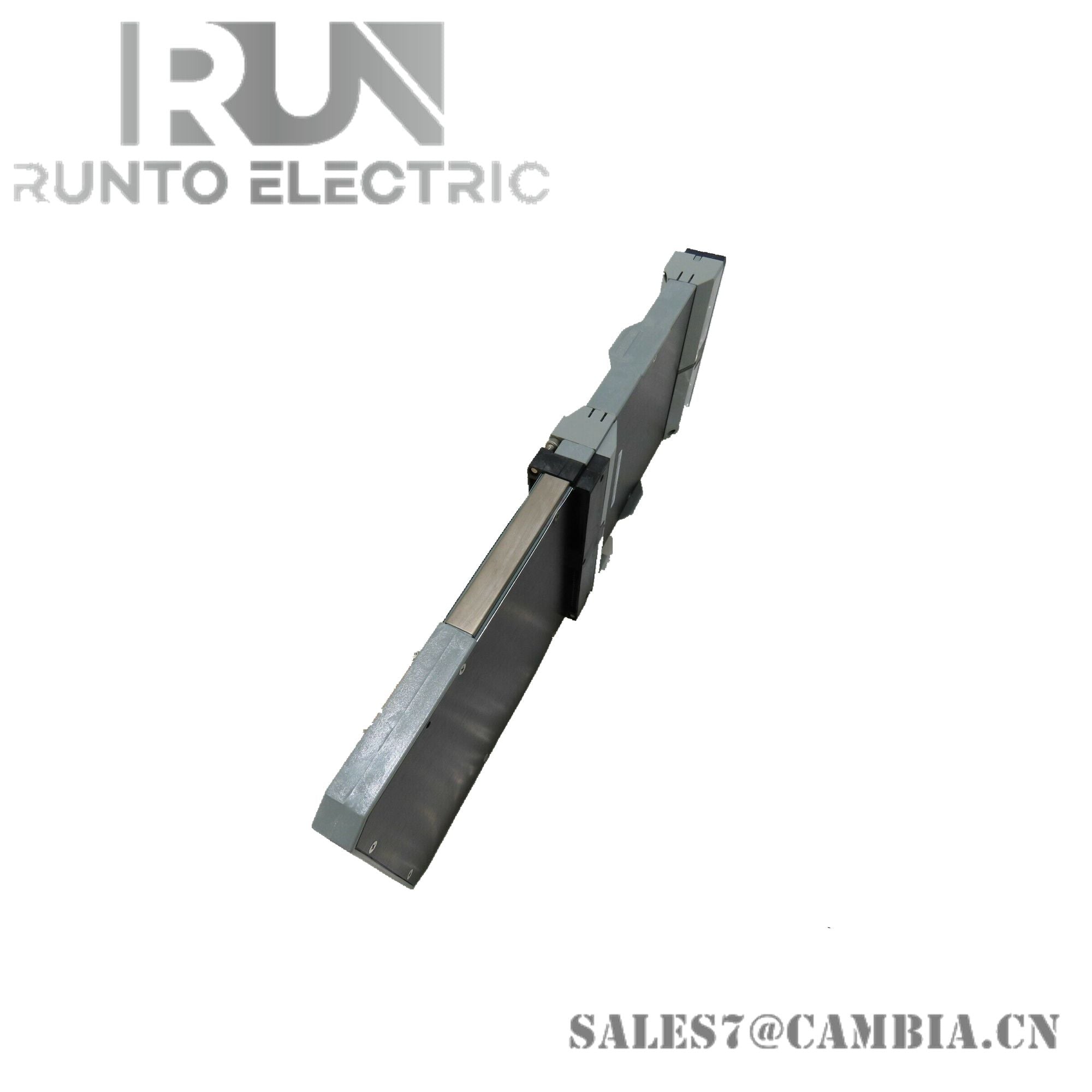

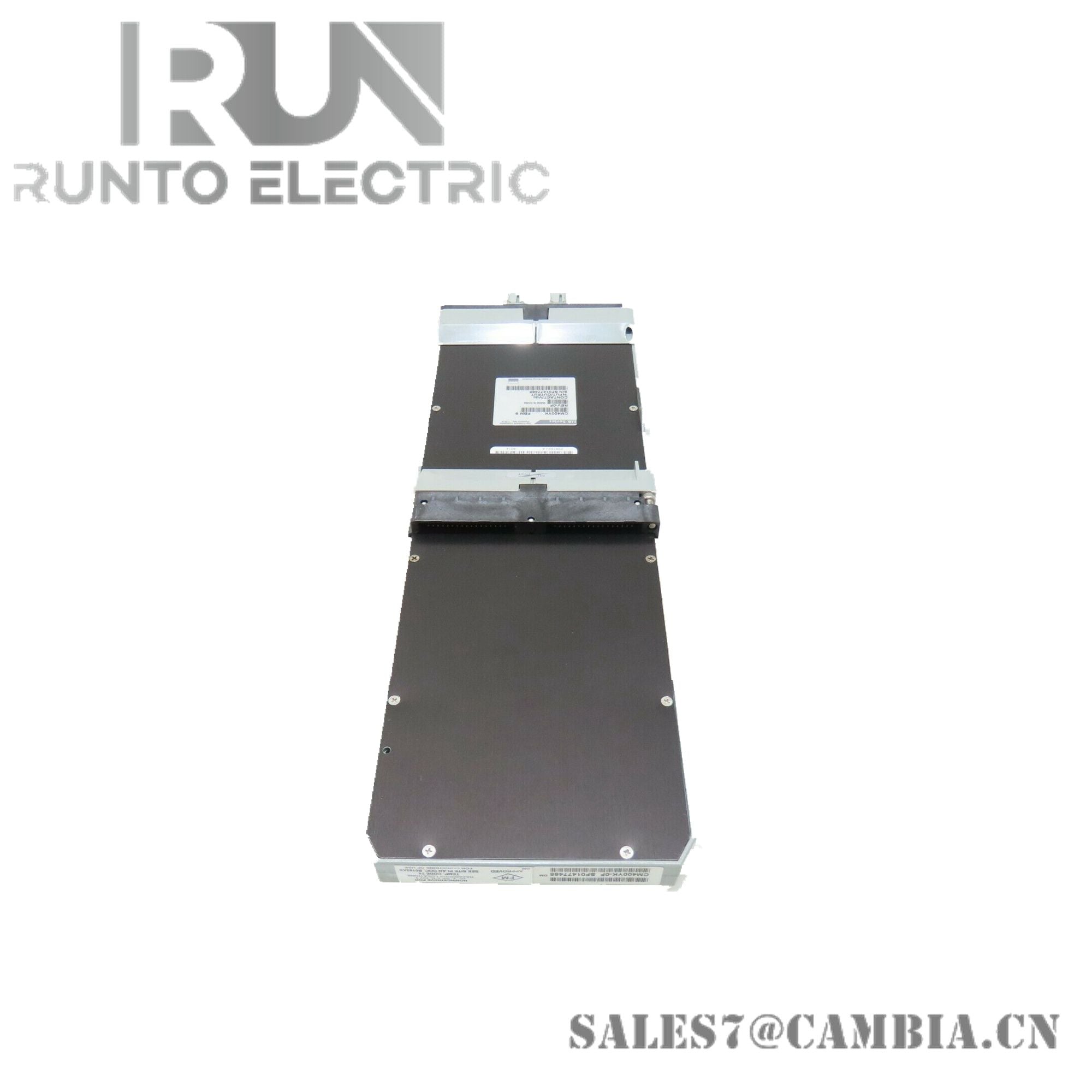

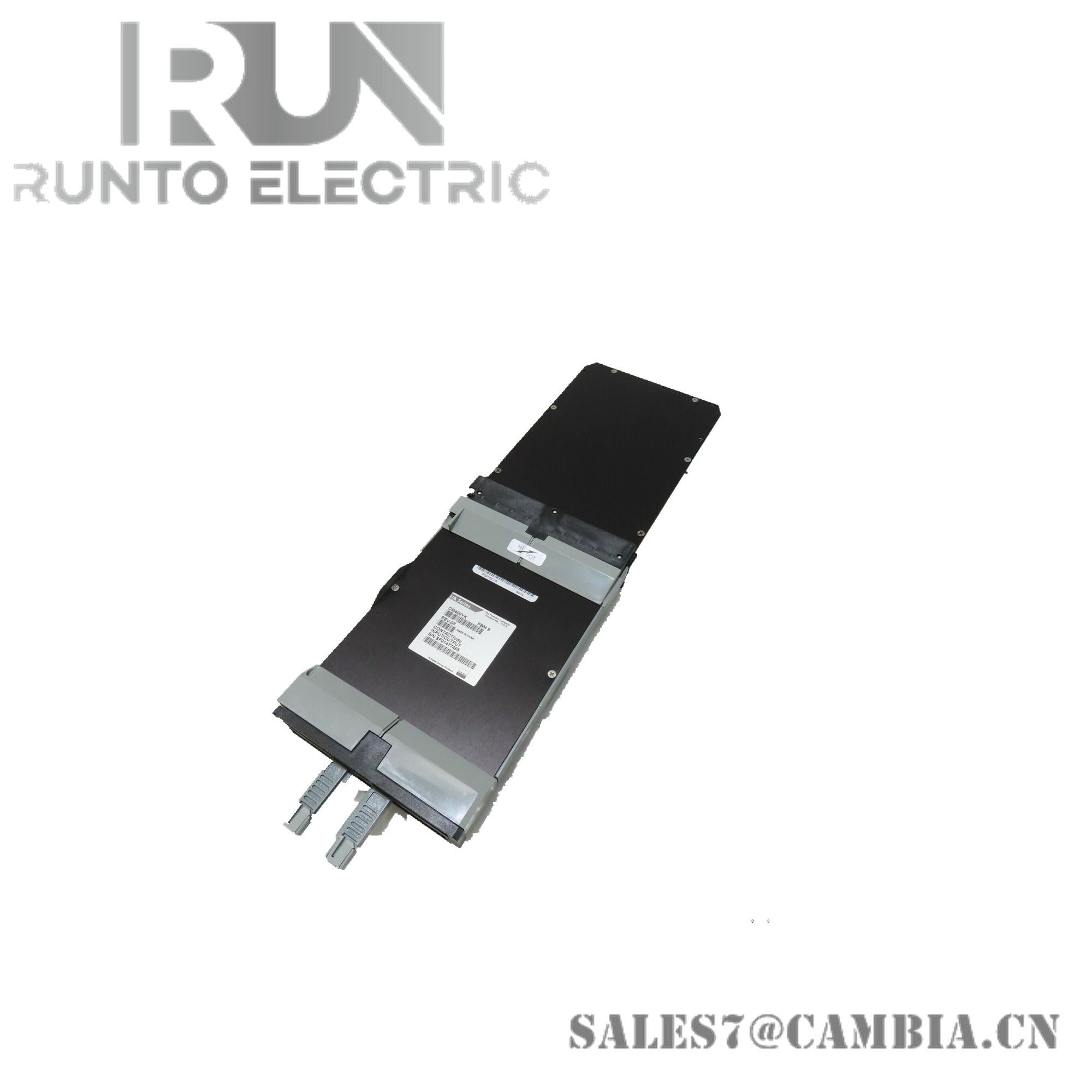

Foxboro FBM100 P0973CA Expansion Module

Overview:

• Integrates seamlessly with the Foxboro I/A Series Distributed Control System (DCS).
• Expands communication capabilities by adding four independent fieldbus connections.
• Connects the Field Control Processor 270 (FCP270) to a wider network of fieldbus devices.

Features:

• Supports up to 32 Foxboro 200 Series Fieldbus Modules (FBMs) per fieldbus.
• Enables flexible system configuration for various process control applications.
• High-speed communication: Delivers reliable data transmission at 2 Mbps for efficient process monitoring and control.
• Robust design: Operates in a wide temperature range (-20 to +70°C) for harsh industrial environments.

Technical Specifications:

• Number of Fieldbus Connections: 4
• Supported FBM Types: Foxboro 200 Series
• Maximum FBM Capacity per Fieldbus: 32
• Data Transmission Rate: 2 Mbps
• Input Voltage Range: 21 to 26 VDC
• Power Consumption: 2.2 W (maximum)
• Operating Temperature: -20 to +70°C (-4 to +158°F)
• Operating Humidity: 5 to 95% (non-condensing)
• Operating Altitude: -300 to +3,000 m (-1,000 to +10,000 ft)

NEW AND ORIGIN ITEM IN STOCK

WITH ONE YEAR WARRANTY
