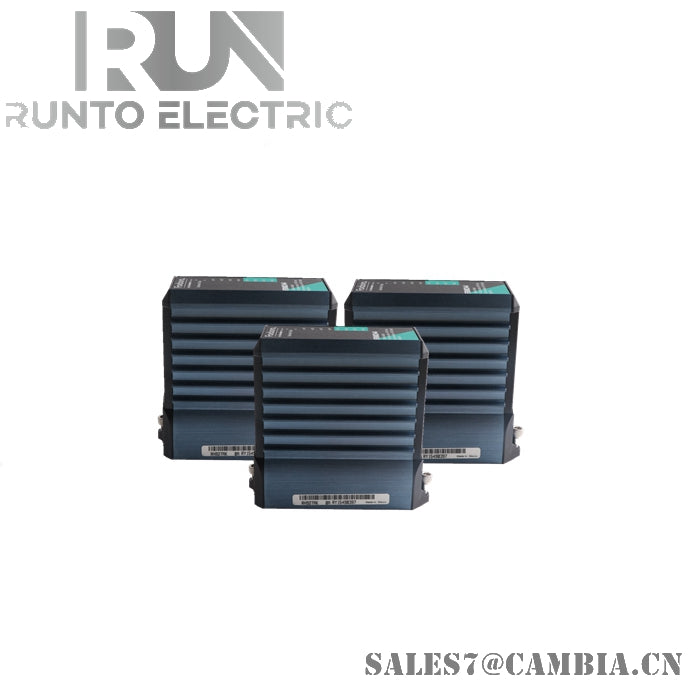

Foxboro FBM242 P0916NG Discrete Output Module

Description

The Foxboro FBM242 P0916NG is a high-performance discrete output module designed for use in I/A Series distributed control systems. It provides 16 externally sourced, isolated output channels for controlling field devices in demanding industrial environments, supporting a wide range of voltage levels and load types.

Specifications

• Model Number: FBM242
• Part Number: P0916NG
• Output Channels: 16 isolated discrete outputs
• Applied Voltage: 15 to 60 VDC (max)
• Load Current: 2.25 A (max) per channel
• Inrush Current:
  • 8 A for 20 ms at 30°C
  • 6.4 A for 20 ms at 70°C
• On-State Voltage Drop: 0.2 V (max) at 2.25 A
• Off-State Leakage Current: 0.1 mA (max)
• Inductive Load Protection: Requires diode or MOV across load
• Fieldbus Communication: Redundant 2 Mbps with FCM or FCP
• Input Voltage Range: 24 VDC +5%, –10%
• Power Consumption: 3 W (max)
• Operating Temperature: –20°C to +70°C
• Humidity: 5–95% RH, non-condensing
• Isolation: 600 VAC withstand between channels and ground
• Mounting: Modular baseplate (DIN rail or rack)
• Dimensions (HxWxD): 102 × 45 × 104 mm
• Weight: Approx. 284 g


Features

• High-Density Output: 16 discrete outputs in a compact module
• Wide Voltage Support: Handles 15–60 VDC, 120 VAC/125 VDC, and 240 VAC outputs
• Galvanic Isolation: Each channel isolated from others and ground
• Fail-Safe Options: Configurable fallback and output behavior
• Hot-Swappable: Replaceable without disconnecting field wiring
• Harsh Environment Ready: Rated for Class G3 environments
• Visual Indicators: LEDs for module and channel status
• Flexible Termination Assemblies: Supports fusing, relays, and solid-state outputs
• No Calibration Required: Simplifies maintenance and deployment
