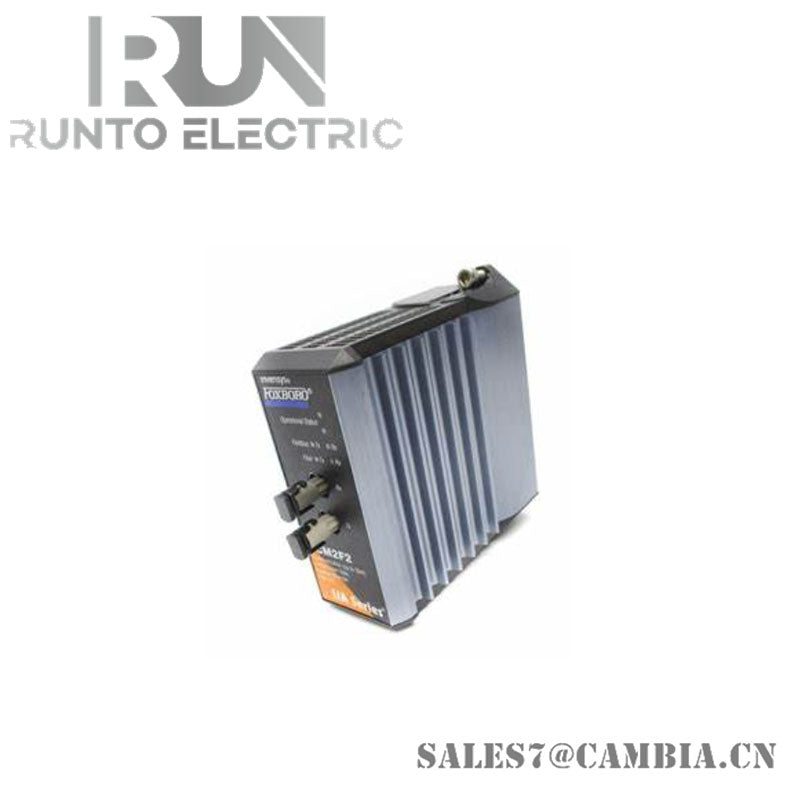

Foxboro FCM100E P0972ZA Field Communication Module

Description

The Foxboro FCM100E P0972ZA is a fiber-optic Field Communication Module designed for use in I/A Series distributed control systems. It enables high-speed, reliable communication between fieldbus modules (FBMs) and control processors, making it ideal for demanding industrial automation environments.

Specifications

• Model Number: FCM100E
• Part Number: P0972ZA
• Communication Protocols:
  • 2 Mbps for 200 Series DIN FBMs
  • 268 Kbps for 100 Series FBMs
• Ethernet Fieldbus: 100 Mbps
• Fieldbus Capacity:
  • 32 modules (200 Series)
  • 64 modules (100 Series)
• Fieldbus Cable Length:
  • 20 m max (2 Mbps)
  • 1830 m max (268 Kbps)
• Input Voltage Range: 21–42 VDC
• Power Consumption: 5 W (max)
• Operating Temperature: 0°C to +70°C
• Humidity: 5–95% RH (non-condensing)
• Altitude Range: –300 to +3,000 m
• Fiber Type: MMF 62.5/125 µm
• Cable Lengths Supported: 3 m to 2 km
• Dimensions (HxWxD): 11.4 × 5.15 × 14.7 cm
• Weight: Approx. 0.3 kg

Features

• High-Speed Communication: Supports both 2 Mbps and 268 Kbps fieldbus rates for flexible deployment
• Redundancy Support: Compatible with redundant configurations for enhanced system reliability
• Fiber Optic Interface: Ensures noise immunity and long-distance communication
• Wide Compatibility: Interfaces with both 100 and 200 Series FBMs
• Environmental Resilience: Operates reliably in harsh industrial conditions
• Compact Design: DIN-rail mountable with a small footprint
• Diagnostic Capabilities: Supports fault detection and isolation for maintenance efficiency
