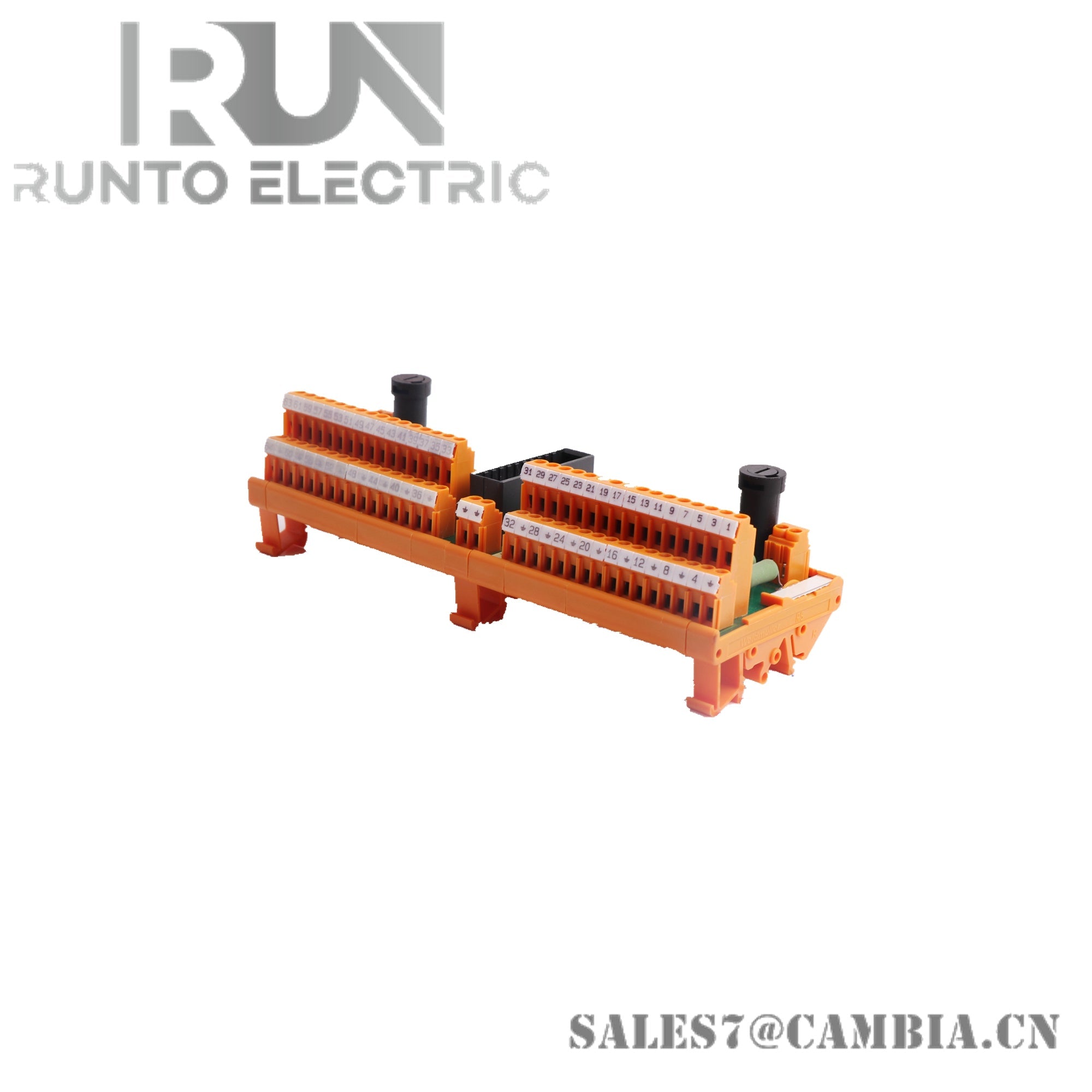

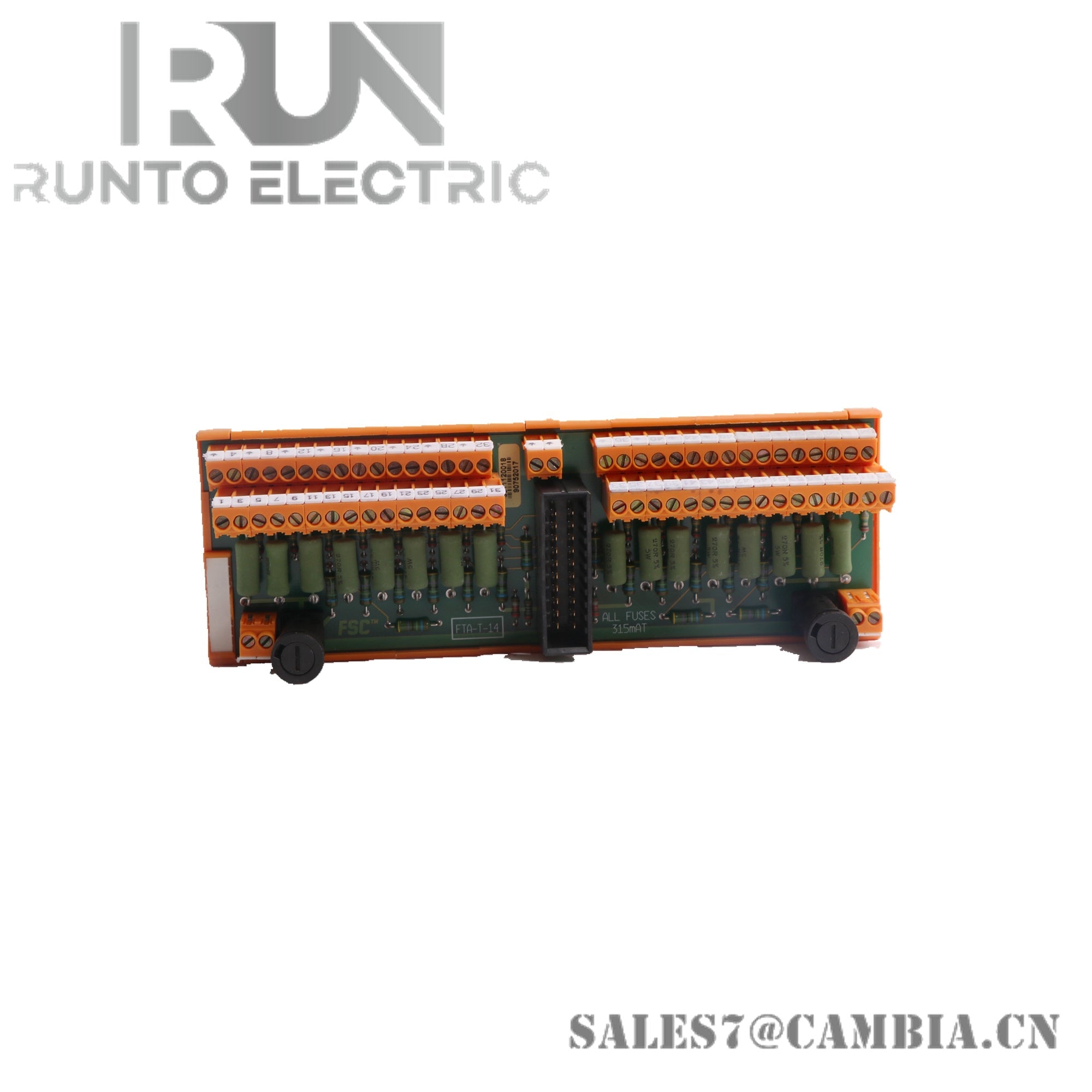

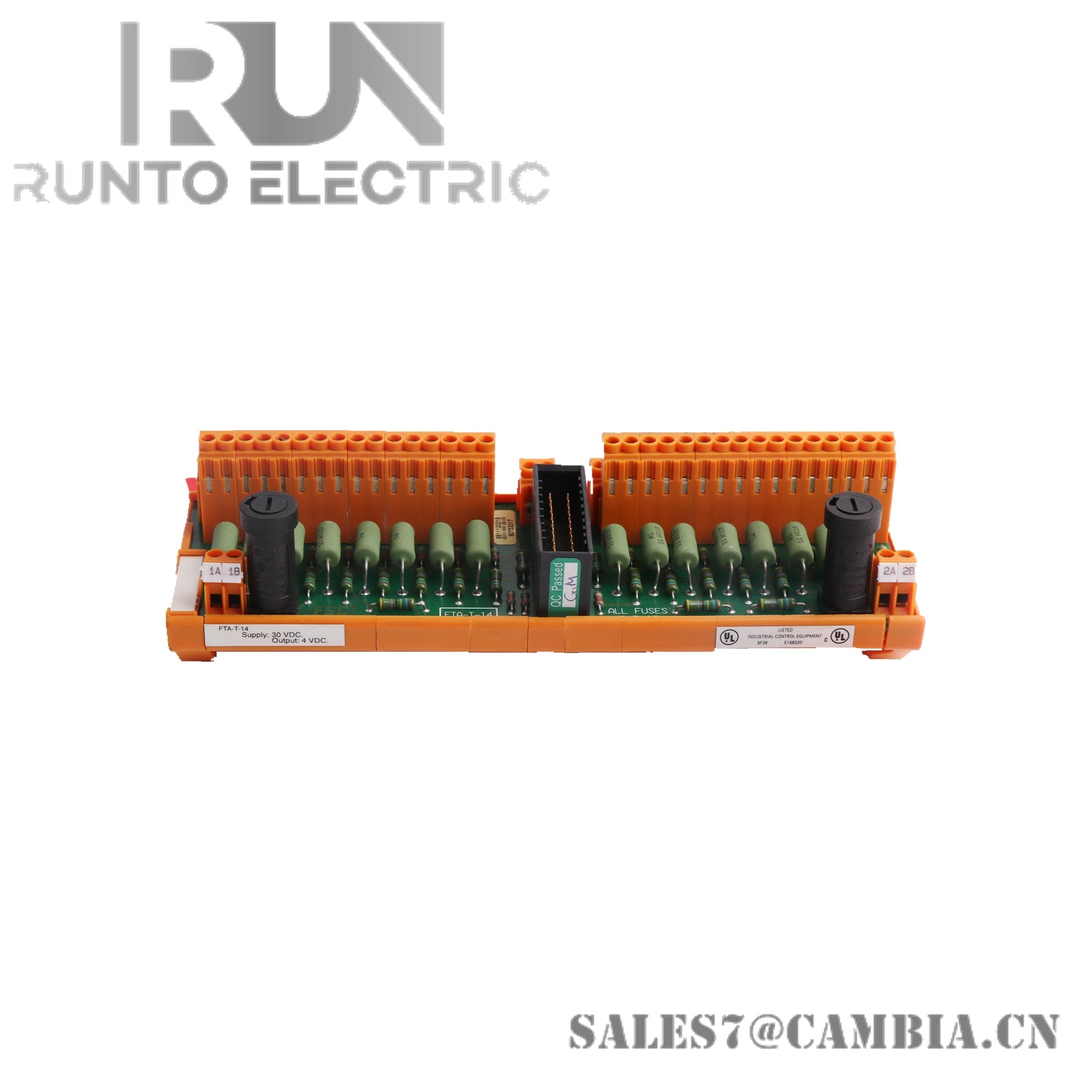

FTA-T-02 | Honeywell | Fail-Safe Digital Output Module

General Information

• Manufacturer: Honeywell
• Product No.: FTA-T-02
• Product Type: Fail-safe Digital Output FTA (24/48/60 VDC, 24 Channels)

Power Specifications

• Number of Channels: 24 (6 groups of 4)
• Maximum Voltage:
  • 36 VAC / 50 VDC – IEC 1010 (1990), Overvoltage Category 3 (Table D.12)
  • 125 VAC / 150 VDC – IEC 1010 (1990), Overvoltage Category 2 (Table D.10)
• Maximum Continuous Current per Channel: 2 A

Termination (Screw Terminals)

• Max. Wire Diameter: 0.25 cm² (AWG 14)
• Strip Length: 0.7 cm (0.28 in)
• Tightening Torque: 0.5 Nm (0.37 ft-lb)

Physical Dimensions

• Module Dimensions (L × W × H): 14.5 cm × 7 cm × 5.7 cm
• DIN EN Rails: TS32 / TS35 × 7.5
• Used Rail Length: 14.6 cm (5.75 in)

Weight

• Shipping Weight: 2 kg
