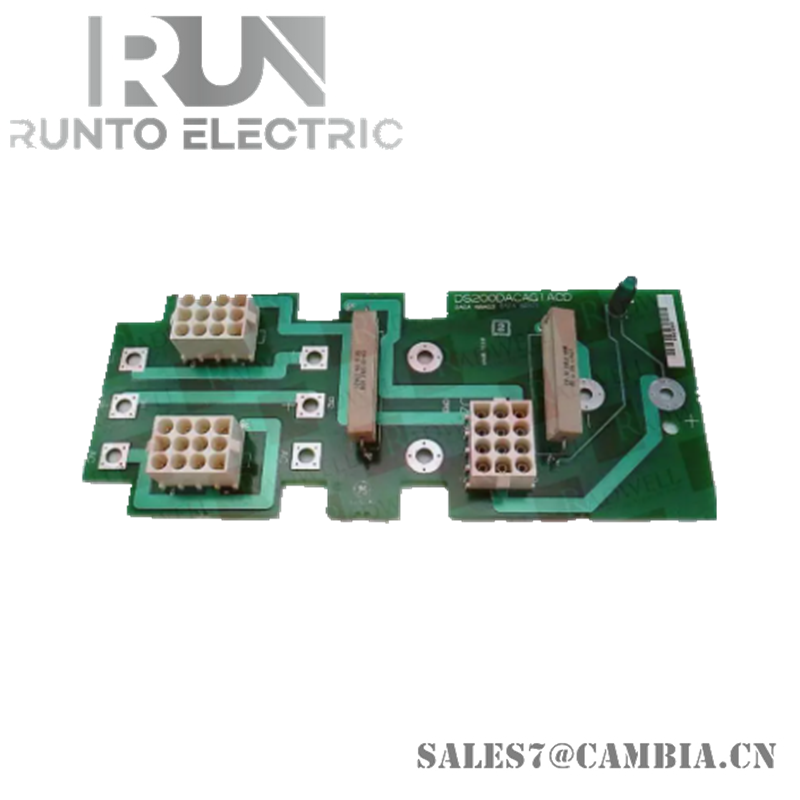

GE DS200DACAG1ACD TC/DC AC/DC Converter Board

Description

The DS200DACAG1ACD is a board component within GE’s Mark V Speedtronic system, a legacy part that is no longer manufactured by General Electric. It can still be acquired from suppliers like AX Control as either new, never-used surplus or as reconditioned units from previously used industrial stock. The Mark V Series, to which this DS200DACAG1ACD belongs, is one of the final General Electric product series to utilize their patented Speedtronic control system technology, originally introduced with the Mark I in the late 1960s. The DS200DACAG1ACD is defined by its functional description as a TC/DC AC/DC Converter Board.

Features

• Speedtronic Control System Technology: Part of GE’s advanced Speedtronic control system.
• Legacy Component: No longer manufactured but available through surplus and reconditioned sources.
• Three-fold Revision History: Enhancements and updates over the original DS200DACAG1 parent printed circuit board.
• Converter Functionality: Designed to convert TC/DC to AC/DC within the Mark V Series control system.

Specifications

• Manufacturer: GE General Electric
• Series: Mark V
• Part Number: DS200DACAG1ACD
• Functional Description: TC/DC AC/DC Converter Board
• Functional Acronym: DACA
• PCB Coating: Normal Coating
• Functional Revision 1: A
• Functional Revision 2: C
• Artwork Revision: D
