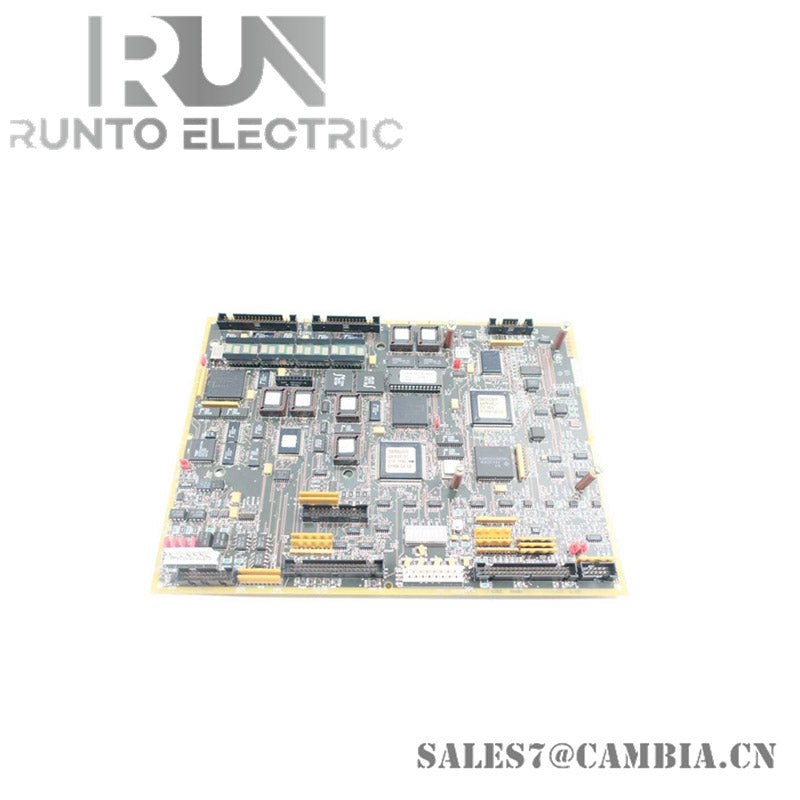

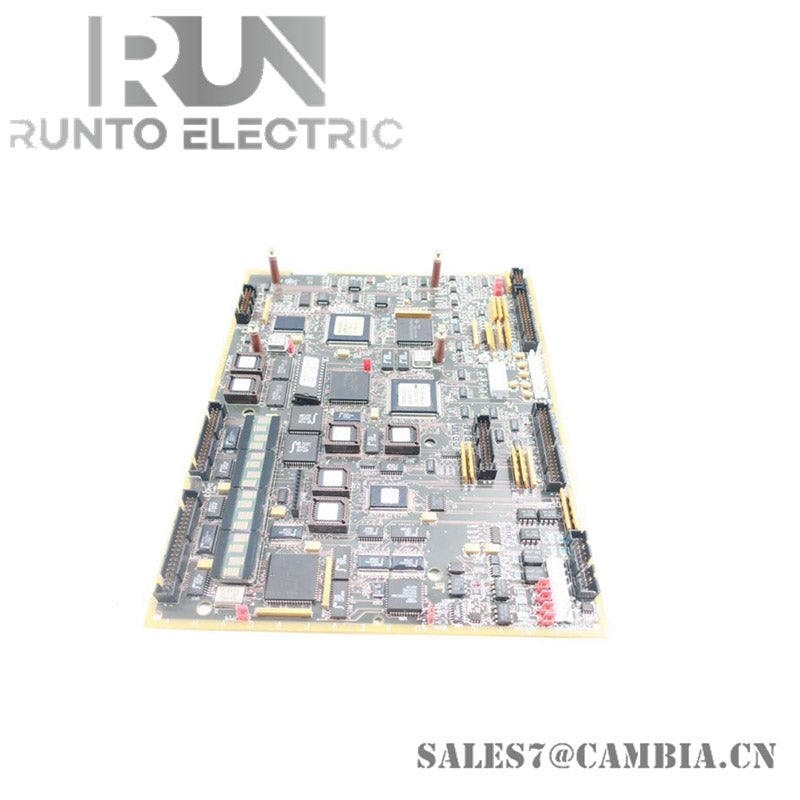

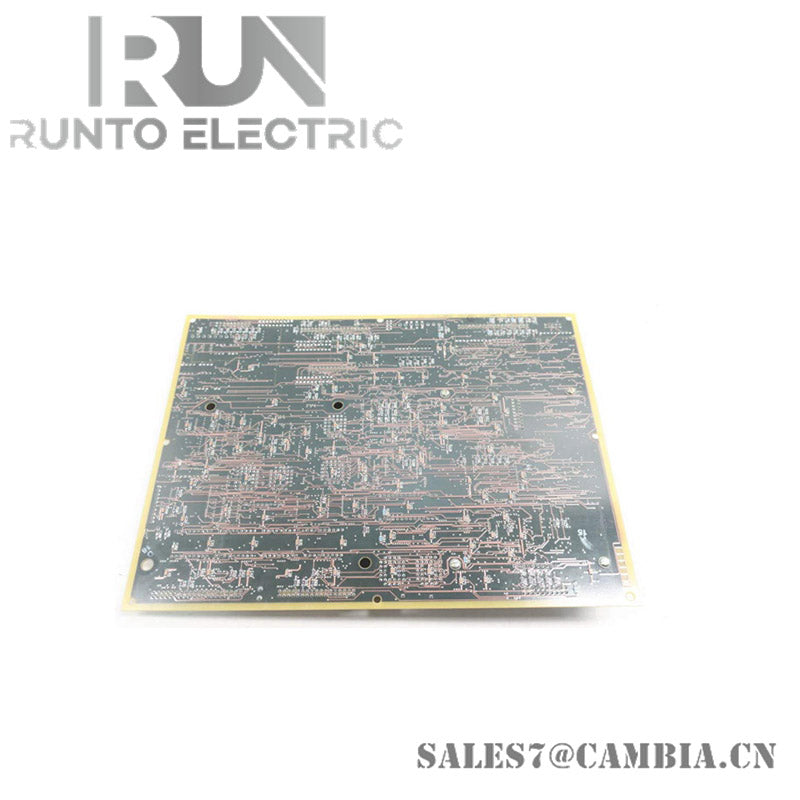

GE DS200LDCCG1AAA Drive Control And LAN Communications Board

Technical Specifications

Manufacturer: GE Motors & Industrial Systems
Series: DIRECTO-MATIC
Part Number: DS200LDCCG1AAA
Functional Acronym: LDCC
Functional Description: Drive Control/LAN Communications Board
PCB Coating: Normal Coating
Functional Revision 1: A
Functional Revision 2: A
Artwork Revision: A
Instruction Manual: GEI-100216

Product Description

DS200LDCCG1AAA is a communications board developed by General Electric. Specifically, this board serves as a drive control and LAN communications board. Manufactured by GE shell company GE Motors & Industrial Systems, this unit interfaces with GE DIRECTO-MATIC 2000 drives and exciters. Users benefit from a wide array of capabilities, including integrated operator interfacing and drive resets.

Hardware Tips and Specifications

Integral to the functionality of any circuit board or larger drive assembly, a set of microprocessors control and process motor and I/O functions as well as LAN communications for the DS200LDCCG1AAA. Four on-board microprocessors, located on the DS200LDCCG1AAA, manage I/O and drive controls. The drive control processor (DCP) houses I/O peripherals such as controllers and counters and performs analog-to-digital and digital-to-analog conversions. Additionally, a motor control processor (MCP) enables digital I/O communications and motor controls, while a co-motor control processor (CMP) collaborates with the MCP board for additional processing power. The CMP takes over math-intensive calculations if needed. The LAN control processor (LCP), located on the base plate of the DS200LDCCG1AAA, oversees LAN communications.
