General Electric

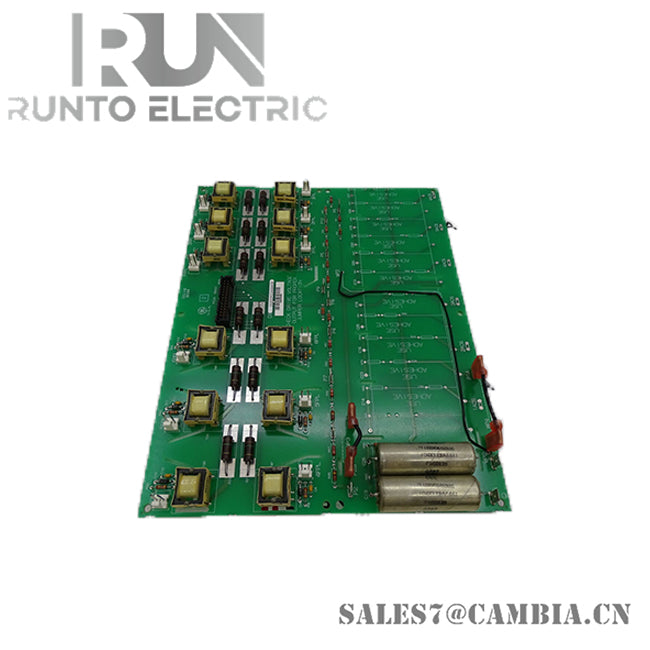

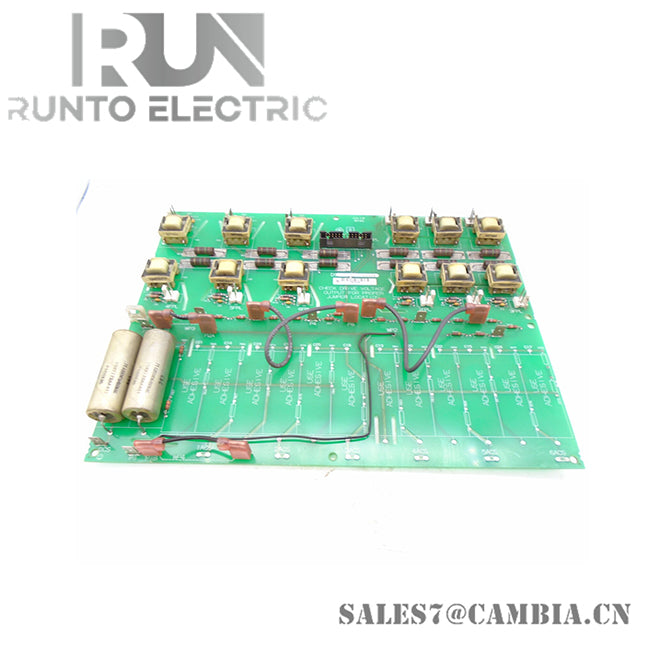

GE DS200PCCAG9ACB Power Connect Card Assembly
SKU: DS200PCCAG9ACB
In stock
Description

Description

The DS200PCCAG9ACB serves as an interface between the drive and the SCR (Silicon Controlled Rectifier) power bridge. It facilitates the transmission of power and control signals, ensuring efficient operation in demanding industrial environments.

Specifications

  • Voltage Range: Operates on 240–630 V in a regenerative state.

  • Compatibility: Designed for use with GE Mark V series systems.

  • Protection: Includes DC voltage snubbers and leg fuses for enhanced safety.

  • Bus Transformer: Supports both separate and common bus transformers.

  • Dimensions: 16 x 10 x 10 inches.

  • Weight: Approximately 9 ounces.

Features

  • Regenerative Operation: Optimized for systems requiring regenerative armature voltage.

  • Robust Design: Built to withstand harsh industrial conditions.

  • Safety Features: Equipped with voltage snubbers and fuses to protect against electrical faults.

  • Ease of Integration: Compatible with J and M-style frames in the Mark V series.

  • Reliable Performance: Ensures consistent operation in critical applications.
