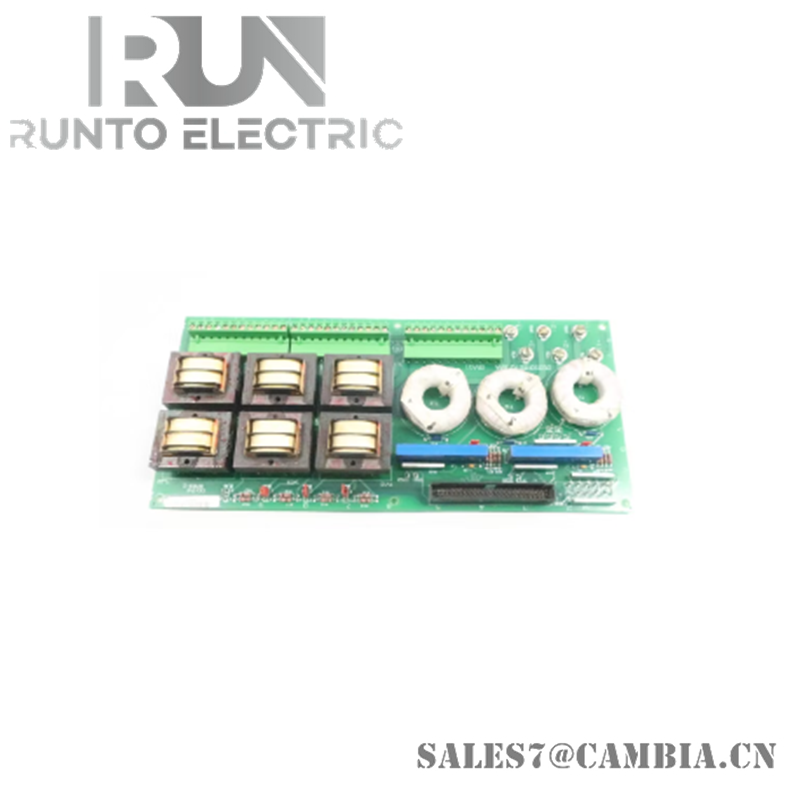

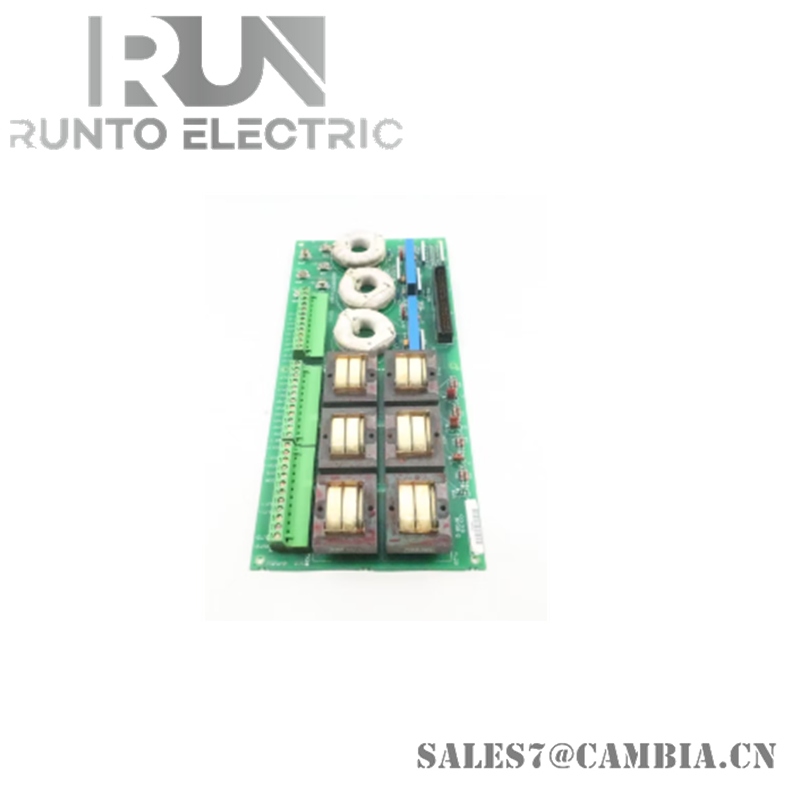

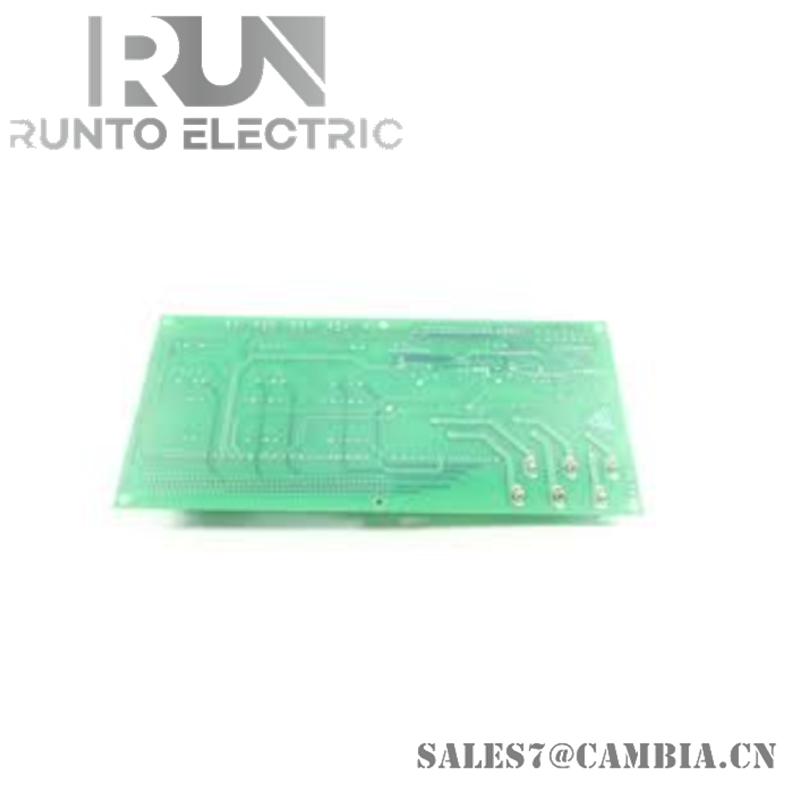

GE DS200PTCTG1BAA Signal Conditioner Board

Technical Specifications

• Manufacturer: General Electric
• Series: Mark V
• Part Number: DS200PTCTG1BAA
• Functional Acronym: PTCT
• Functional Description: Signal Conditioner Card
• PCB Coating: Normal Coating
• Revision Quantity: 3 Revisions
• Assembly Type: Normal Assembly
• Mark V Series Grouping: Group 1

Description

The DS200PTCTG1BAA is a printed circuit board manufactured by General Electric for the Mark V Turbine Control System Series. This series is designed for control and management systems in compatible wind, steam, and gas turbine automated drive assemblies.

Mark V Series Context:

• The Mark V Series is a part of GE’s legacy product line, as its production has been discontinued following its initial release.
• It represents one of the final Mark product series incorporating the patented Speedtronic control system technology.

Product Description:

• The DS200PTCTG1BAA is classified as a Potential Transformer Current Transformer (PTCT), although some documentation refers to it as a Signal Conditioner Board.
• This PCB is an evolved version of the DS200PTCTG1, featuring three significant revisions compared to the original PTCT board in the Mark V Series.
