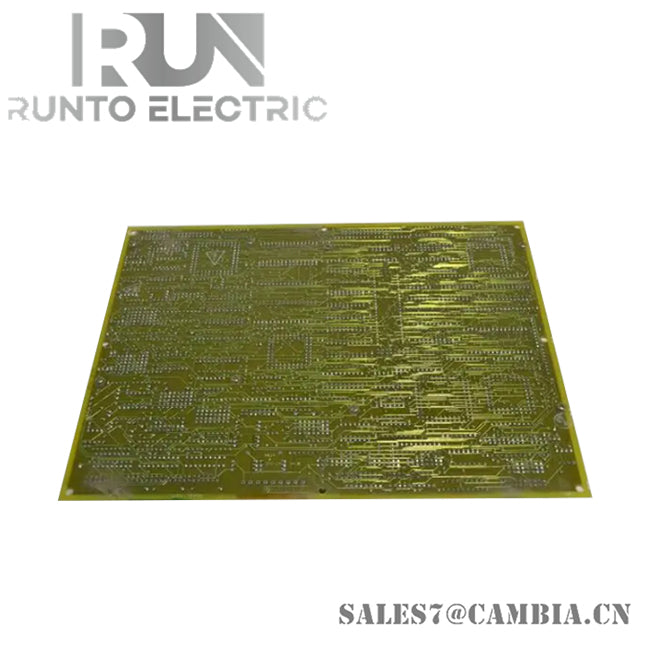

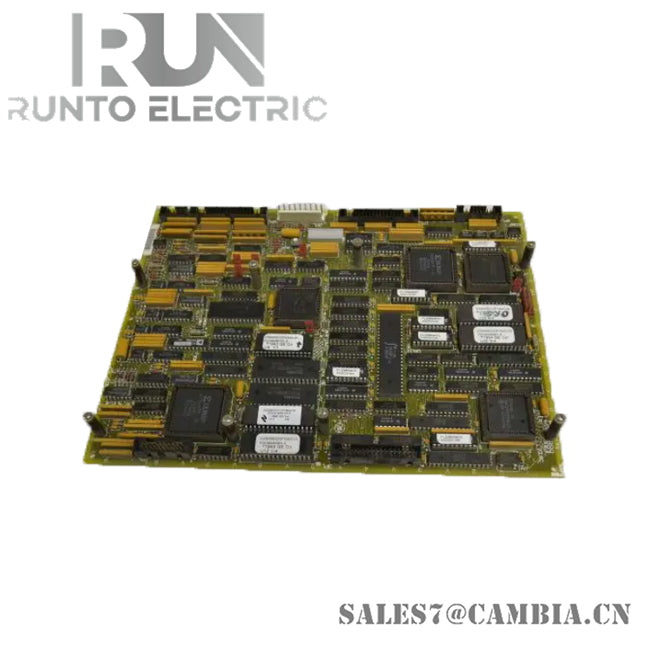

GE DS200RTBAG2AEB Relay Terminal Board

Description

The GE DS200RTBAG2AEB is a Relay Terminal Board designed for use in GE’s Mark V and EX2000 control systems. It provides termination points for external I/O signals, making it a vital interface component in turbine control and industrial automation environments.

Specifications

• Model Number: DS200RTBAG2AEB
• Series Compatibility: GE Speedtronic Mark V and EX2000
• Board Type: Relay Terminal Board
• Dimensions: Approx. 15 cm × 18 cm × 4 cm
• Weight: Around 1.5 kg
• Operating Temperature: -40°C to +85°C
• Storage Temperature: -40°C to +105°C
• Humidity Tolerance: Up to 95%, non-condensing
• Connector Type: Removable connectors for simplified maintenance
• PCB Design: Multilayer board with industrial-grade analog and digital components

Features

• I/O Termination: Interfaces with both analog and digital external signals
• System Integration: Seamlessly connects to GE turbine control systems
• High Reliability: Built for demanding industrial conditions
• Serviceability: Removable connectors allow easy installation and replacement
• Diagnostic Support: Facilitates troubleshooting and system health monitoring
• Versatile Application: Suitable for power generation, automation, and drive control systems
• Static-Sensitive Handling: Requires ESD precautions during installation and servicing
