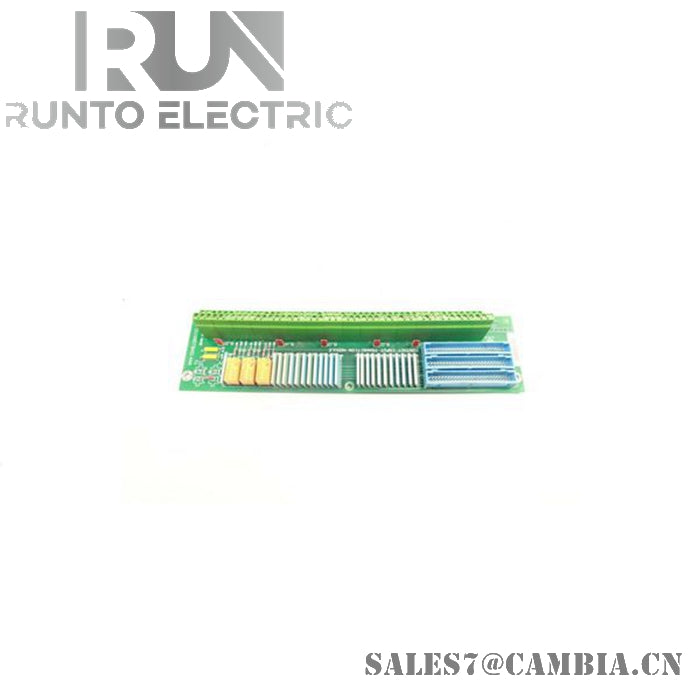

GE DS200TBQAG1ABB Mark V DS200 Analog I/O Termination Board

Product Information:

• Model: DS200TBQAG1ABB
• Manufacturer: General Electric (GE)
• Type: RST Analog Termination Board
• Application: Gas turbine control systems

Specifications:

• Two 90-pin terminal blocks (TB1 and TB2)
• Accommodates up to 180 signal lines
• Three 20-pin connectors

Installation Guidelines:

1. Label each signal wire's terminal ID before removal.
2. Loosen terminal screws to remove wires, ensuring screws remain in place.
3. When disconnecting ribbon cables, grasp only the connector portion to prevent wire loss.

Additional Information:

• Dimensions: 160 x 160 x 120 mm
• Weight: 0.8 kg
• Operating Temperature: -20 to 70 degrees Celsius
• Storage Temperature: -40 to 85 degrees Celsius
• Humidity: 0 to 95% non-condensing
