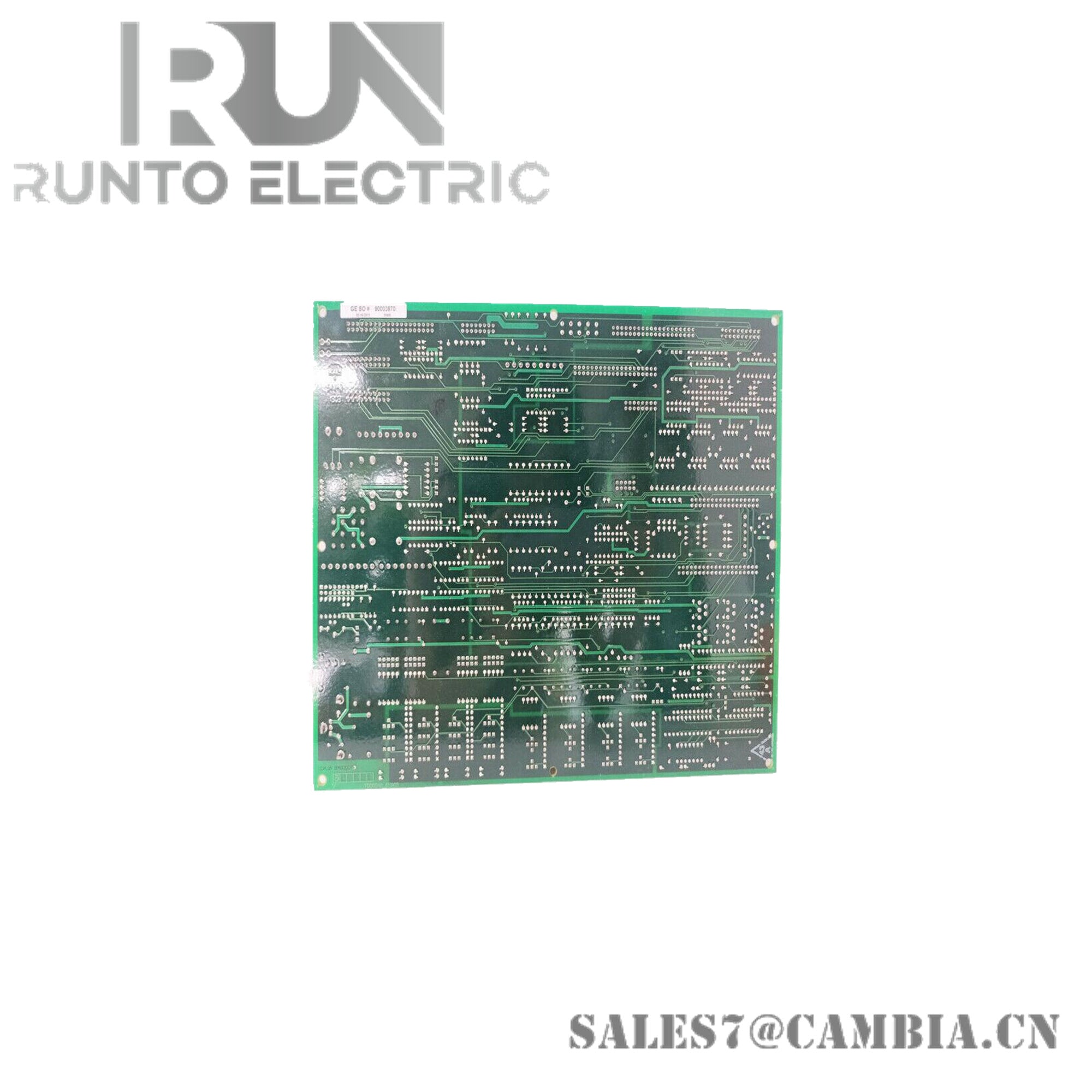

GE DS200TCQAG1BHF Analog Input/Output Board

Description

The GE DS200TCQAG1BHF is an analog input/output board used in the Mark V Series of turbine control systems. It serves as a key interface between analog field signals and the control processor, enabling precise monitoring and control of industrial processes.

Specifications

• Model Number: DS200TCQAG1BHF
• Series: GE Mark V
• Functional Abbreviation: TCQA
• PCB Coating: Normal coating
• Connectors:
  • 4 × 34-pin
  • 2 × 40-pin
• Indicators: 6 LEDs (diagnostic and fault status)
• Mounting: 6-hole cabinet installation with screws and washers
• Compatible Core: <R> Core
• Revision Info:
  • Functional Revision: H
  • Artwork Revision: F
• Weight: Approx. 0.9 kg
• Operating Environment: Industrial cabinet with proper grounding and shielding
• Manufacturer: GE Boards & Turbine Control

Features

• Analog Signal Interface: Handles multiple analog inputs and outputs for turbine control
• Diagnostic LEDs: Visual indicators for fault detection and system health
• Modular Design: Easily replaceable within the Mark V rack system
• Manual Jumpers: Hardware configurable for system-specific settings
• High Reliability: Designed for continuous operation in critical control environments
• Installation Safety: Guidelines provided to prevent damage from loose metal parts during mounting
