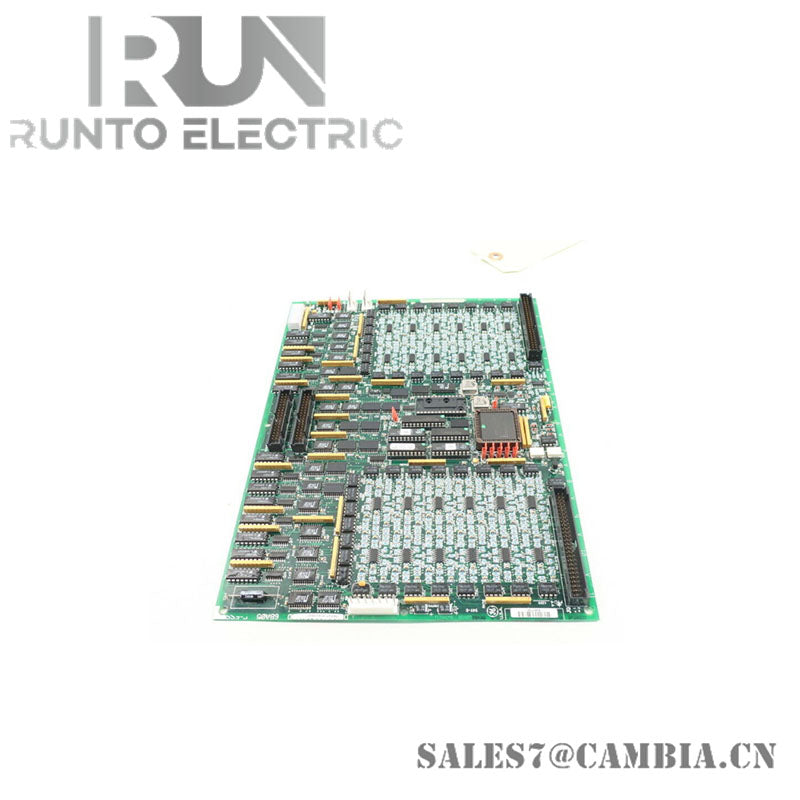

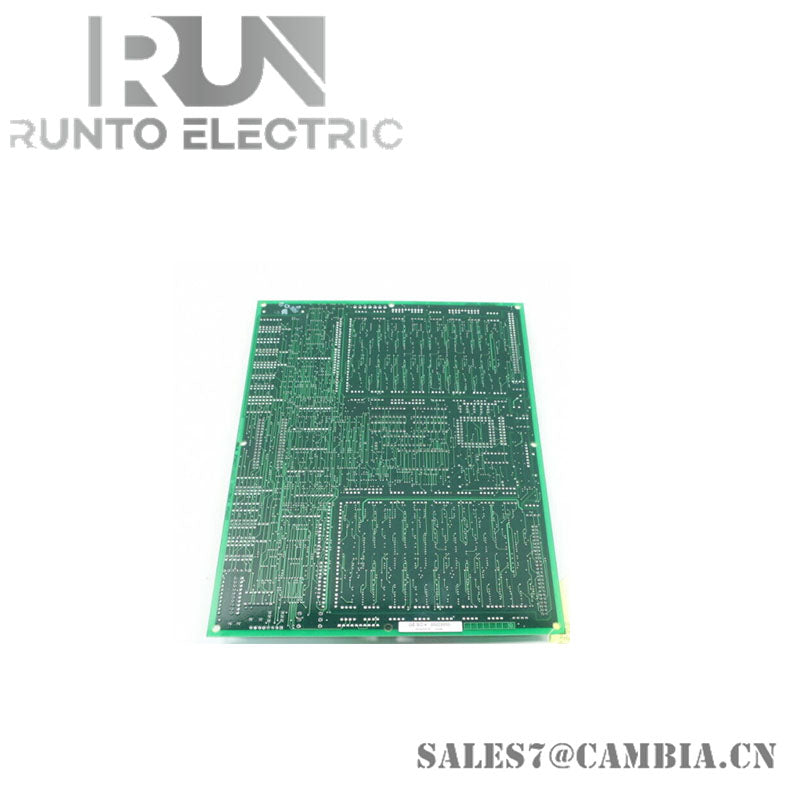

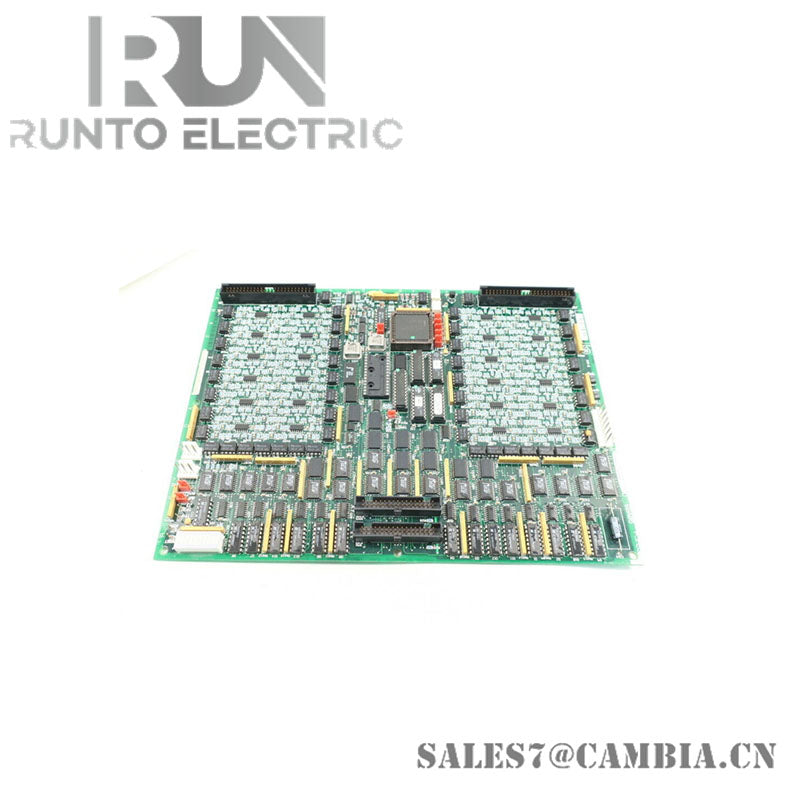

GE DS200TCTLG1ABB Turbine Reheat Board

Description

The DS200TCTLG1ABB is a component designed by General Electric for the control and management systems of steam, wind, and gas turbine automated drive assemblies. It is a critical part of the master trip circuit and the protection core within the Mark V Series automated drive assembly.

Features

• Patented Speedtronic Control System Technology: This component is part of GE's advanced Speedtronic control system.
• Primary and Emergency Trip Relays: Includes at least two sets of primary trip relays (PTR1 & PTR2) and three sets of emergency trip rela(ETR1, ETR2).
• Auxiliary Control Outputs: Features four auxiliary control outputs:
  • Oil Test Solenoid
  • Mechanical Lockout Solenoid
  • Oil Reset Solenoid Valve
  • Electrical Lockout Solenoid
• Comprehensive Testing Capabilities: Supports various tests, including:
  • Actual electrical overspeed trip test
  • Mechanical trip piston test
  • Actual mechanical overspeed trip test
  • TMR cross trip test
  • Electrical overspeed trip test (online and offline)
  • Electrical trip test
  • Emergency overspeed cross trip test

Specifications

• OEM: GE General Electric
• Product Series: Mark V
• Functional Part Number: DS200TCTLG1ABB
• Functional Description: ST TMR Large Reheat Board
• Functional Acronym: TCTL
• PCB Coating Style: Normal Coating
• 1st Functional Revision: A
