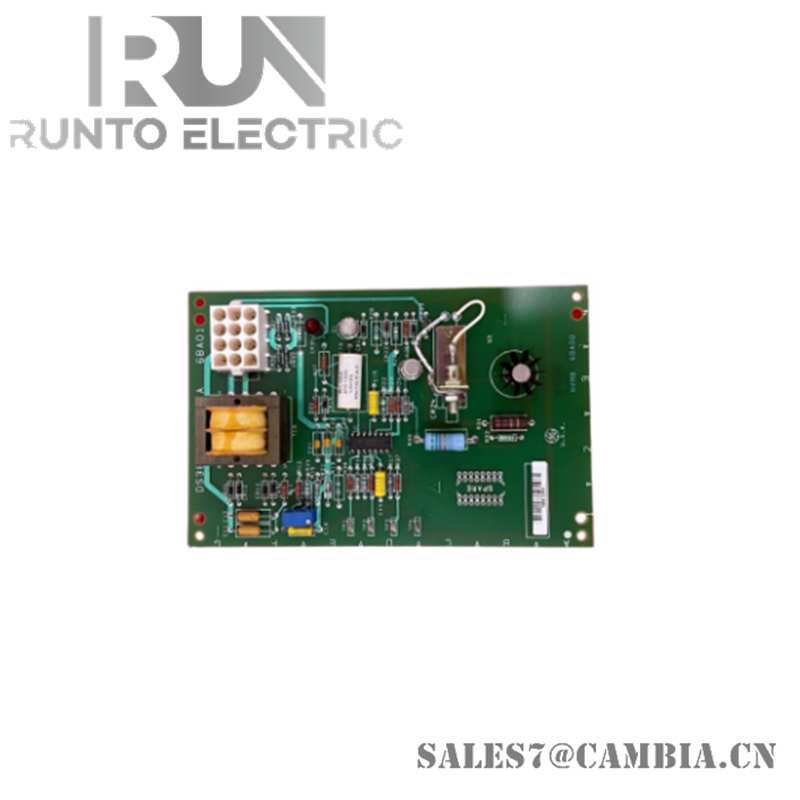

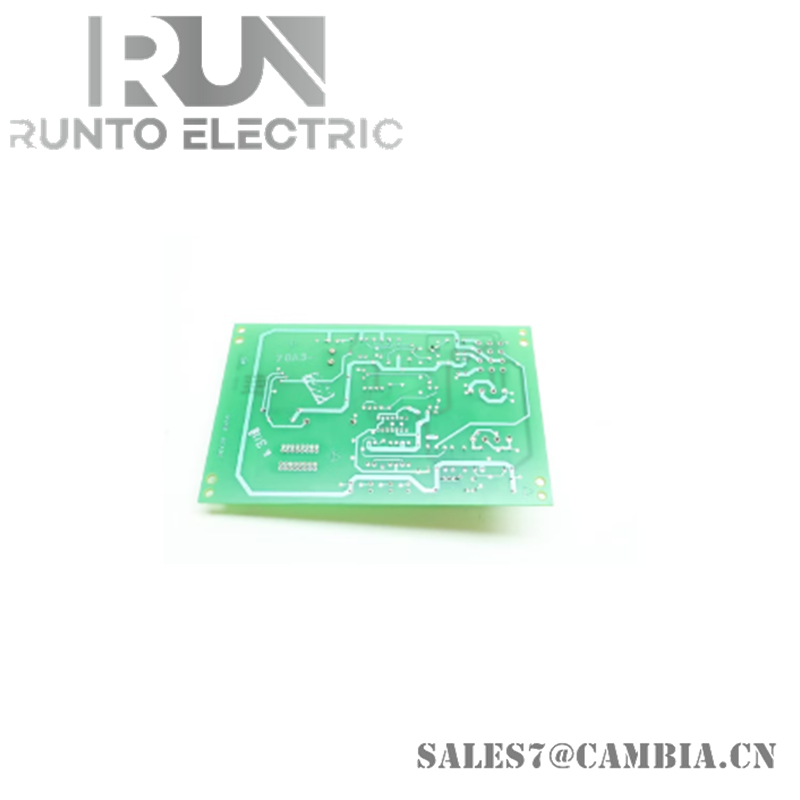

GE DS3800NVMB1A1A Voltage Monitor Board

Features and Specifications:

• Function:
  • Manages the operation of a gas turbine, which is a crucial energy source globally.
• Components:
  • Diodes: Eight ashen diodes for directing current flow and protecting against voltage spikes.
  • LEDs:
    • Six LEDs: Four crimson and two translucent, which are used for status indication and diagnostics.
  • Ports: Seven masculine ports for connecting to other circuit boards, facilitating integration within the control system.
  • Resistors: Sixteen resistors to regulate and limit current flow at specific points on the board.
  • Relays: Four black relays, adjustable for controlling the energy intake.
  • Capacitors: Twelve capacitors, including:
    • Four small yellow capacitors
    • Four metal capacitors
    • Four long black capacitors, all used to store and manage electrical energy.

Key Aspects:

• Relays:

  • These components manage the amount of energy the board can handle. Each relay can be adjusted to control the energy flow.

• Resistors:

  • They help in controlling the current flow to various components, with their capacity indicated by colored bands.

• Capacitors:

  • They store and release energy as needed, which helps in smoothing out voltage fluctuations and maintaining stable operation.
