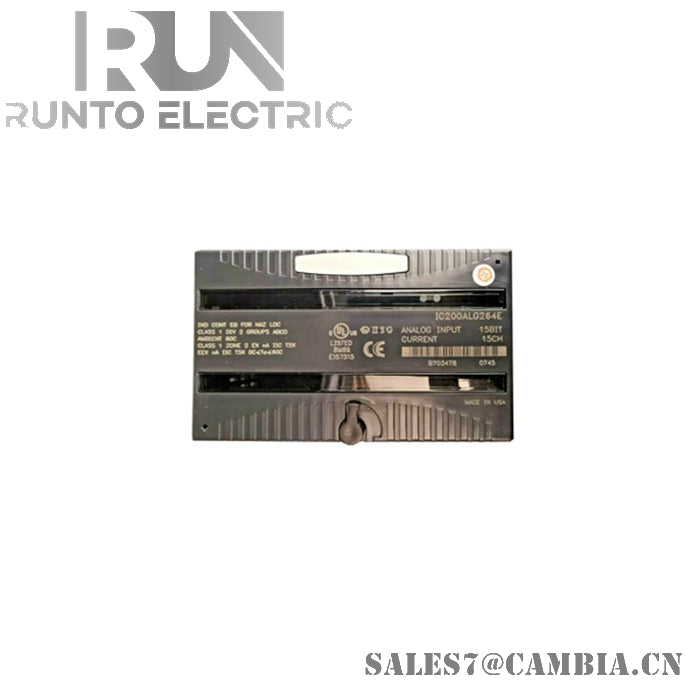

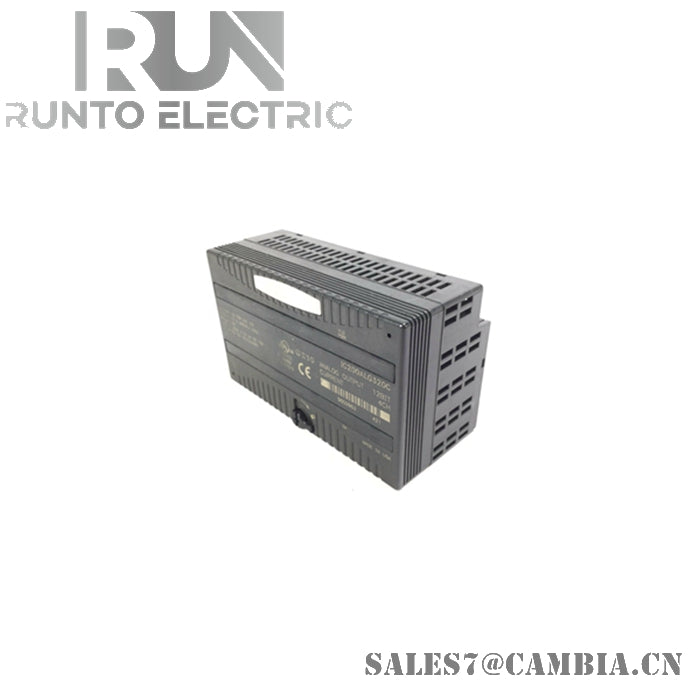

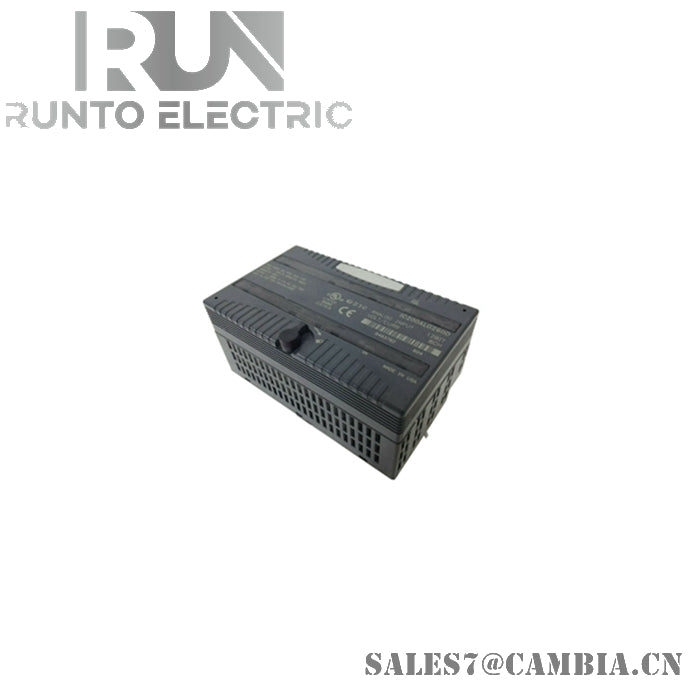

GE Fanuc IC200ALG264 Analog Input Module

Description

The IC200ALG264 module is part of the VersaMax I/O family, offering 15 single-ended analog input channels. It supports 4-20mA and 0-20mA input signals, making it ideal for process control and monitoring.

Specifications

• Number of Channels: 15 single-ended inputs
• Input Range: 4-20mA (default) or 0-20mA (jumper selectable)
• Resolution: 15-bit
• Update Rate: 7.5 ms
• Input Impedance: 100 Ohms
• Accuracy: ±0.3% typical, ±0.5% maximum of full scale
• Isolation Voltage: 250V AC continuous, 1500V AC for 1 minute
• Power Consumption: 100mA (backplane)
• Operating Temperature: 0°C to +60°C

Features

• High-resolution 15-bit analog-to-digital conversion for precise signal processing
• Jumper-selectable input range for flexible configuration
• Built-in diagnostics for internal power loss and open wire detection
• LED indicators for module status and fault reporting
• Compact design for space-efficient installations
• Seamless integration with VersaMax PLC systems
