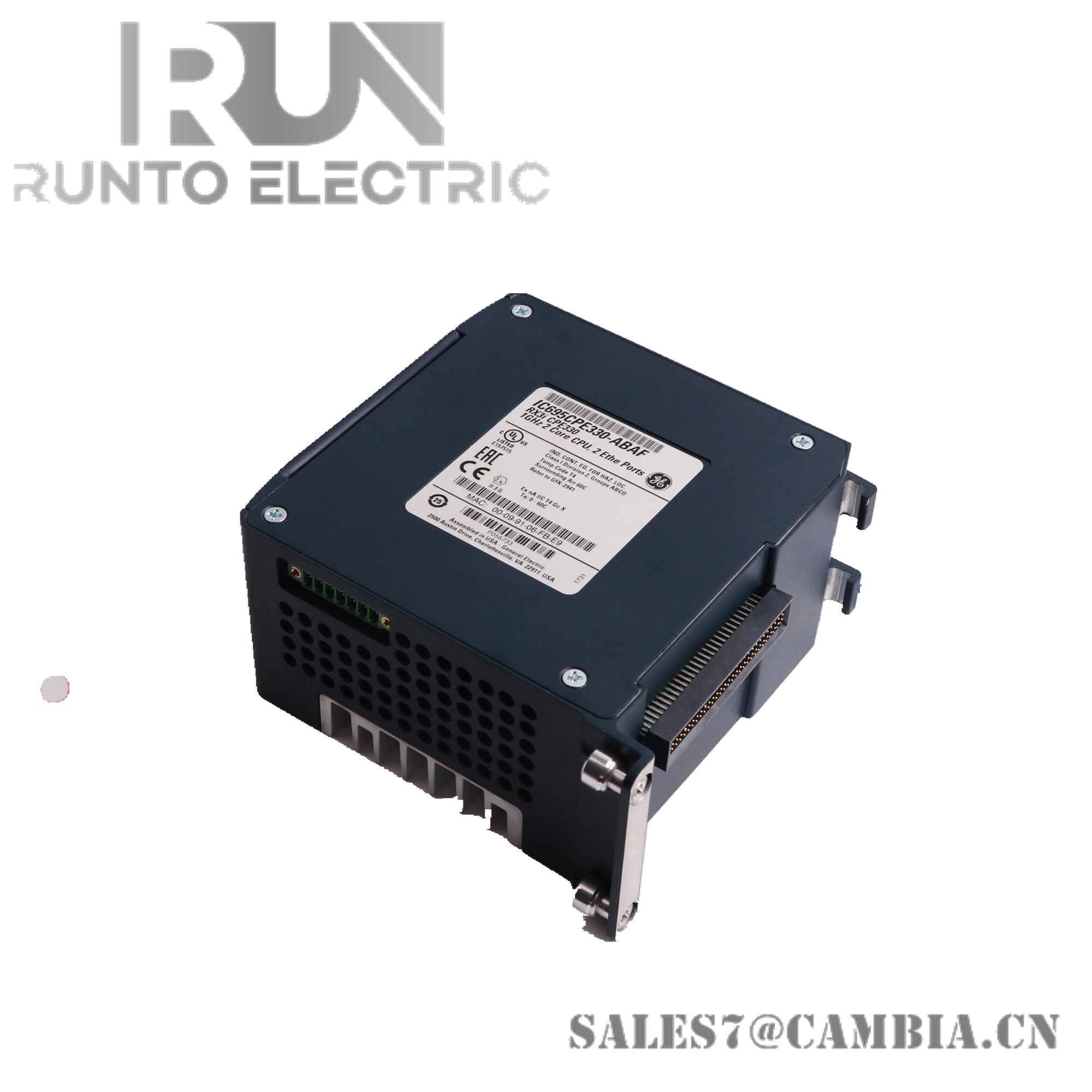

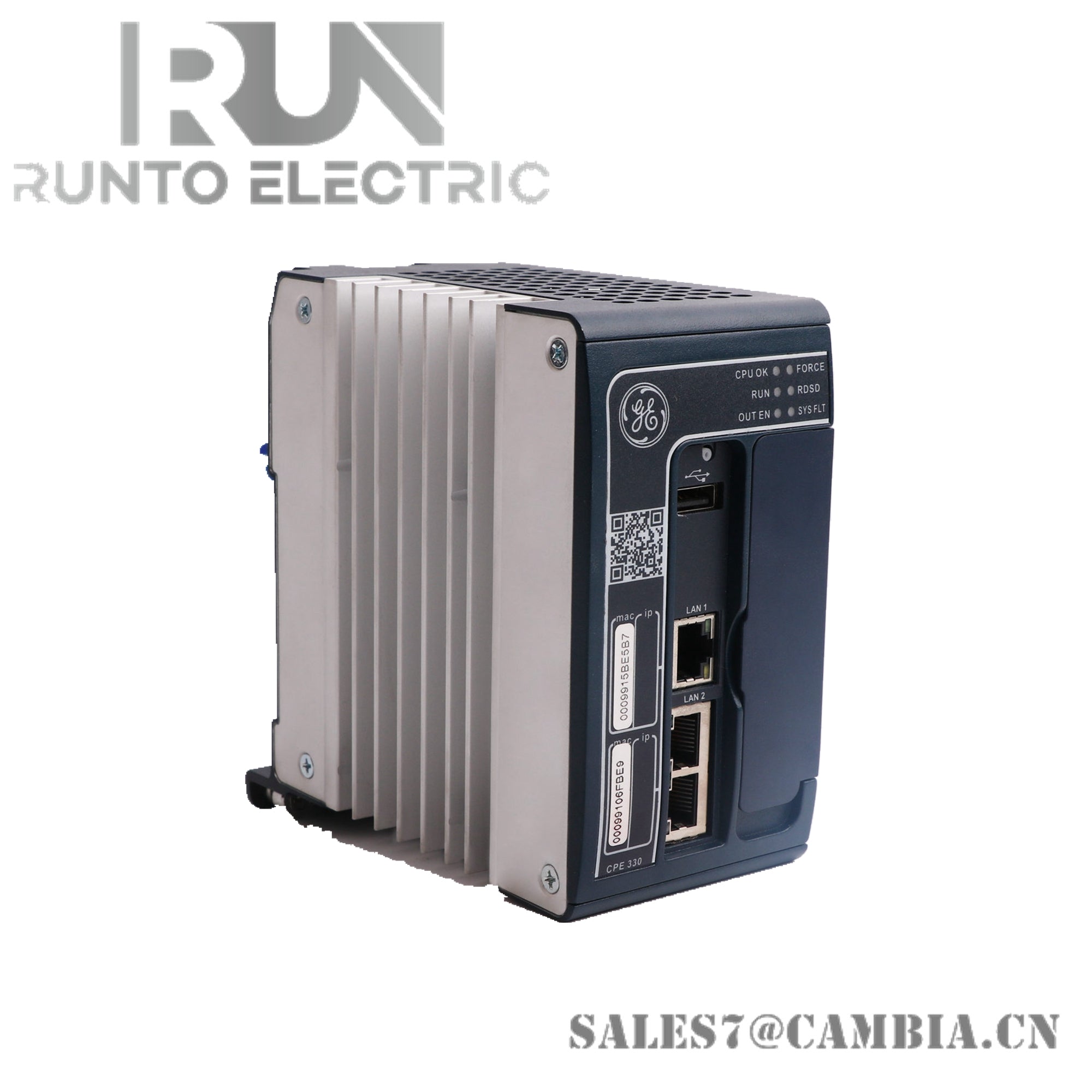

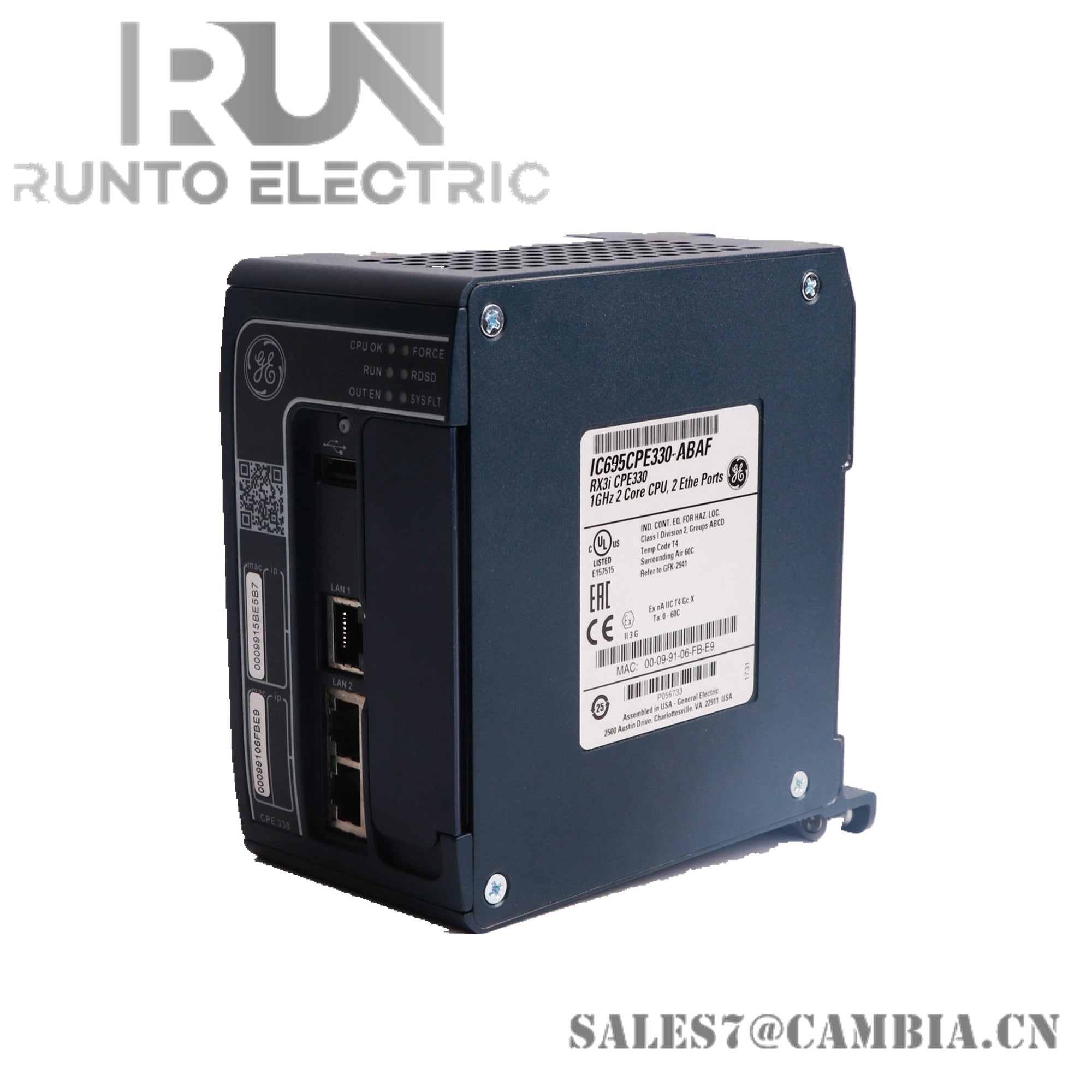

GE Fanuc IC695CPE330 RX3i CPU Module

Description

The GE Fanuc IC695CPE330 is a high-performance CPU module from the PACSystems RX3i series. It delivers real-time control and advanced networking capabilities for complex industrial automation tasks, supporting both discrete and process applications.

Specifications

• Model: IC695CPE330
• Series: PACSystems RX3i
• Processor: 1 GHz Intel Atom
• Memory: 64 MB RAM, 64 MB non-volatile flash
• Programming Software: Proficy Machine Edition
• Communication Ports:
  • Dual Ethernet (10/100/1000 Mbps)
  • RS-232 serial port
• Protocols Supported: Modbus TCP/IP, SRTP, EGD
• Backplane Compatibility: RX3i universal backplane
• Operating Temperature: 0°C to +60°C
• Power Requirements: 18–30 VDC

Features

• High-Speed Processing: 1 GHz CPU for fast logic execution and data handling
• Dual Ethernet Ports: Supports redundant or segmented network configurations
• Real-Time Control: Ideal for time-critical automation tasks
• Flexible Programming: Compatible with ladder logic, structured text, and function block diagrams
• Integrated Security: Password protection and secure firmware updates
• Diagnostics & Monitoring: Built-in tools for system health and performance tracking
• Modular Expansion: Supports wide range of I/O and specialty modules
