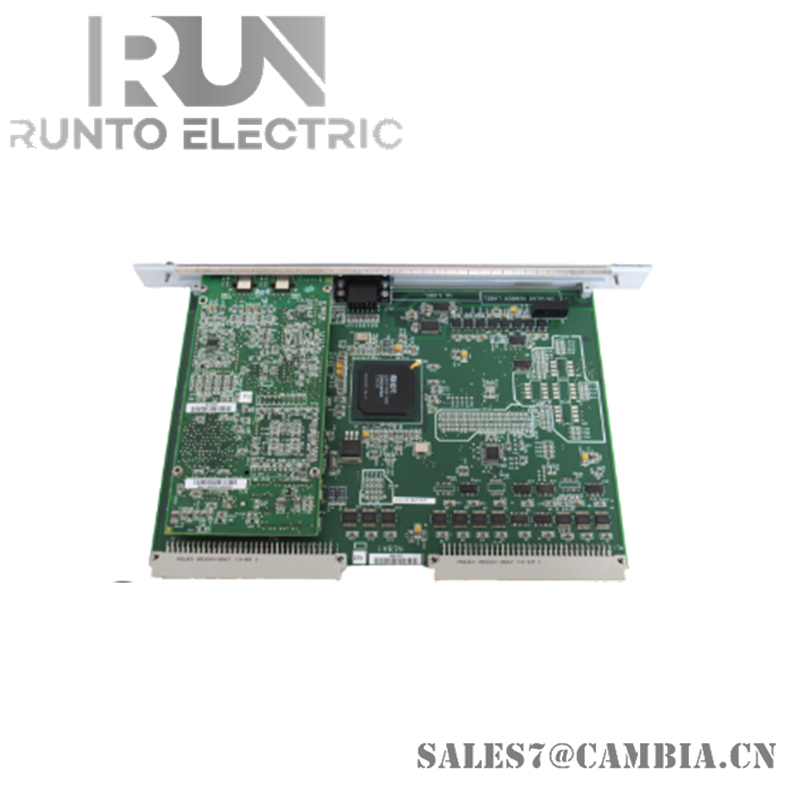

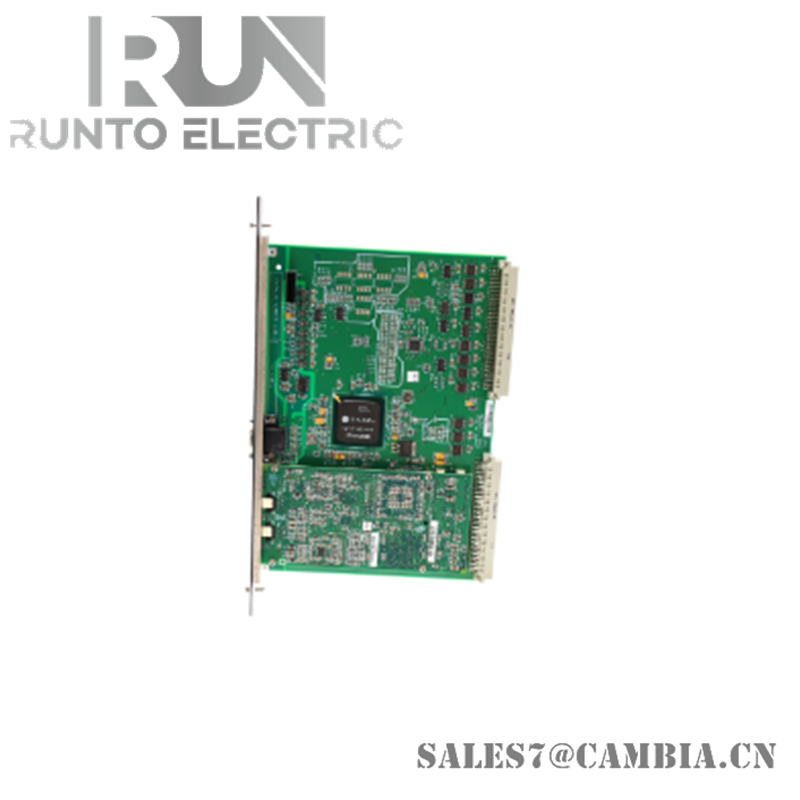

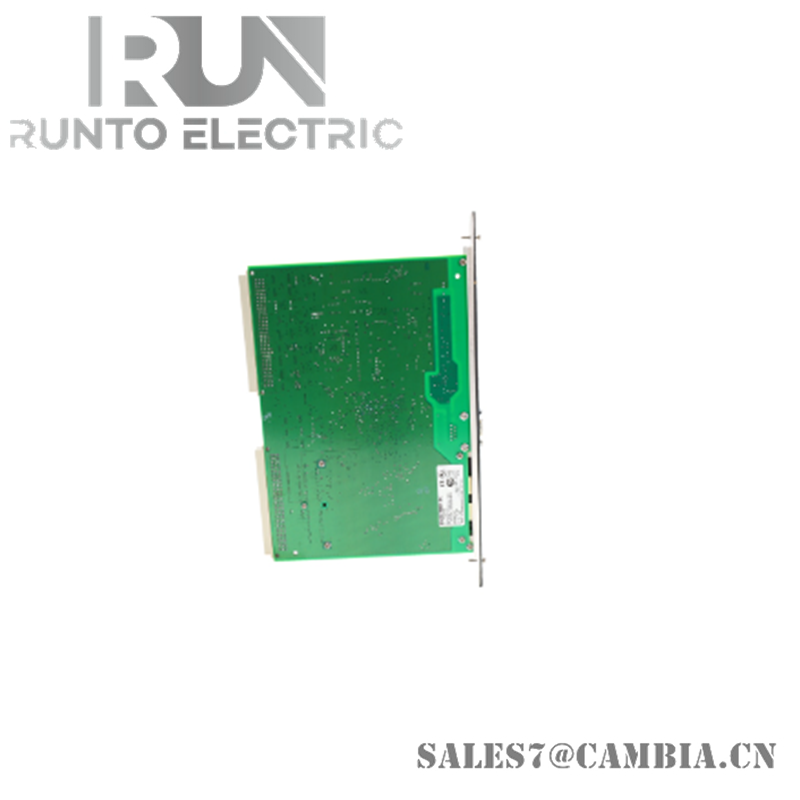

GE Fanuc IC698ETM001 RX7i Standalone Ethernet Interface Module

Description：

The IC698ETM001 module connects a PACSystems RX7i controller to an Ethernet network, facilitating communication with other PACSystems equipment, Series 90, and VersaMax controllers. It supports high-performance Ethernet communication, making it crucial for data exchange, remote I/O implementation, and interaction with visualization systems and third-party software.

Features:

• Two Ethernet Ports: Supports 10/100 Mbps communication rate with auto-sensing capability.
• Protocols Supported: TCP/IP, SRTP, Modbus TCP, and Ethernet Global Data (EGD).
• Daisy Chaining: Supports linear, star, and ring topologies.
• Redundant IP Address Support: Ensures reliable network communication.
• LED Indicators: Provides status updates for module operation and communication activities.

Specifications:

• Manufacturer: GE Fanuc / Emerson Automation
• Model Number: IC698ETM001
• Ethernet Processing Speed: 200 MHz
• Operating Voltage: +5 VDC
• Current Drain: 1.5 A (max)
• Operating Temperature: 0°C to +60°C
• Serial Port: RS-232 DCE, 1200 - 115200 bps, 9-pin female D-connector
• Dimensions: Standard module size for RX7i systems
• Weight: Approximately 0.5 kg
