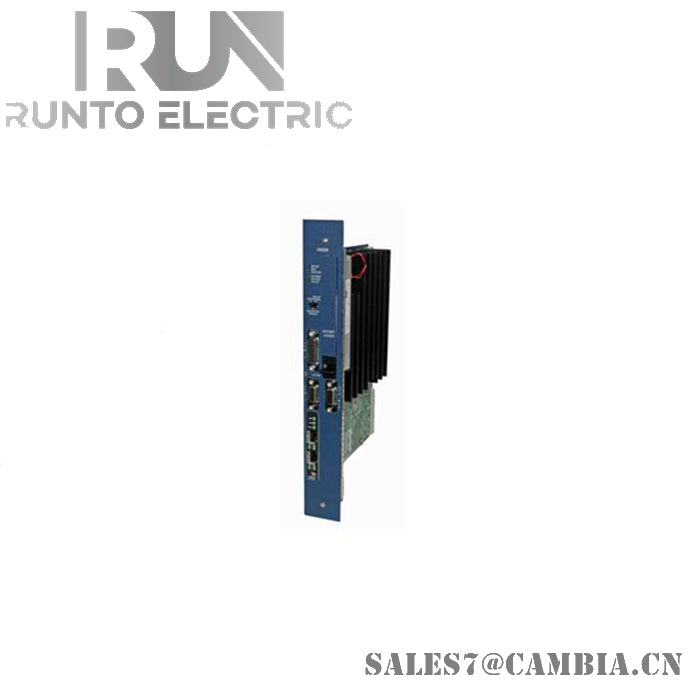

GE Fanuc IC698PSA100 Power Supply Module

Description

The IC698PSA100 is a versatile power supply unit designed for industrial control systems. It delivers +5 VDC, +12 VDC, and -12 VDC outputs and provides logic level sequencing signals to modules installed on the backplane. This unit is designed to fit directly into slot 0 of the main rack, offering efficient power management and system integration.

Key Features and Specifications

• Input Voltage Range: Operates from 85 to 264 VAC or 100 to 150 VDC
• Power Rating: Nominal input power of 125 Watts
• Output Voltages:
  • +5 VDC output: Up to 20 amps
  • +12 VDC output: Up to 2 amps
  • -12 VDC output: Up to 1 amp
• Protection: Includes overcurrent, overtemperature, and overvoltage protection
• Power Supply Output: Capable of withstanding up to one AC input line cycle without loss of output power
• Total Output Power: 100 watts at ambient temperatures of 0 to 60ºC without the need for forced air cooling
• Mounting: Simple slide-in rack mount construction for easy installation
• Indicators: Equipped with LED indicators to monitor field and output status
