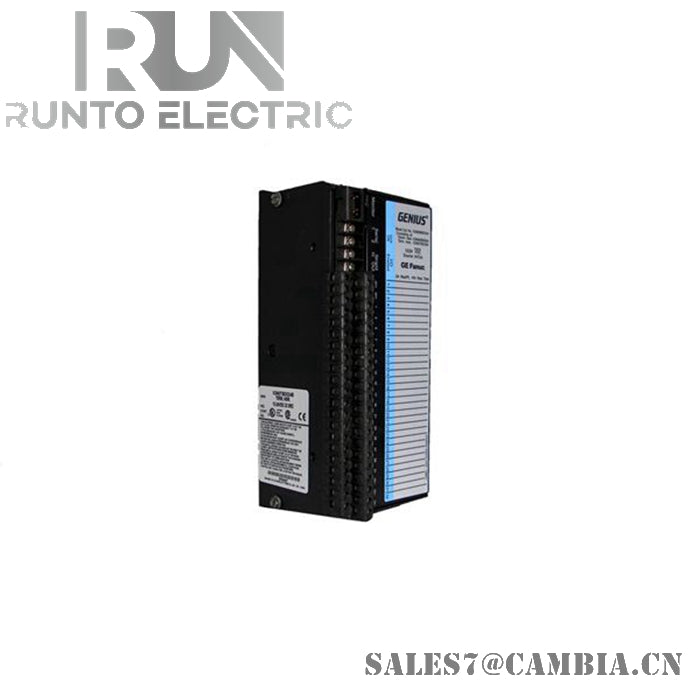

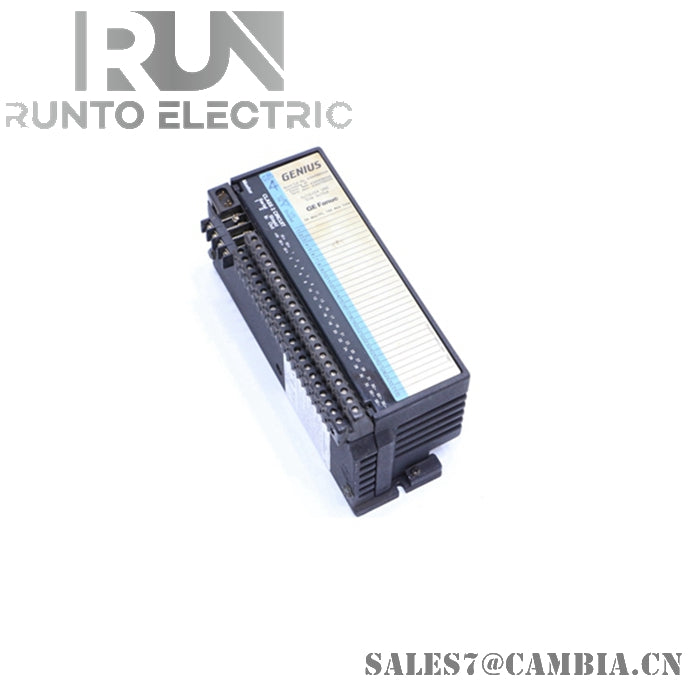

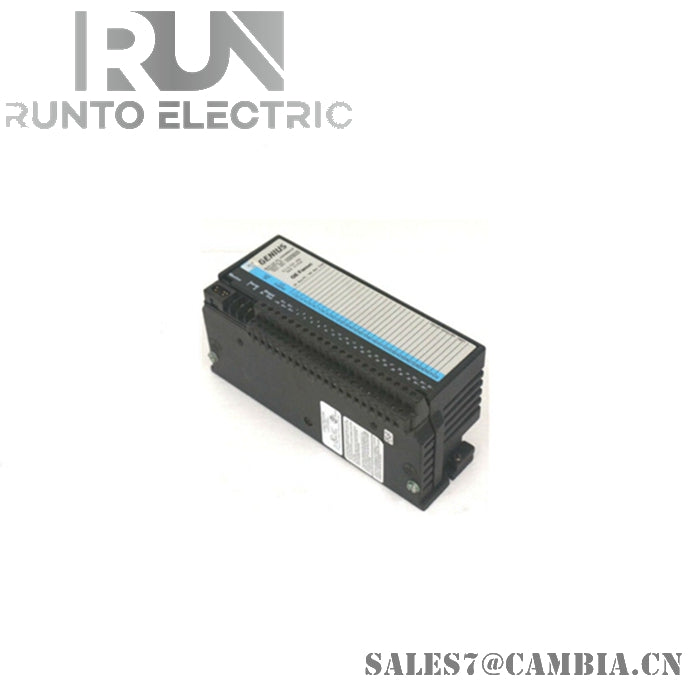

GE IC660EBD024 Genius Electric Discrete Output Module

Description

The GE IC660EBD024 is a high-performance discrete output module from the Genius I/O series, designed to interface programmable logic controllers (PLCs) with field devices such as solenoids, relays, and indicator lights. It ensures precise control and reliable operation in industrial automation systems.

Specifications

• Model Number: IC660EBD024
• Manufacturer: GE Fanuc (General Electric)
• Product Type: Genius Electric Discrete Output Module
• Output Channels: 16 isolated discrete outputs
• Output Voltage: 24 VDC
• Output Type: Sinking configuration
• Isolation Voltage: 1500 Vrms (channel-to-backplane)
• Bus Type: Genius I/O Bus
• Data Transfer Rate: 153.6 kbps
• Max Bus Length: 750 meters
• Max Devices per Bus: 32 modules
• Power Consumption: 1.2 W typical
• Operating Temperature: 0°C to +60°C
• Mounting Type: DIN rail (35 mm)
• Dimensions: 60 mm x 110 mm x 75 mm
• Certifications: UL, CE, cULus
• Country of Origin: USA

Features

• High Channel Density: 16 discrete outputs for efficient control
• Robust Isolation: 1500 Vrms protection against voltage spikes and EMI
• Reliable Communication: Genius bus interface with fast data transfer
• Diagnostic LEDs: Power, bus status, and fault indicators for quick troubleshooting
• Automatic Bus Termination: Simplifies configuration and reduces errors
• Compact Design: Saves space in control cabinets
• Legacy System Support: Ideal for maintaining existing Genius I/O installations
• Industrial Durability: Withstands vibration, humidity, and temperature extremes
