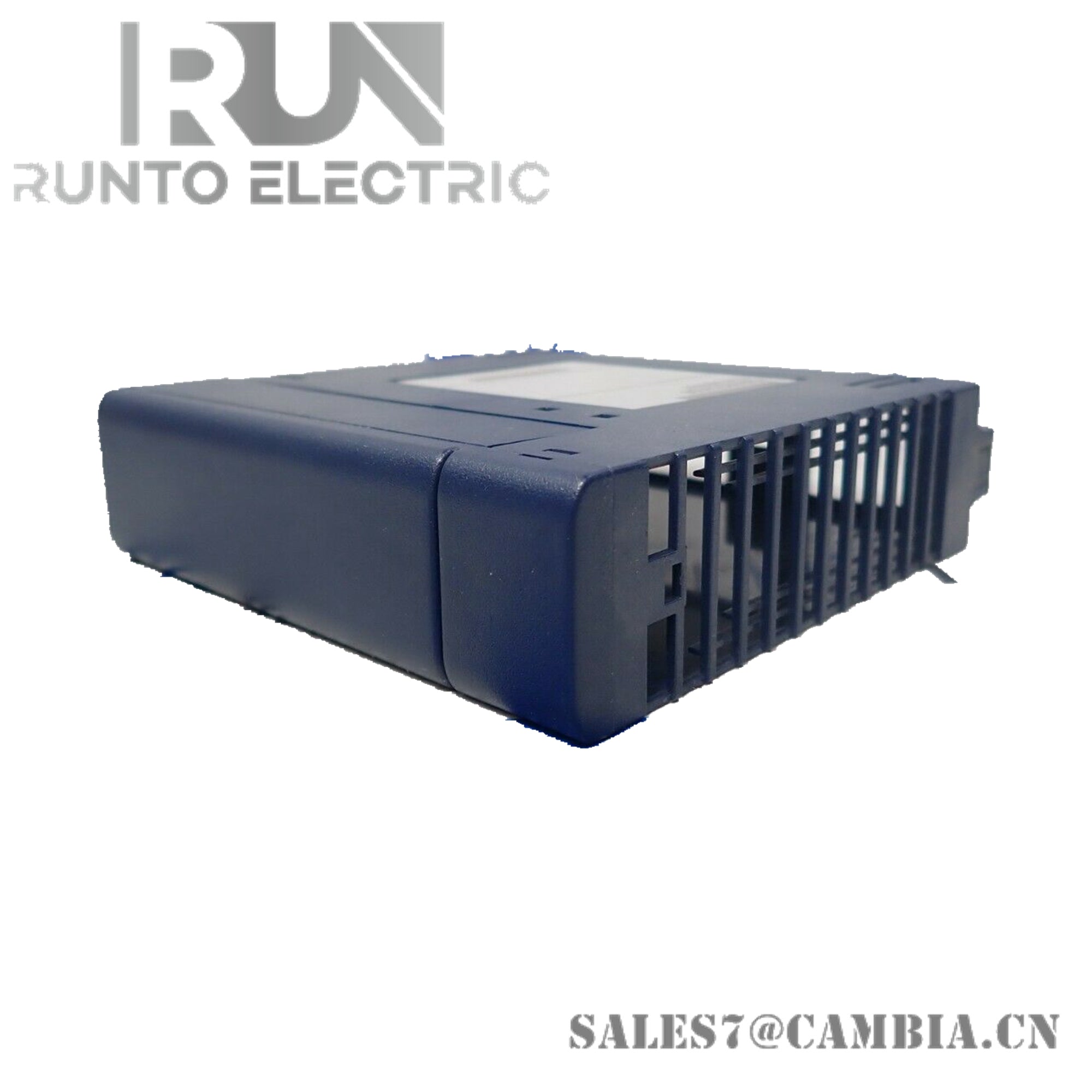

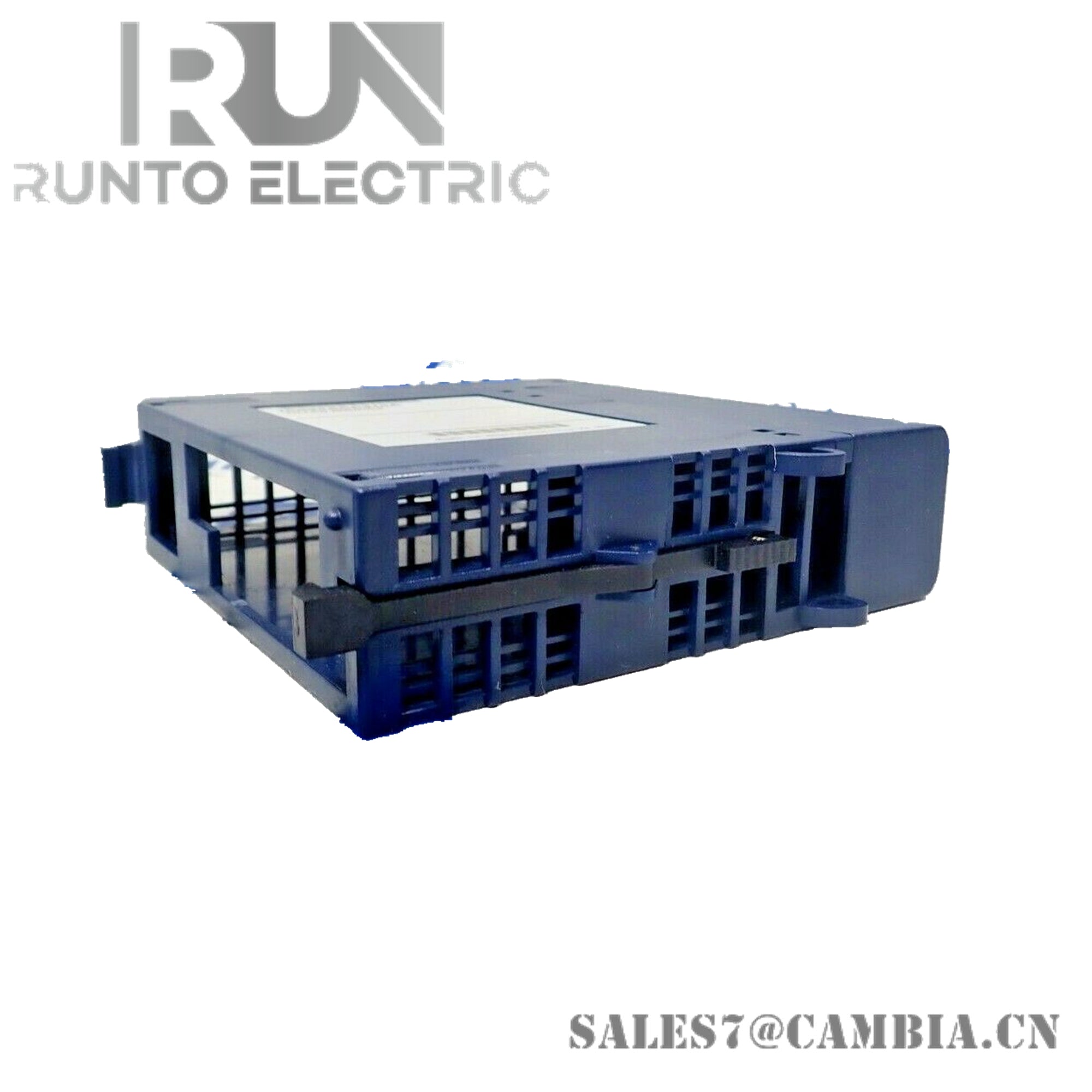

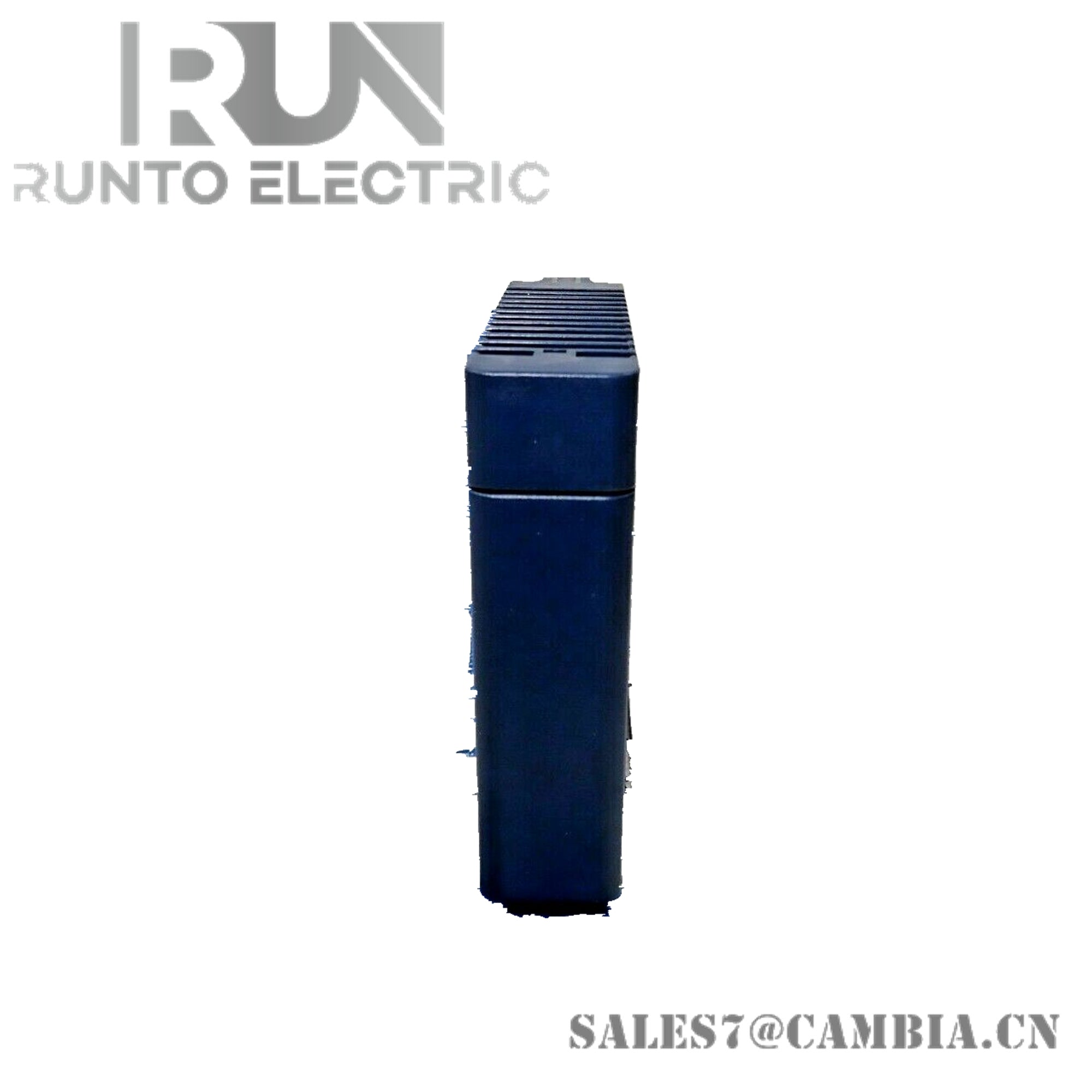

GE IC694MDL655 Digital Input Module

Description

This IC694MDL655 module is engineered to handle digital input signals with high reliability and efficiency. It is ideal for mission-critical discrete and process control applications, offering advanced diagnostics and flexibility.

Specifications

• Type: Digital Input Module
• Number of Inputs: 32 discrete input points
• Input Voltage: 24 VDC (range: 20–30 VDC)
• Logic Type: Positive/Negative Logic
• Response Time: 2 ms (On/Off)
• Backplane Current Consumption: 300 mA at 5 VDC
• Approvals: UL 508, CSA C22.2 No. 142M1987, Class I, Division 2 (Groups A, B, C, D)
• Mounting: Panel or DIN Rail
• Operating Temperature: -40°C to +60°C

Features

• High-Speed Processing: Ensures rapid response for critical applications.
• Advanced Diagnostics: Provides detailed fault detection and system monitoring.
• Flexible Logic: Supports both positive and negative logic configurations.
• Durable Design: Built to withstand harsh industrial environments.
• LED Indicators: Displays the ON/OFF status of each input point for easy monitoring.
• Isolated Groups: Inputs are divided into isolated groups for enhanced safety and reliability.
