General Electric

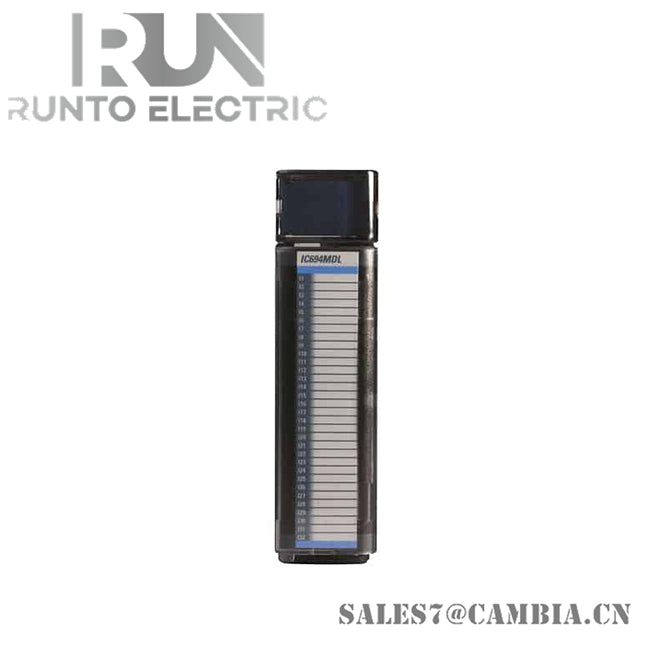

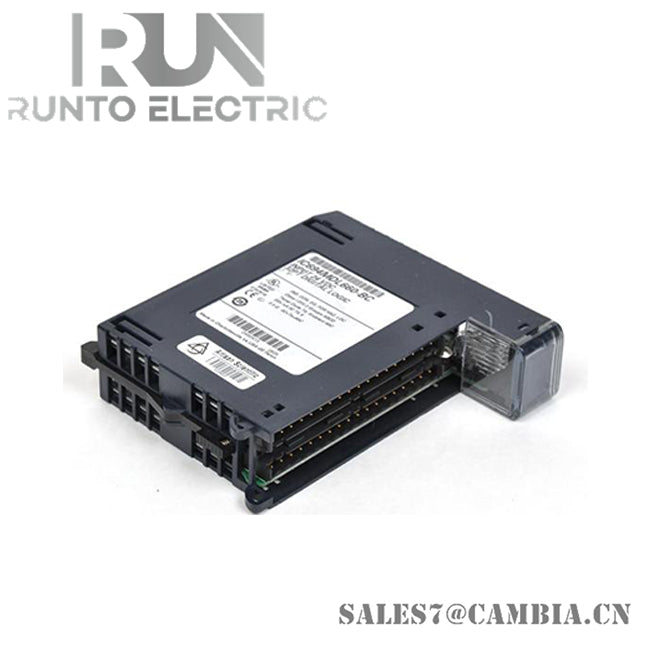

GE IC694MDL660 24V DC Positive/Negative Logic Input Module
SKU: IC694MDL660
In stock
Description

Description

This IC694MDL660 module provides 32 discrete input points, arranged in four isolated groups of eight. It is engineered for high-speed and reliable input processing, making it suitable for mission-critical applications.

Specifications

  • Model Number: IC694MDL660

  • Manufacturer: GE (General Electric)

  • Type: DC Voltage Input Module

  • Input Voltage Range: 0–30 VDC

  • Rated Voltage: 24 VDC

  • Input Points: 32 (four isolated groups of 8 inputs)

  • Input Current: 7.0 mA per point (typical) at rated voltage

  • On-State Voltage: 11.5–30 VDC

  • Off-State Voltage: 0–5 VDC

  • Response Time: Selectable filter times (0.5 ms to 100 ms)

  • Backplane Current Consumption: 300 mA at 5 VDC

  • Isolation:

    • Field to Backplane: 250 VAC continuous, 1500 VAC for one minute

    • Group to Group: 250 VAC continuous, 1500 VAC for one minute

Features

  • Selectable Input Filter Times: Allows customization of response times for specific applications.

  • LED Indicators: 32 green LEDs indicate the ON/OFF status of each input point.

  • Diagnostics: Reports terminal block presence to the RX3i CPU.

  • Compatibility: Works with RX3i CPUs (release 2.90 or later) and requires a terminal block (IC694TBB032 or IC694TBS032).

  • Durable Design: Built to withstand industrial environments with robust isolation and certifications.
