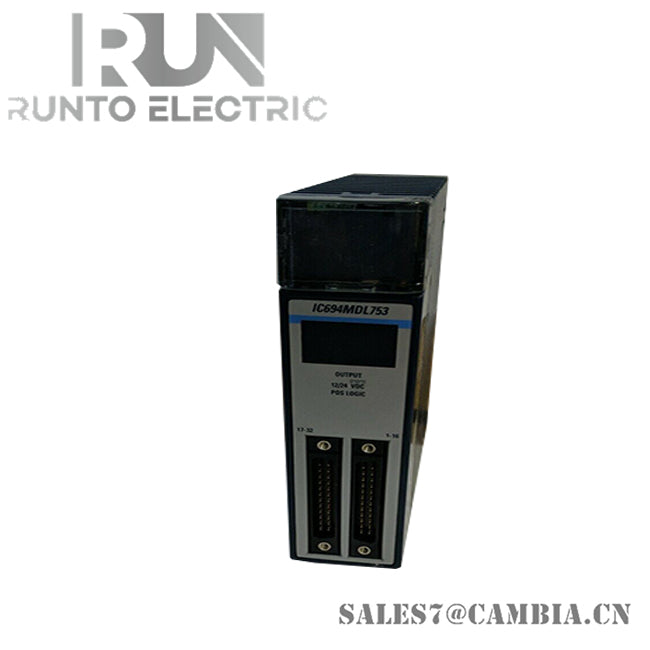

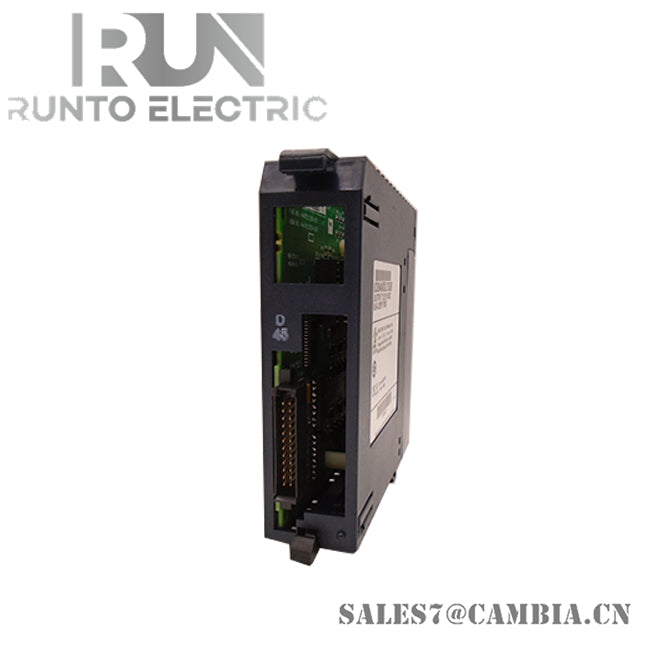

GE IC694MDL753 DC Voltage Output Module

Description

This IC694MDL753  module provides 32 discrete output points, arranged in four isolated groups of eight. It is engineered for high-speed and reliable output processing, making it suitable for mission-critical applications.

Specifications

• Model Number: IC694MDL753

• Manufacturer: GE (General Electric)

• Type: DC Voltage Output Module

• Output Voltage Range: 12–24 VDC

• Rated Voltage: 24 VDC

• Output Points: 32 (four isolated groups of 8 outputs)

• Output Current: 0.5 A per point, with a maximum of 4 A per group

• On-State Voltage Drop: 0.3 VDC

• Off-State Leakage Current: 0.1 mA (maximum)

• Response Time: 0.5 ms (maximum) for both ON and OFF states

• Backplane Current Consumption: 260 mA at 5 VDC

• Isolation:

  • Field to Backplane: 250 VAC continuous, 1500 VAC for one minute

  • Group to Group: 50 VAC continuous, 500 VAC for one minute

Features

• Positive Logic Outputs: Sourcing type outputs that switch loads on the positive side of the power supply.

• LED Indicators: 32 green LEDs indicate the ON/OFF status of each output point.

• Diagnostics: Includes basic fault detection and reporting.

• Durable Design: Built to withstand industrial environments with robust isolation and certifications.

• Applications: Ideal for controlling actuators, relays, and other devices in industrial automation systems.
