General Electric

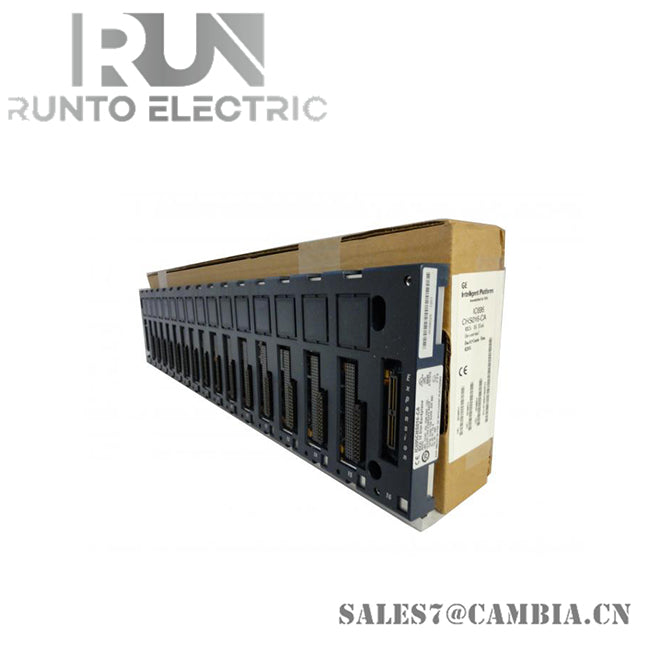

GE IC695CHS016 16-Slot Universal Backplane
SKU: IC695CHS016
In stock
Description

Description

The IC695CHS016 serves as a backplane for the RX3i PACSystem, supporting both PCI-based and serial I/O modules.It is part of the PACSystem RX3i series, which is known for its high performance and flexibility in industrial automation.

Specifications

  • Slots: 16 slots for module installation.

  • Bus Type: Dual-bus (PCI and serial).

  • Dimensions: 601.98 mm (W) x 141.5 mm (H) x 147.32 mm (D).

  • Power Requirements: 600 mA at 3.3 VDC and 240 mA at 5 VDC.

  • Weight: Approximately 2.06 kg.

  • Compatibility: Supports RX3i PCI-based modules and legacy Series 90-30 I/O modules.

Features

  • Hot Swap Capability: Modules can be replaced without shutting down the system, reducing downtime.

  • Dual-Bus Design: Ensures compatibility with both PCI and serial modules.

  • Durable Construction: Designed for industrial environments.

  • Ease of Installation: Includes features like slot numbering for easy configuration.
