General Electric

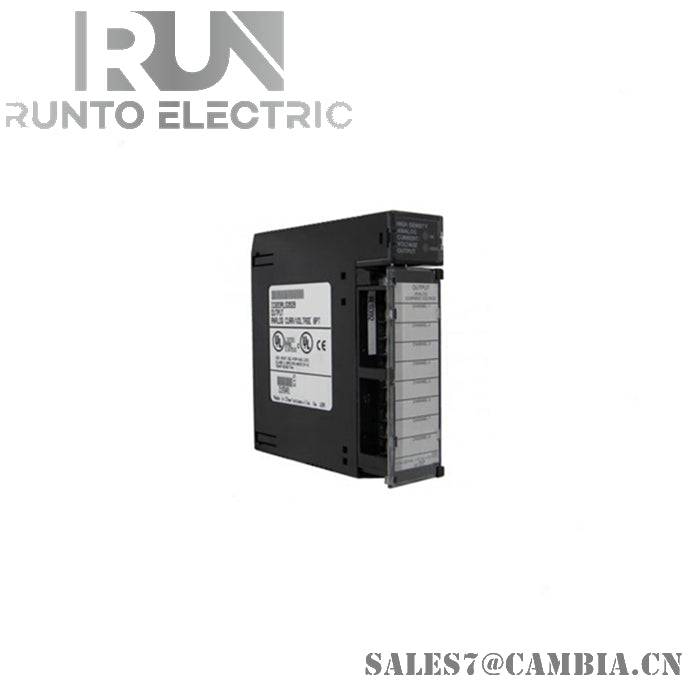

GE IC695LRE001 Serial Bus Transmitter Module
SKU: IC695LRE001
In stock
Description

Description

The IC695LRE001 module translates signal levels from the Universal Backplane to those required by Serial Expansion Backplanes. It is essential for expanding the RX3i system's capabilities, supporting both local and remote configurations.

Specifications

  • Type: Serial Bus Transmitter Module.

  • Compatibility: PACSystems RX3i Universal Backplane.

  • Power Consumption: 132 mA at 5V DC.

  • Maximum Cable Length:

    • 15 meters (50 feet) for Expansion Backplanes.

    • 213 meters (700 feet) for Remote Backplanes.

  • Data Rate: Effective rate of 500k bytes per second for remote backplanes.

  • Isolation: Non-isolated differential communications.

Features

  • LED Indicators: Two green LEDs for operating status and expansion link status.

  • Durability: Built for industrial environments with robust design.

  • Ease of Installation: Designed for the special expansion connector on the right end of the Universal Backplane.

  • Diagnostics: Provides fault detection for seamless operation
