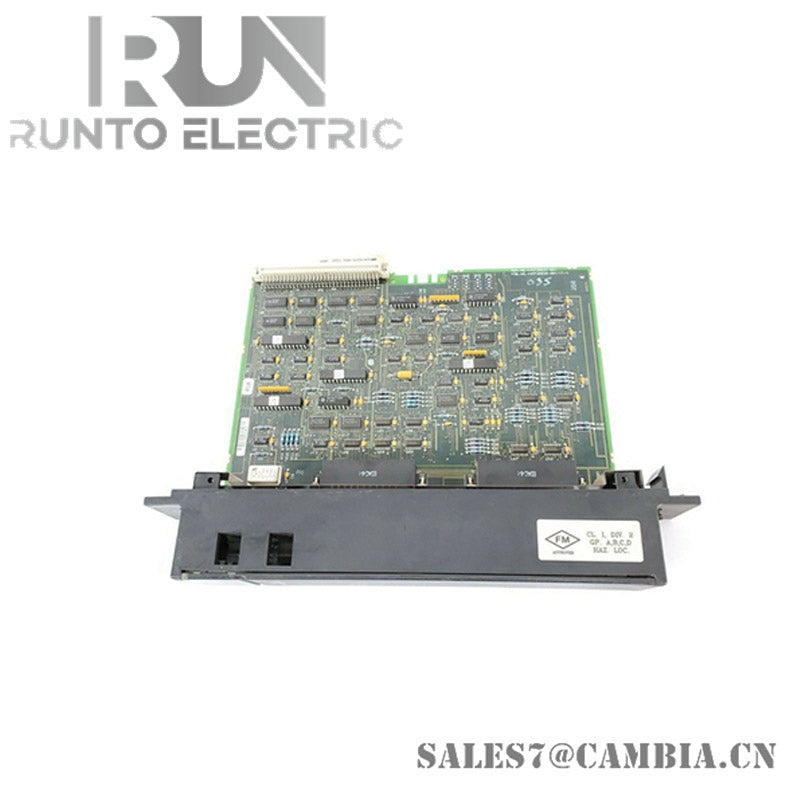

GE IC697BEM713 Series 90-70 Bus Transmitter Module

key features and specifications:

• Function: Allows expansion from the main CPU rack when more modules are required in a system than can be contained in the CPU rack. It supports up to 7 additional IC697 PLC racks.
• Communication: Provides a high-performance parallel interface to the programming device. Facilitates communication and data exchange with other devices through its supported bus type.
• Installation: Occupies a single slot and has two connectors. The top connector is for attachment to the programming device, and the bottom connector is for a daisy-chained arrangement through Bus Receiver Modules to expansion racks.
• LED Indicators: Three green LEDs provide status indication of each port and module status.
• Configuration: Must be configured into the IC697 PLC system using the MS-DOS or Windows programming software configuration function.
• Dimensions and Weight: Estimated shipping dimensions are 263 × 58 × 28 mm, and the weight is 4.3 kg.
• Country of Origin: United States of America.
