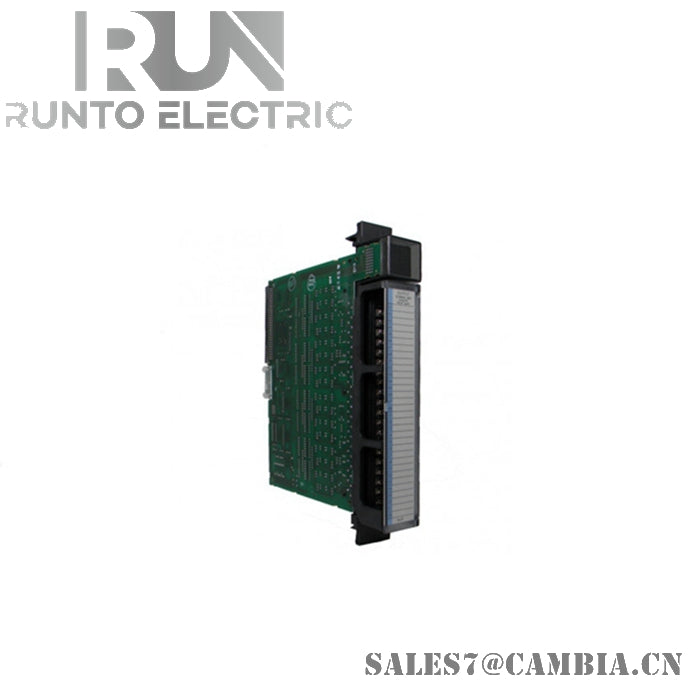

GE IC697MDL653 Series 90-70 Discrete Input Module

Specifications:

• Number of Points: 32 discrete input points, grouped into four isolated groups of eight points each. This grouping provides electrical isolation, preventing interference between different signals.
• Voltage Rating: Operates on a 24 Volts DC power supply.
• Input Filter: 20 milliseconds (ms) for noise filtering and signal debouncing, ensuring reliable signal detection by eliminating transient voltage spikes.

Features:

• Isolated Groups: Allows connecting inputs from different sources or phases of the AC power supply, preventing electrical interference and ensuring reliable signal detection.
• Compatibility with Proximity Sensors: Suitable for using various proximity sensors without requiring additional signal conditioning, simplifying system setup.
• LED Status Indicators: LEDs on the module display the on/off status of each input point for easy troubleshooting and monitoring of the system.

Applications:

• Monitoring limit switches, pushbuttons, and safety sensors for machine operation and safety.
• Detecting the presence or absence of objects on a conveyor belt for material handling.
• Reading the status of valves, cylinders, and other actuators for process control.
