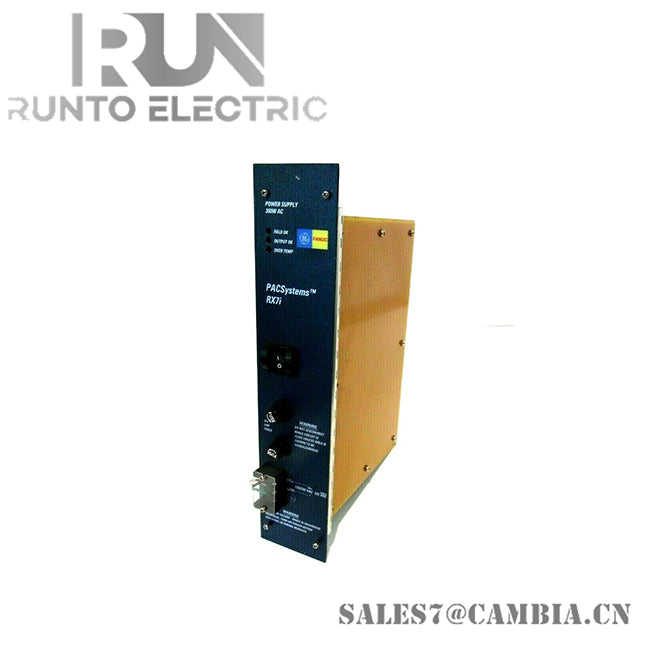

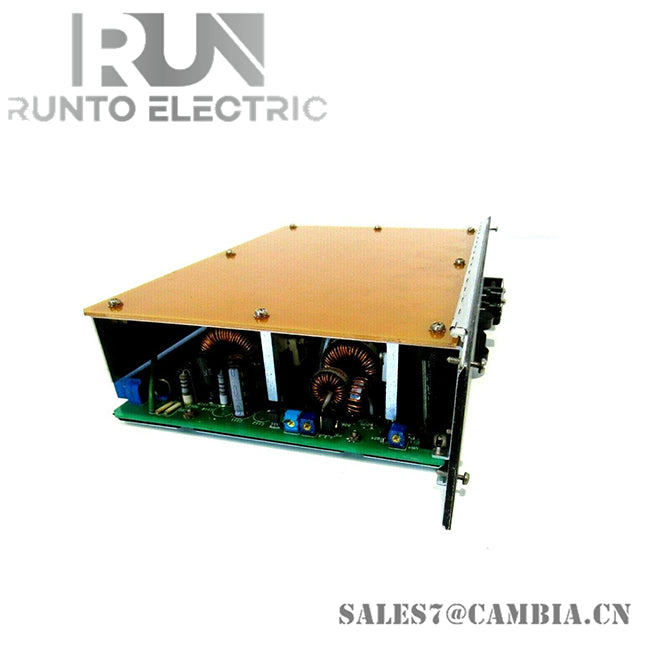

GE IC698PSA350 Power Supply Module

Description

The GE IC698PSA350 is a high-capacity power supply module from the PACSystems RX7i series. It is designed to provide reliable power to the RX7i PLC system, ensuring stable operation in industrial automation environments. This module is ideal for applications requiring high power output and robust performance.

Specifications

• Input Voltage Range: 85–264 VAC or 100–150 VDC
• Output Power: 350 watts across three outputs
• Output Voltages:
  • +5 VDC (up to 60 A)
  • +12 VDC (up to 12 A)
  • -12 VDC (up to 4 A)
• Frequency Range: 47–63 Hz
• Protection Features: Overcurrent, overvoltage, and overtemperature protection
• Installation: Slot-mounted in RX7i rack (slot 0)
• Cooling Requirement: Forced air cooling with a fan tray
• Operating Temperature Range: 0°C to +60°C

Features

• High Capacity: Provides up to 350 watts of power, suitable for large-scale PLC systems.
• Wide Voltage Input: Supports a broad range of input voltages for flexibility in power environments.
• Multiple Outputs: Supplies three output voltages to power various modules in the system.
• Hot-Swappable: Allows replacement without shutting down the system, minimizing downtime.
• Diagnostic Indicators: Equipped with LED indicators for status monitoring (e.g., Field OK, Output OK, Over Temp).
• Built-In Protection: Includes advanced protection mechanisms to ensure safe and reliable operation.
