GE IS200ACLEH1ACB Application Control Layer Module

Description

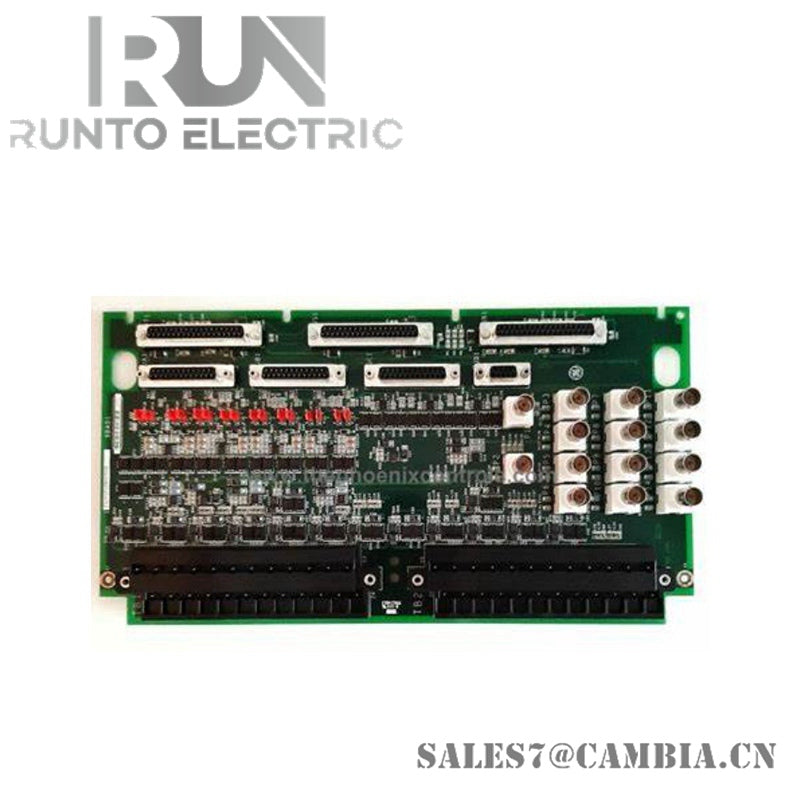

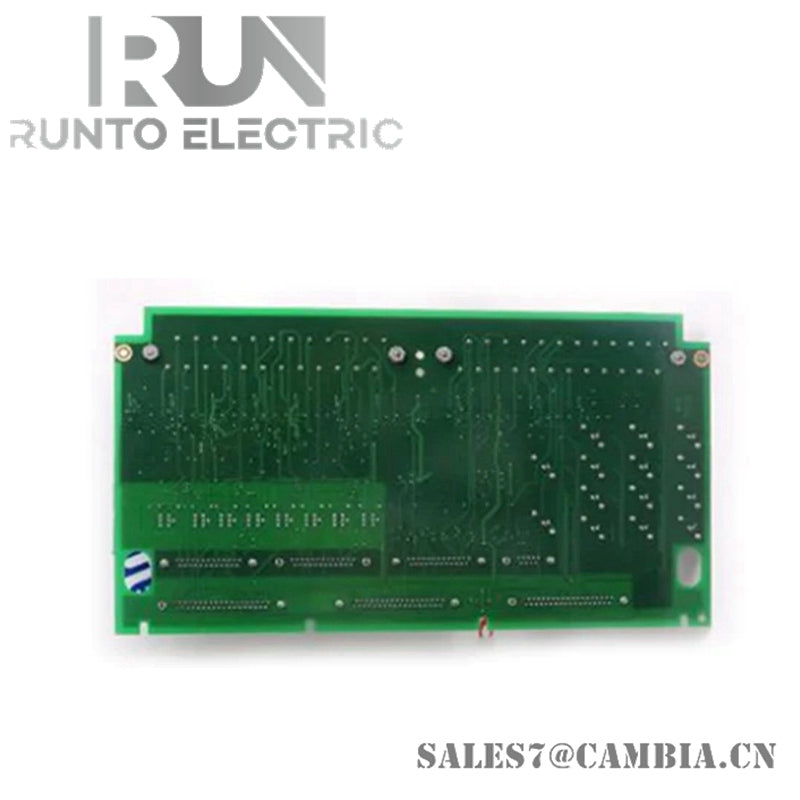

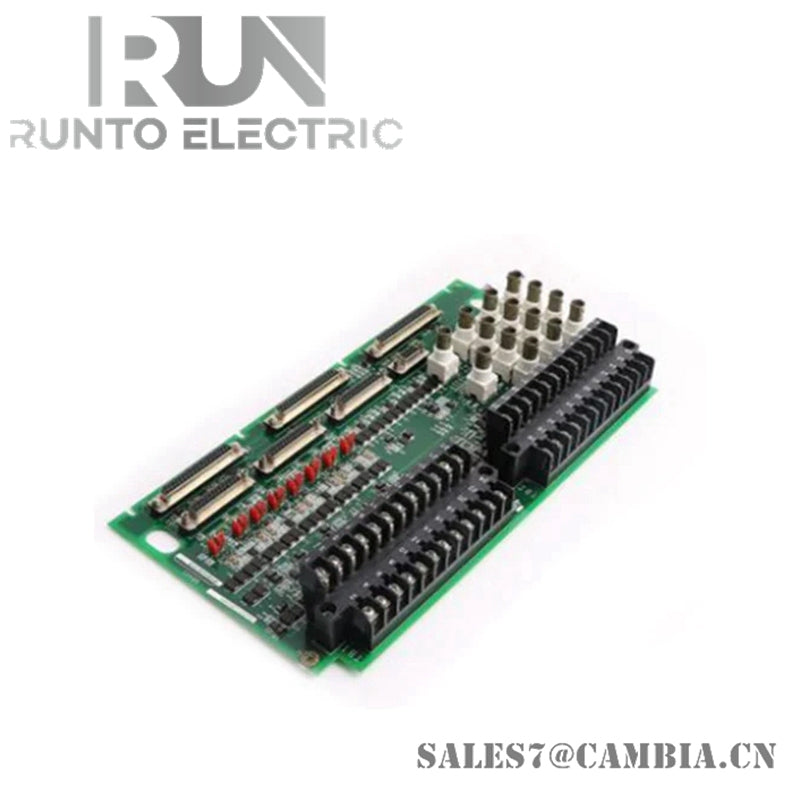

 The GE IS200ACLEH1ACB is a microprocessor-based Application Control Layer Module designed for the EX2100 Excitation Control System. It serves as the master controller, managing multiple tasks via Ethernet and ISBus communication networks, and is built for high-performance turbine and industrial control applications.

Specifications

• Processor: 486 CPU operating at 100 MHz with 16 KB internal L1 cache
• Memory: 8 MB DRAM, 4 MB Flash for BIOS, 128 KB L2 cache
• Communication Ports: High-speed Ethernet, ISBus, COM1 and COM2 serial ports
• Power Supply: 5 VDC
• Operating Temperature: -40°C to +70°C
• Dimensions: 100 mm × 50 mm × 20 mm
• Weight: 2.90 lbs (approx. 1.3 kg)
• PCB Coating: Conformal coating for enhanced durability
• Compliance: Designed for use in EX2100 and Mark VI turbine control systems
• Software Configuration: GE Control System Toolbox (eTCSS CD)


Features

• Master Control Capability: Executes multiple control tasks simultaneously
• Robust Communication: Supports Ethernet and ISBus for reliable data exchange
• BIOS Initialization: Enables serial OS loading and hardware recognition via COM1
• PCI/ISA Bridge: Manages system clock, reset logic, and advanced power functions
• Online Monitoring: Supports real-time parameter changes and firmware upgrades
• Industrial Grade Design: Operates reliably in harsh environments with extended temperature range
• Flexible Integration: Compatible with GE’s turbine and excitation systems for scalable deployment
