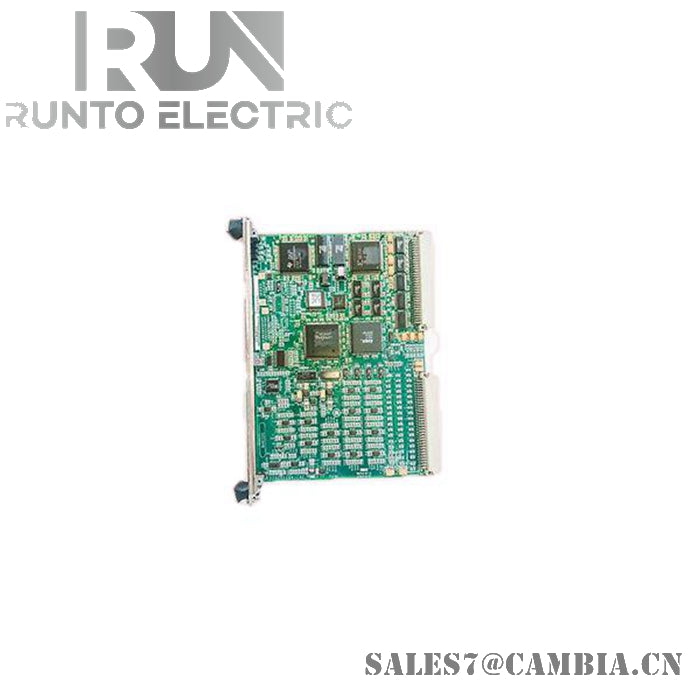

GE IS200EISBH1AAB Exciter ISBus Board

Description

The GE IS200EISBH1AAB is an Exciter ISBus Board used in the Mark VI Speedtronic turbine control system. It manages fiber-optic communications within the EX2100 excitation system, ensuring reliable data exchange and control across gas, steam, and wind turbine applications.

Specifications

• Model: IS200EISBH1AAB
• Series: Mark VI Speedtronic
• Function: Exciter ISBus communication interface
• Communication Type: Fiber-optic, cabinet-level
• Input Voltage: 24 VDC
• Output Voltage: 24 VDC
• Dimensions: 190 mm × 120 mm × 40 mm
• Weight: Approx. 0.8 kg
• Operating Temperature: -40°C to +85°C
• Mounting: Rack-mounted
• Redundancy Options: Supports Simplex and TMR configurations
• Connectors: Backplane connector for fiber-optic feedback signals
• Signal Support: Gen Field and Exciter voltage/current signals
• PCB Coating: Conformal coating for environmental protection
• Warranty: 1 to 3 years depending on supplier
• Origin: USA

Features

• Fiber-Optic Communication: Enables high-speed, noise-resistant data transfer within excitation systems
• Redundant Architecture: Compatible with triple modular redundancy for fault-tolerant control
• Wide Compatibility: Interfaces with Mark VI HMI and EX2100 excitation systems
• Environmental Resilience: Operates in extreme temperatures with conformal PCB protection
• Compact Design: Space-efficient for control cabinet integration
• Signal Management: Handles analog and digital data with high-resolution time tagging
• System Integration: Seamlessly connects with turbine control and monitoring systems
• Reliable Performance: Designed for continuous operation in mission-critical environments
