GE IS200EPCTG1AAA Exciter PT/CT Terminal Board

Description:

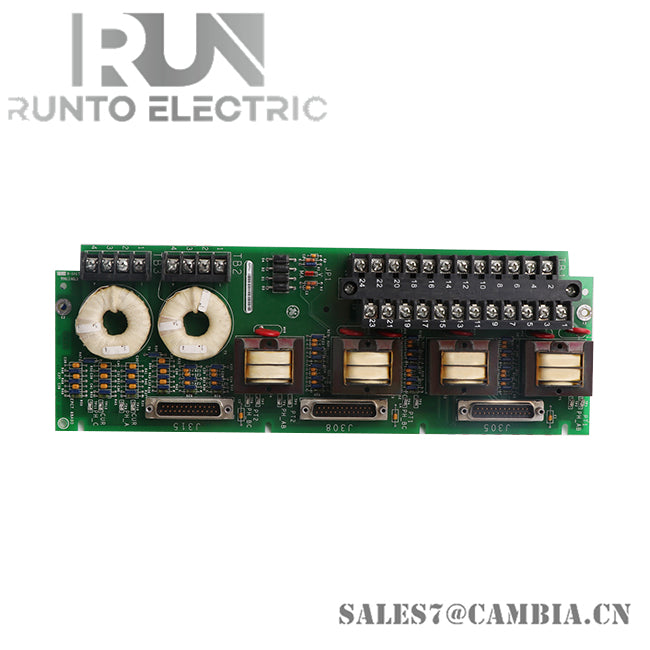

The IS200EPCTG1AAA is an Exciter PT/CT (EPCT) terminal board, a key component of the EX2100 excitation system by General Electric. This terminal board is designed to handle critical measurements of generator voltage and current using isolation transformers. It integrates two 3-phase generator potential transformer (PT) voltage inputs and two generator current transformer (CT) inputs, with current options of 1 A or 5 A. These input signals are efficiently cabled to the EMIO board in the control rack. Additionally, the EPCT board accommodates one analog input, which can accept either voltage or current signals. For applications requiring enhanced reliability, up to three EPCT boards can be incorporated for redundancy, ensuring robust system performance.

Specifications:

• Part Number: IS200EPCTG1AAA
• Manufacturer: General Electric
• Country of Manufacture: United States of America (USA)
• Number of Channels: 6
• Temperature Range: -30°C to +65°C
• Size: 8.6 cm (W) x 16.2 cm (H)
• Product Type: Exciter PT/CT (EPCT) Terminal Board
• Series: EX2100
