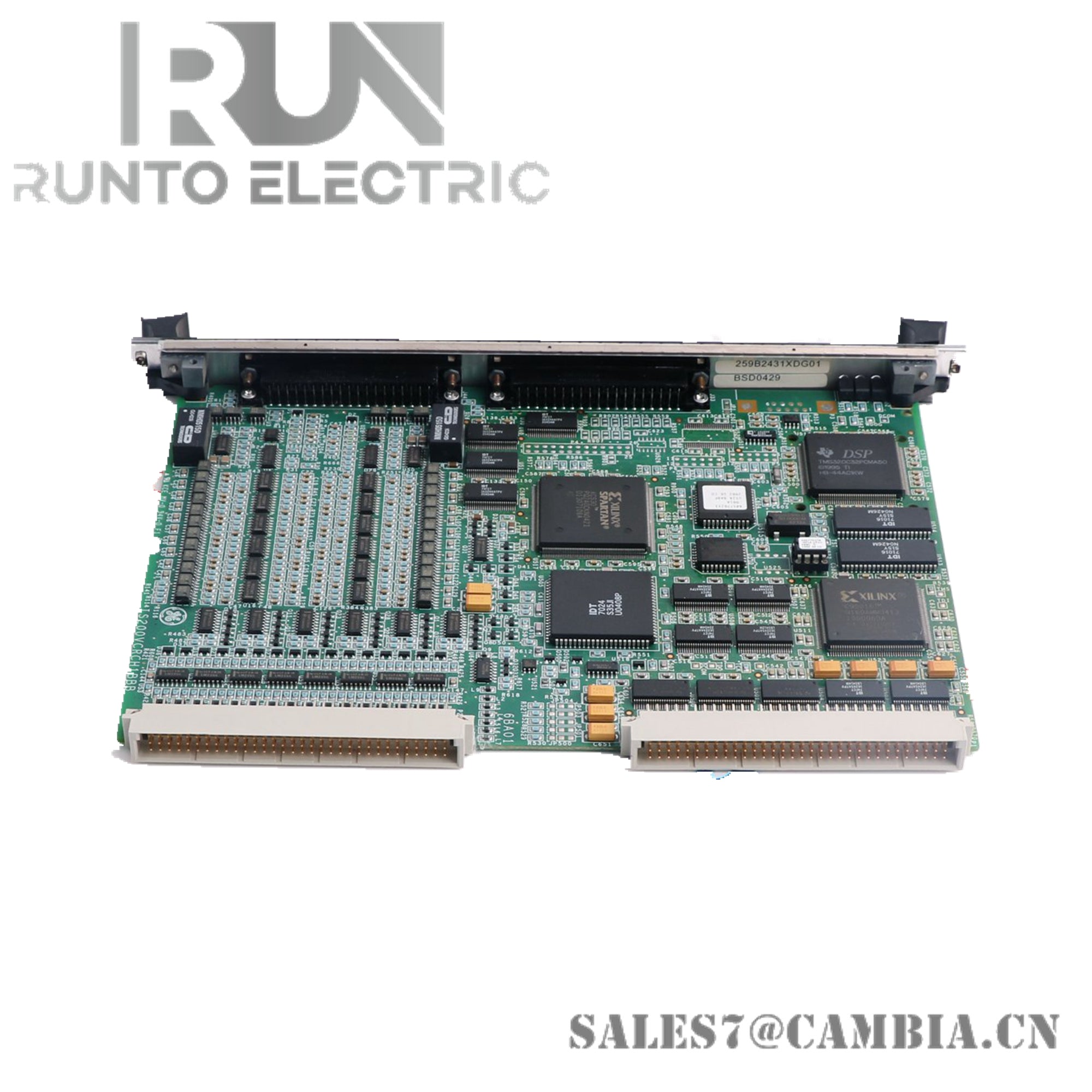

GE IS200JPDMG1ADC Jumper Power Distribution Card

Description

The GE IS200JPDMG1ADC is a Jumper Power Distribution Module (JPDM) designed for the Mark VI Turbine Control System. It distributes 28V DC power across multiple buses, ensuring reliable and redundant power delivery in industrial automation and turbine control environments.

Specifications

• Model Number: IS200JPDMG1ADC
• Input Voltage: 28 VDC
• Current Capacity: Maximum 35 Amps
• Connectors: 13 plug connectors
• Diagnostic Ports: Two 50-pin ribbon cable connectors (P1, P2)
• Fused Outputs: Three 2-pin Mate-N-Lok connectors (JCR, JCS, JCT)
• Power Buses: Supports three separate buses (R, S, T)
• Mounting: DIN-rail mounting
• Dimensions: 20 x 11.5 x 5.7 cm
• Weight: Approximately 0.9 kg
• Operating Environment: Industrial-grade, suitable for harsh conditions

Features

• Redundant Power Support: Can be configured for single or triple bus operation with redundant supplies
• Fuse Protection: Each output is individually fuse-protected for safety
• PPDA Compatibility: Supports Power Diagnostic Pack for enhanced monitoring
• Reliable Distribution: Ensures stable power delivery to control system components
• Modular Integration: Seamlessly integrates with other Mark VI modules like JPDB, JPDF, and JPDE
• Industrial Durability: Built for demanding turbine and automation environments
• Speedtronic Legacy: Part of GE’s advanced Speedtronic-based Mark VI control platform
