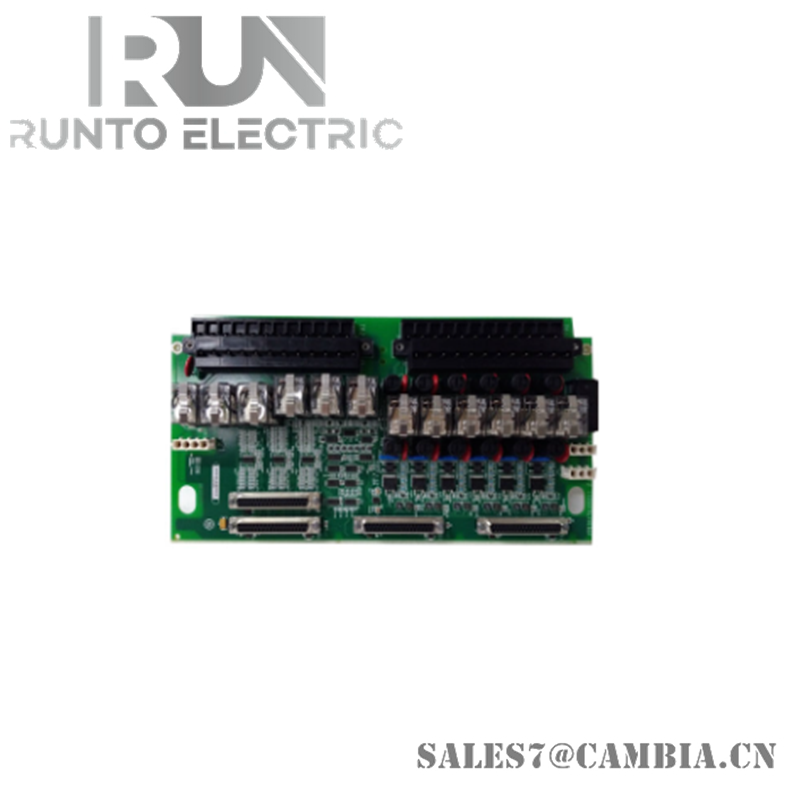

GE IS200TRLYH1BGF Relay Output Board

Description:

The IS200TRLYH1BGF is a relay output board developed by General Electric, designed for use within the Mark VI control system. It serves as a critical component in managing relay outputs, integrating with other control boards such as the VCCC, VCRC, or VGEN, and supports both simplex and Triple Modular Redundant (TMR) configurations. The board interfaces with the VME rack through cables with molded plugs, with specific connectors used based on the system configuration: Connector JA1 for simplex setups and connectors JR1, JS1, and JT1 for TMR systems.

Specifications:

• Part No.: IS200TRLYH1BGF
• Manufacturer: General Electric
• Country of Manufacture: United States of America (USA)
• Temperature Rating: 0 to 60°C
• Size: 17.8 cm (width) x 33.02 cm (height)
• Operating Temperature Range: -30 to +65°C
• Product Type: Relay Output Board
• Availability: In Stock
• Series: Mark VI
