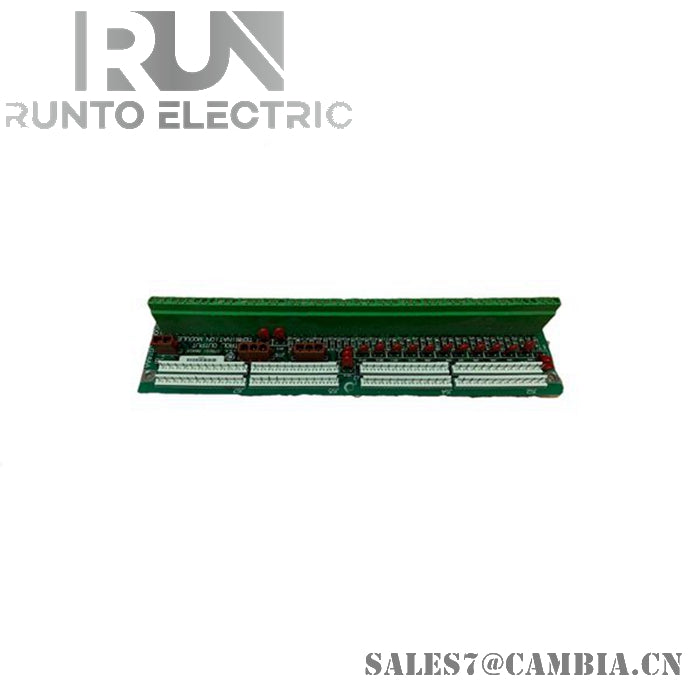

GE IS200TSVCH1ADC Servo I/O Terminal Board

Description

The GE IS200TSVCH1ADC is a Servo I/O Terminal Board designed for use in GE’s Mark VIe control systems. It provides reliable interface capabilities for electro-hydraulic servo valves, enabling precise control and monitoring in turbine automation environments.

Specifications

• Model Number: IS200TSVCH1ADC
• System Compatibility: GE Mark VI / Mark VIe Speedtronic systems
• Input Voltage: 24 VDC nominal
• Sampling Rate: 1 millisecond (high-speed response)
• I/O Channels: Supports analog and digital signal types
• Communication Protocol: Modbus TCP/IP
• Operating Temperature Range: −40°C to +85°C
• Protection Rating: IP20
• Mounting Type: DIN rail or panel mount
• Dimensions: Approximately 28 × 15 × 5 cm
• Weight: Around 0.3 kg
• Compliance: Meets IEC 60068-2-6 vibration standards
• Warranty: 1 year standard coverage

Features

• Servo Valve Interface: Supports up to two electro-hydraulic servo valves
• High-Speed Performance: 1 ms sampling ensures responsive control
• Robust Diagnostics: Integrated fault detection and LED status indicators
• Industrial Durability: Operates reliably in harsh environments
• Compact Design: Lightweight and space-efficient for flexible installation
• Moisture Protection: Conformal coating resists humidity and contaminants
• System Integration: Compatible with GE WSVO and PSVO modules
• Flexible Communication: Supports Modbus TCP/IP for seamless connectivity
