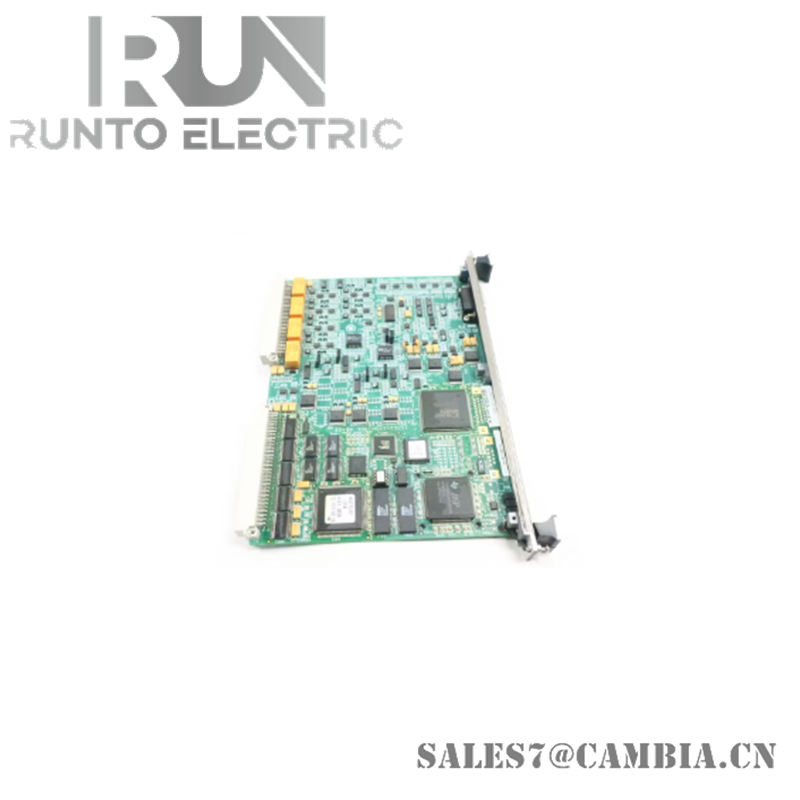

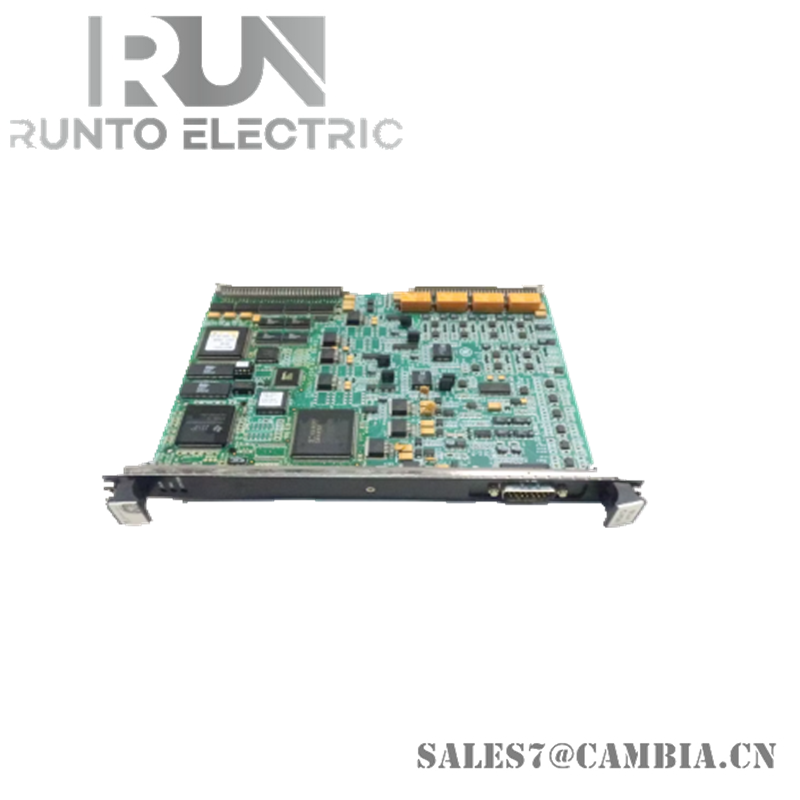

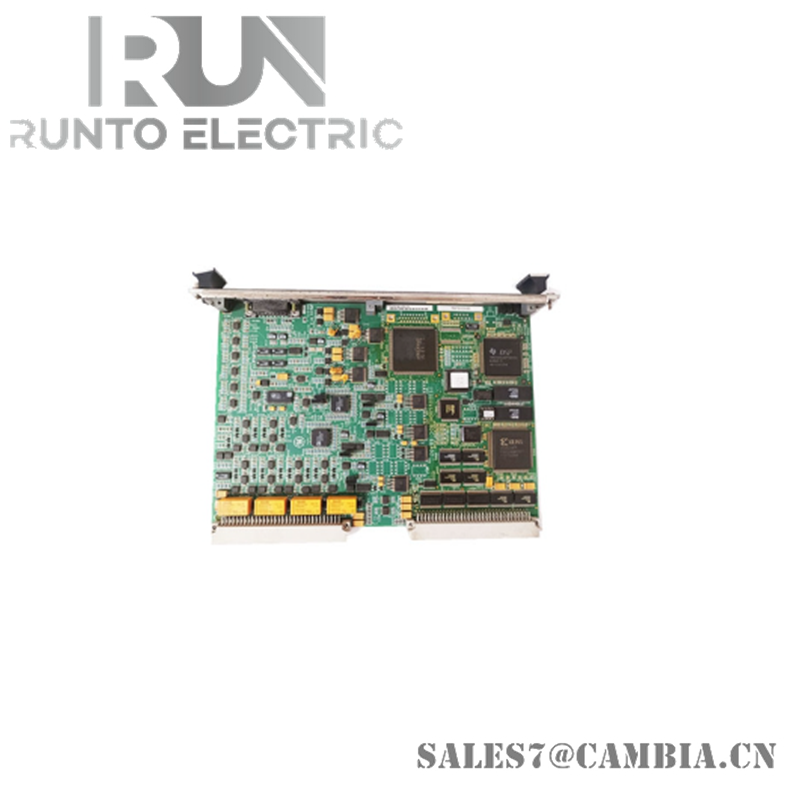

GE IS200VSVOH1BDC Servo Control Board

About the IS200VSVOH1BDC:

The IS200VSVOH1BDC is a printed circuit board from General Electric designed for the Mark VI Turbine Control System Series. This card is used in gas, steam, and wind turbine automated drive assemblies. It represents one of GE’s final developments in the Mark product series, which utilizes Speedtronic control technology first introduced with the Mark I Series in the mid to late 1960s. The card’s design and functionality reflect GE’s extensive experience in turbine control systems, emphasizing its application in high-precision environments.

Technical Specifications:

• Model Number: IS200VSVOH1BDC
• Revision: BDC
• Manufacturer: GE Industrial Systems, General Electric Company, USA
• Model Type: Servo Control Card
• Application Specific I/O: Servo Valve Interface
• Coil Servo Quantity: 2 or 3; 3 for TMR Applications
• Frequency Range for Pulse Rate Inputs: 2-14 kHz
• Functional Acronym/Abbreviation: VSVO
• LEDs: 3 (Run, Fail, Status)
• Prime Mover Type: Steam or Gas Turbines
• Speed Sensor: Active or Passive
• Sufficient Sensitivity Range: 2 Hz
