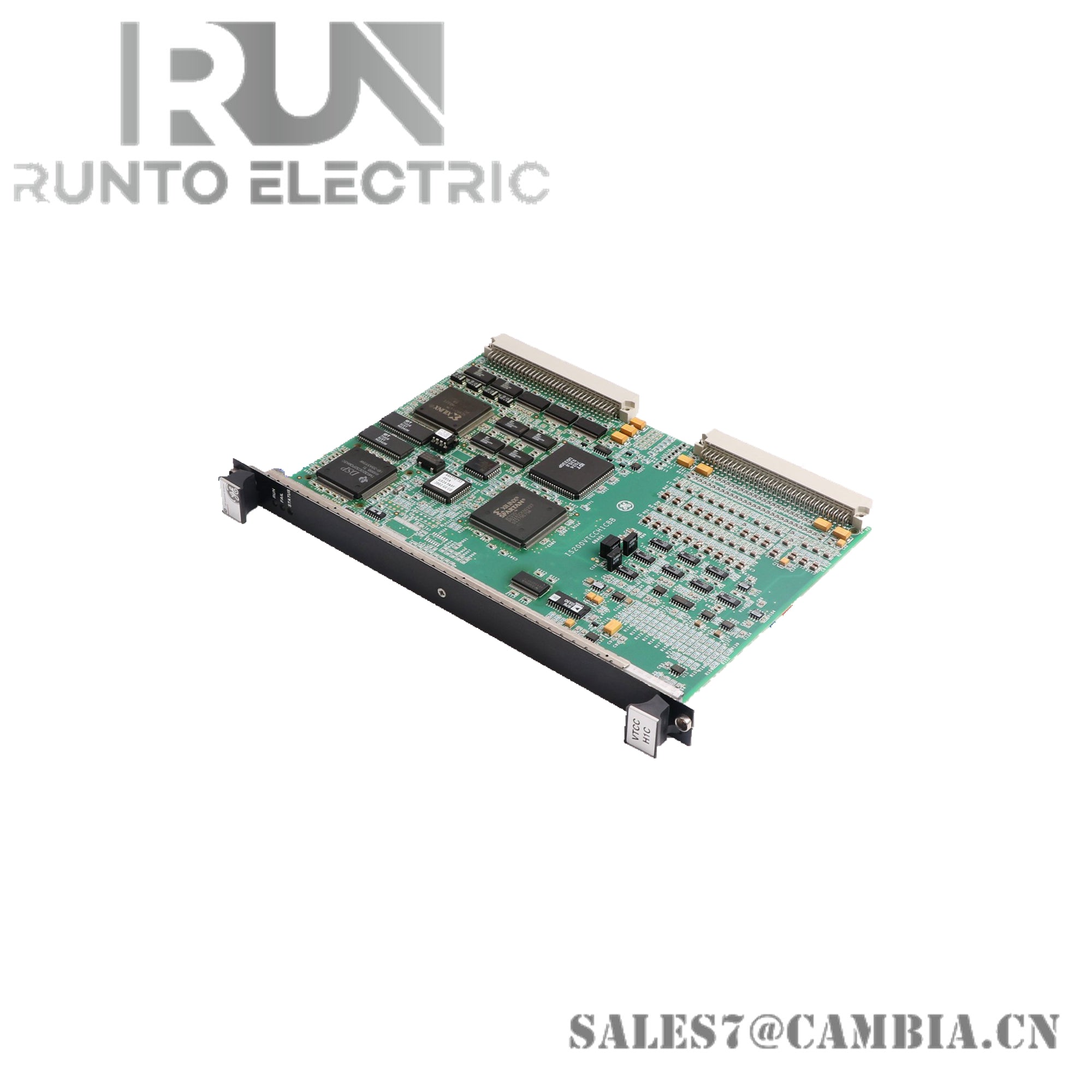

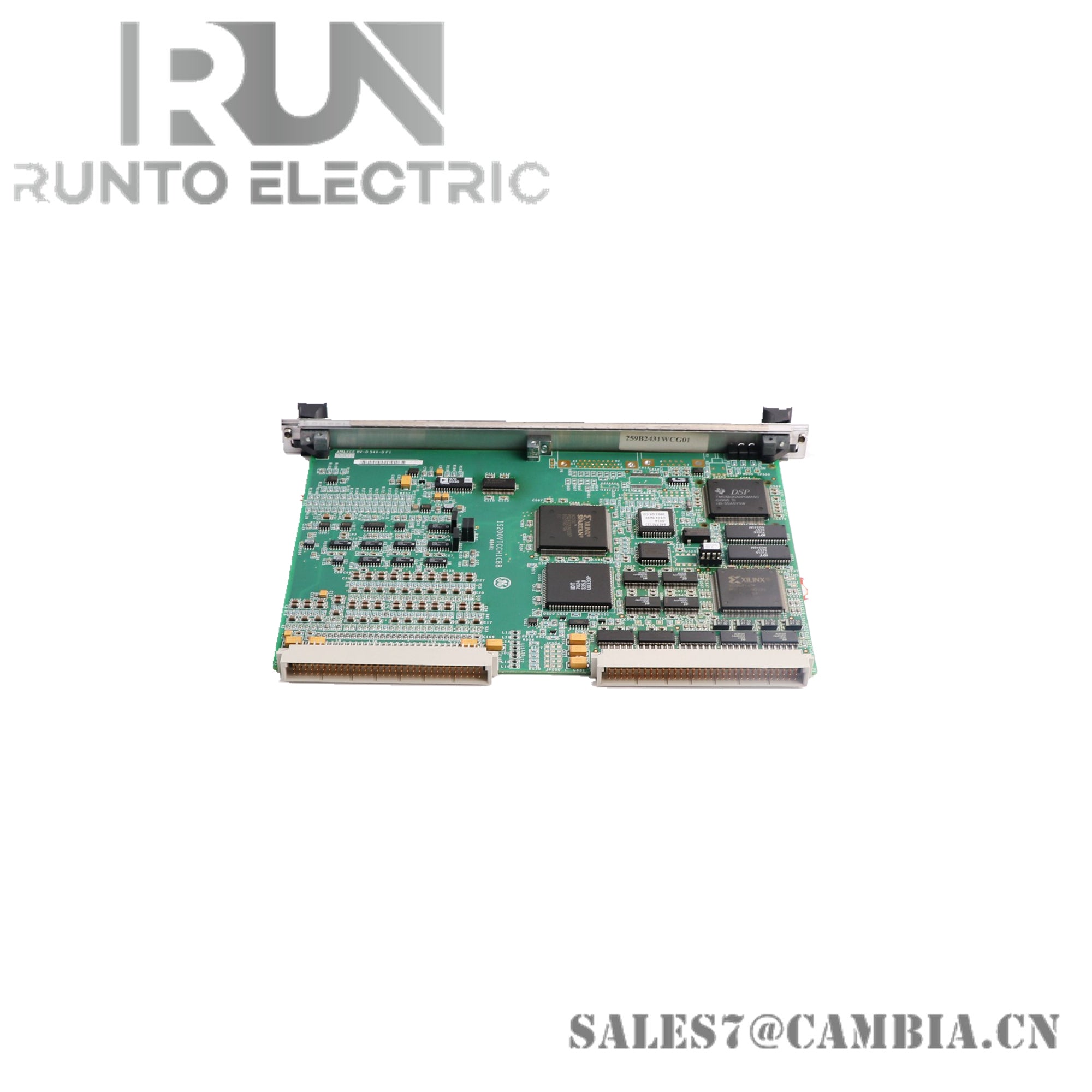

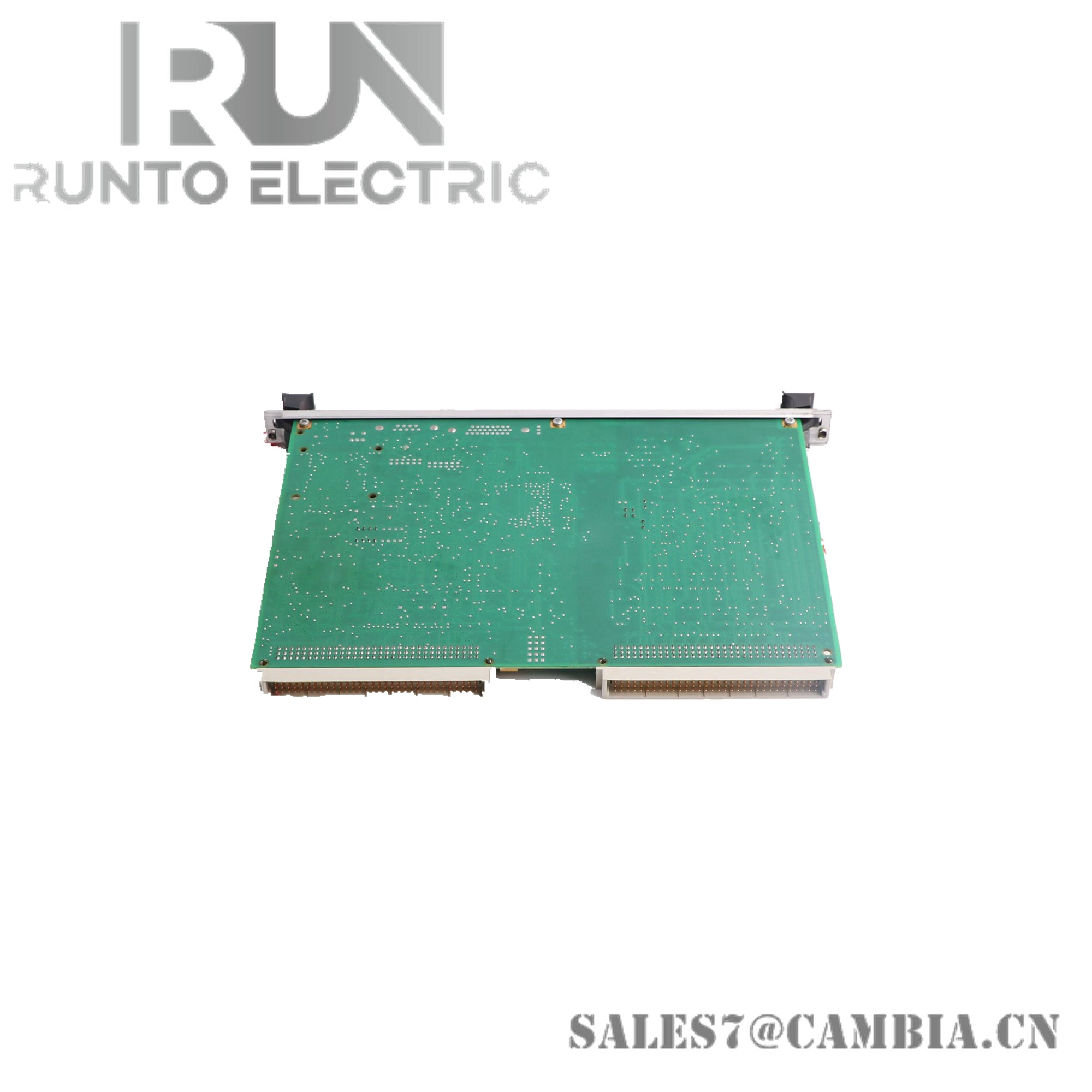

GE IS200VTURH1BAC Primary Turbine Protection Board

Description

IS200VTURH1BAC is a Turbine-Specific Primary Trip Board developed by General Electric (GE). It is a key component of the Mark VI control system, designed to manage and monitor turbine overspeed conditions. This control board governs three primary overspeed trip relays located on the terminal board. Upon command from the controller, the trip signal is transmitted through this board before reaching the TRPG module, which then activates the emergency trip solenoids to protect the turbine.

Specifications

• Part Number: IS200VTURH1BAC
• Manufacturer: General Electric
• Country of Manufacture: United States of America (USA)
• Product Type: Turbine-Specific Primary Trip Board
• Series: Mark VI
• Technology: Surface Mount
• MPU Pulse Rate Range: 2 Hz to 20 kHz
• MPU Pulse Rate Accuracy: ±0.05% of reading
• MPU Input Circuit Sensitivity: 27 mV peak
• Operating Temperature Range: -30°C to +65°C
