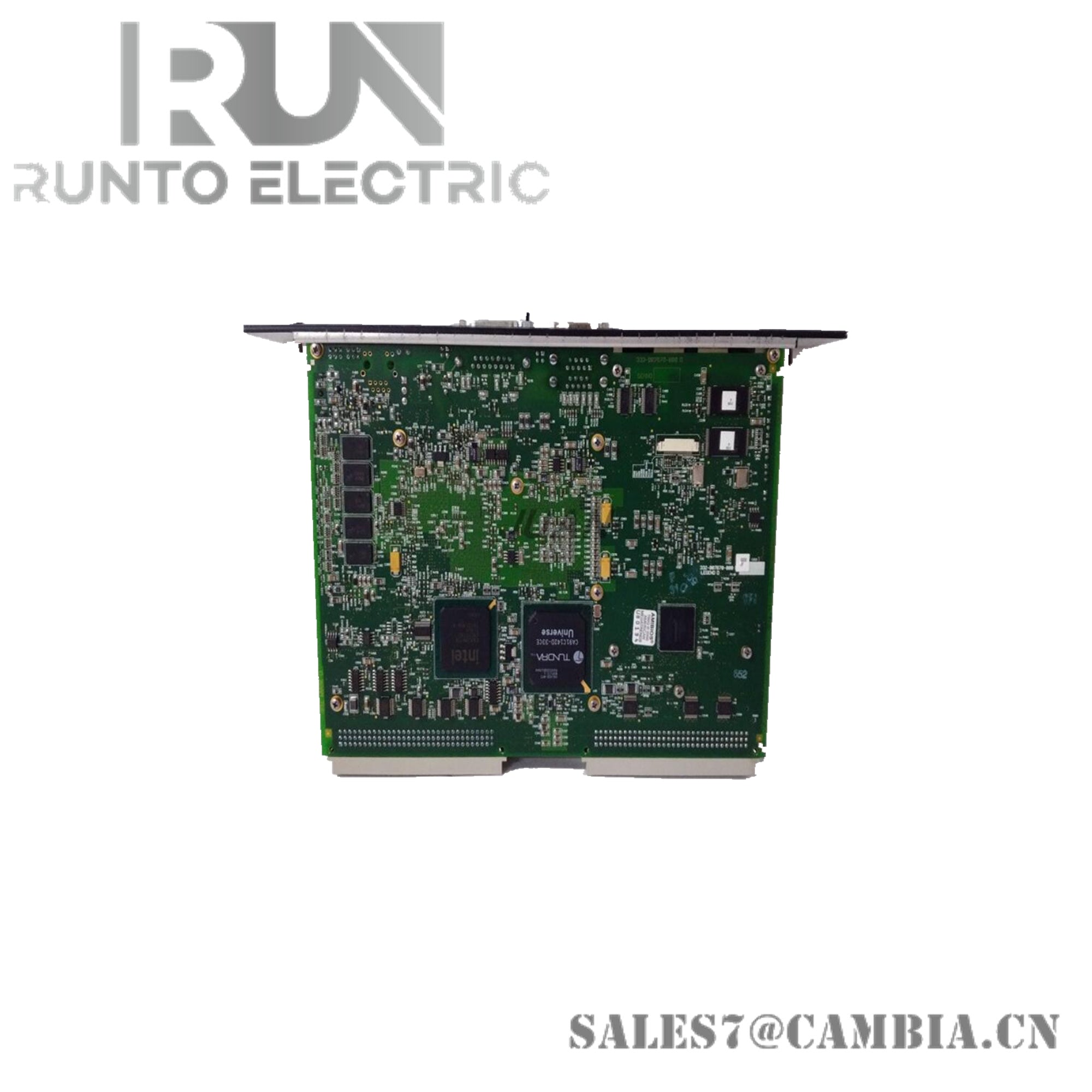

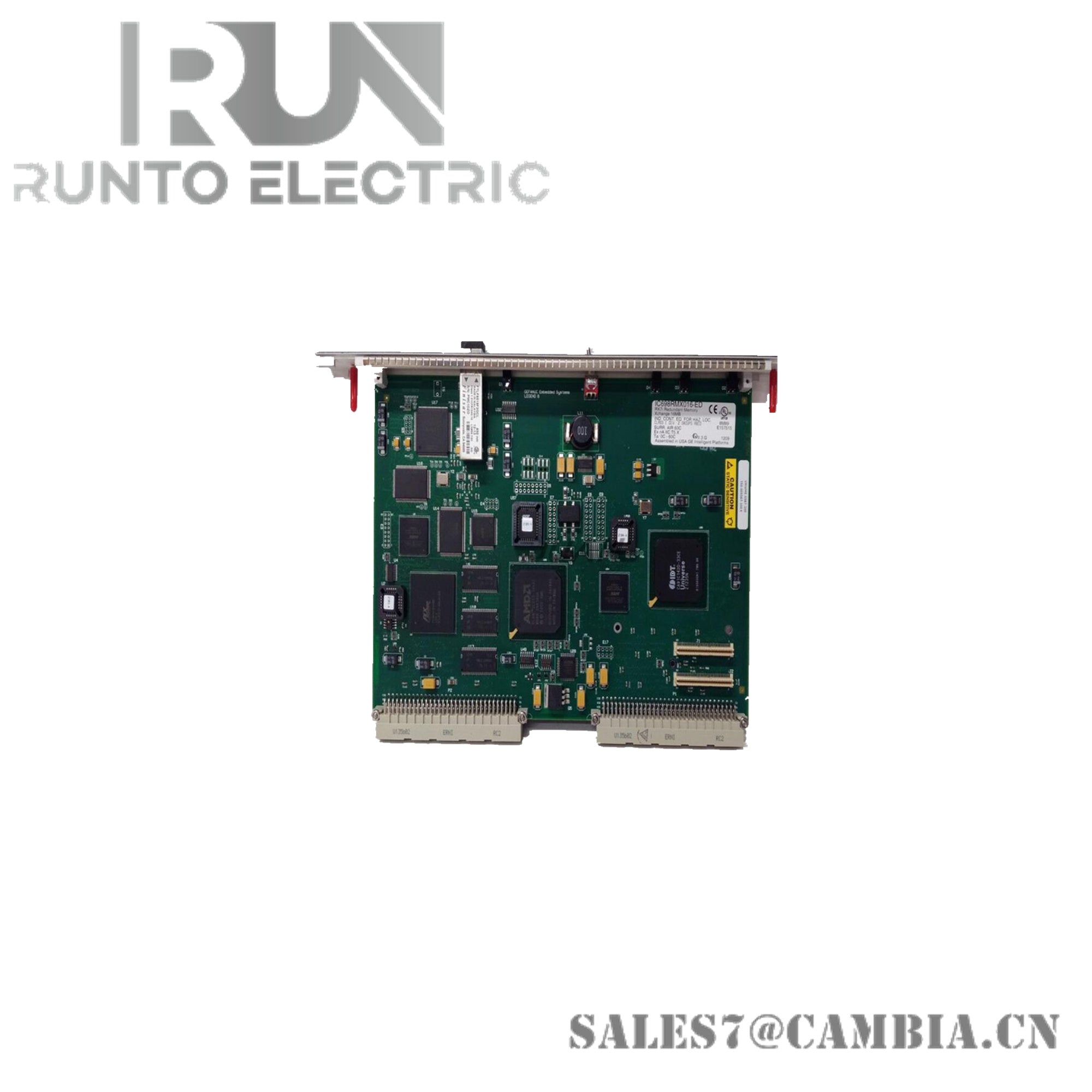

GE IS215UCVEH2AF VME Controller Module

Description

The GE IS215UCVEH2AF is a high-performance VME controller module used in Mark VI and Mark VIe distributed control systems (DCS). It handles real-time control, data acquisition, and communication across industrial automation networks. Designed for reliability and redundancy, it plays a critical role in turbine control, process automation, and safety systems.

Specifications

• Model: IS215UCVEH2AF
• Series: Mark VI / Mark VIe
• Processor: 300 MHz Intel Celeron
• Memory:
  • 32 MB DRAM
  • 128 KB L2 Cache
  • 8 KB Battery-Backed SRAM (NVRAM)
• Storage: Compact Flash (16 MB or 128 MB)
• Communication Interfaces:
  • Ethernet 1: 10BaseT/100BaseTX (RJ-45)
  • COM1: Diagnostic (9600 baud, 8N1)
  • COM2: Serial Modbus (9600 or 19200 baud)
• I/O Support: Digital and Analog I/O
• Redundancy: Yes, supports redundant operation
• Diagnostics: Built-in system health and fault monitoring
• Power Supply: Typically 24 VDC
• Operating Temperature: –30°C to +65°C
• Mounting Type: Standard 19-inch rack
• Environmental Compliance:
  • Dust protection
  • Moisture resistance
  • EMI shielding
• Dimensions: 26.04 × 22.86 × 2.54 cm
• Weight: 0.975 kg
• Warranty: 1 year
• Origin: USA


Features

• Real-Time Control: Optimized for turbine and process automation
• Redundant Architecture: Ensures uninterrupted operation in critical systems
• Versatile Communication: Supports Ethernet and Modbus for flexible integration
• Built-In Diagnostics: Monitors system health and detects faults proactively
• Compact & Rugged: Designed for harsh industrial environments
• Modular Design: Easily integrates into GE’s Mark VI/VIe platforms
• Secure Operation: Battery-backed memory preserves key data during power loss
• Flexible Storage Options: Supports multiple flash configurations
• Industrial Reliability: Proven performance in energy, oil & gas, and manufacturing sectors
