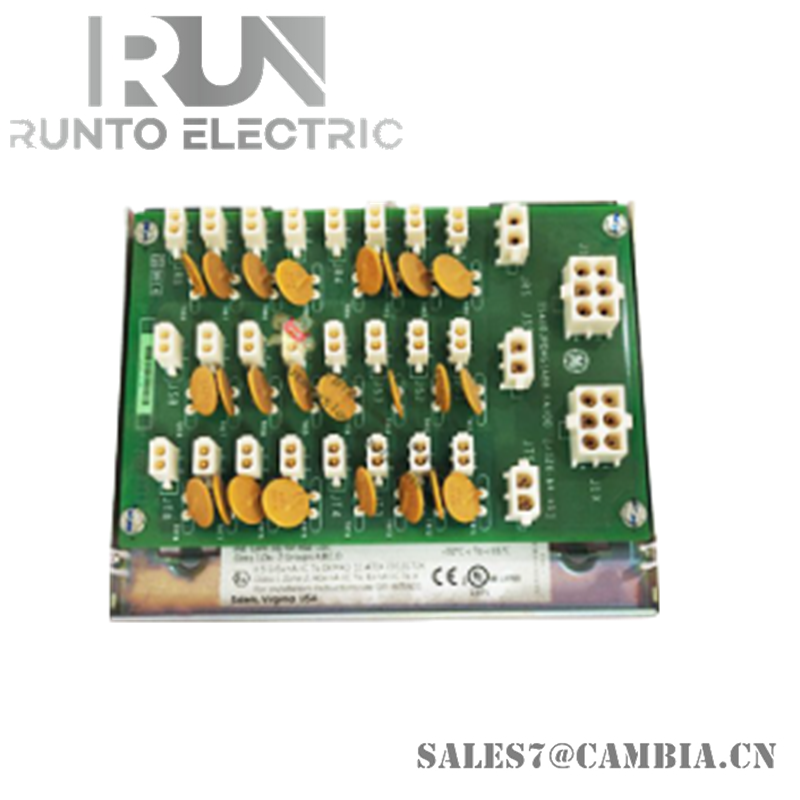

GE IS400JPDHG1A High-Density Power Distribution Board

Description

The GE IS400JPDHG1A is a high-density power distribution board from the Mark VIe series, designed to supply 28 V dc power to multiple I/O packs and Ethernet switches in distributed control systems.

Specifications

• Part Number: IS400JPDHG1A
• Manufacturer: General Electric
• Series: Mark VIe
• Function: High-Density Power Distribution Board
• Input Voltage: 28 V dc
• Output Voltage: 600 V, 13 A
• Mounting Type: DIN-Rail
• Operating Temperature: -30 to 65°C
• Board Dimensions: 6.25 in x 4.25 in
• Availability: In Stock
• Country of Origin: USA


Features

• Multi-Output Capability: Powers up to 24 I/O packs and 3 Ethernet switches.
• Daisy-Chain Support: Expandable via additional JPDH boards for larger systems.
• Fuse Protection: Each I/O pack connector circuit protected by positive temperature coefficient fuse.
• Triple Source Input: Accepts 28 V dc from R, S, and T power sources.
• Segmented Output Distribution: Eight outputs each for R, S, and T channels.
• Unprotected Ethernet Outputs: Three direct 28 V dc outputs for Ethernet switches.
• Compact Design: Optimized for DIN-rail mounting in control cabinets.
