General Electric DS200DTBDG1ABB Terninal Board

Technical Specifications:

• Manufacturer: General Electric
• Series: Mark V
• Part Number: DS200DTBDG1ABB
• Functional Acronym: DTBD
• Functional Description: Mark V Terminal Board
• PCB Coating: Normal Coating
• Functional Revision 1: A
• Functional Revision 2: B
• Artwork Revision: B

Product Description:

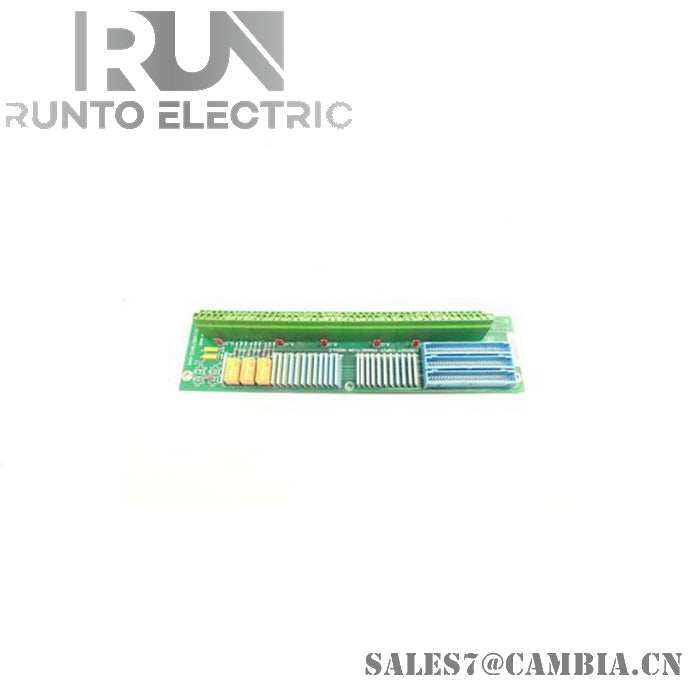

The GE Terminal Board DS200DTBDG1ABB features 2 terminal blocks. Each block contains 107 terminals for signal wires. The GE Terminal Board DS200DTBDG1ABB also contains multiple test points, 2 jumpers, and 3 34-pin connectors. The board is 11.25 inches in length and 3 inches in height. It is designed to fit in a specific location in the drive interior and is secured in place with screws.

To remove the GE Terminal Board DS200DTBDG1ABB, first, use a screwdriver to remove the screws. After removing the signal wires, ribbon cables, and other cables, the board can be easily taken out. Carefully remove the board to prevent it from hitting against other components inside the drive. Label the cables with the connector IDs for easy installation. Route the cables to avoid blocking the air vents, which allow cool air to enter the drive and dissipate heat.

Additional Information:

• NEW AND ORIGIN ITEM IN STOCK
• WITH ONE YEAR WARRANTY

For inquiries, please contact sales7@cambia.cn.
