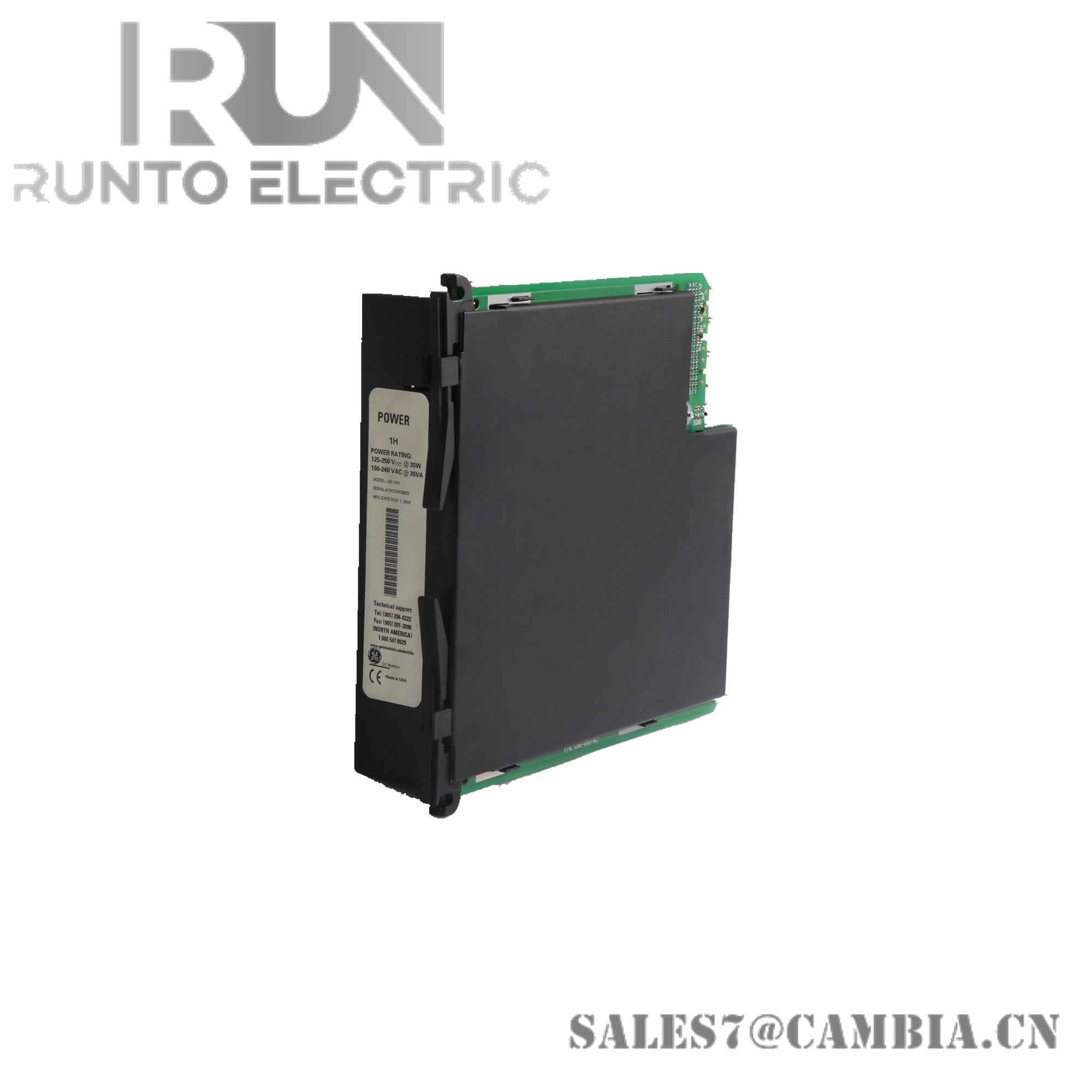

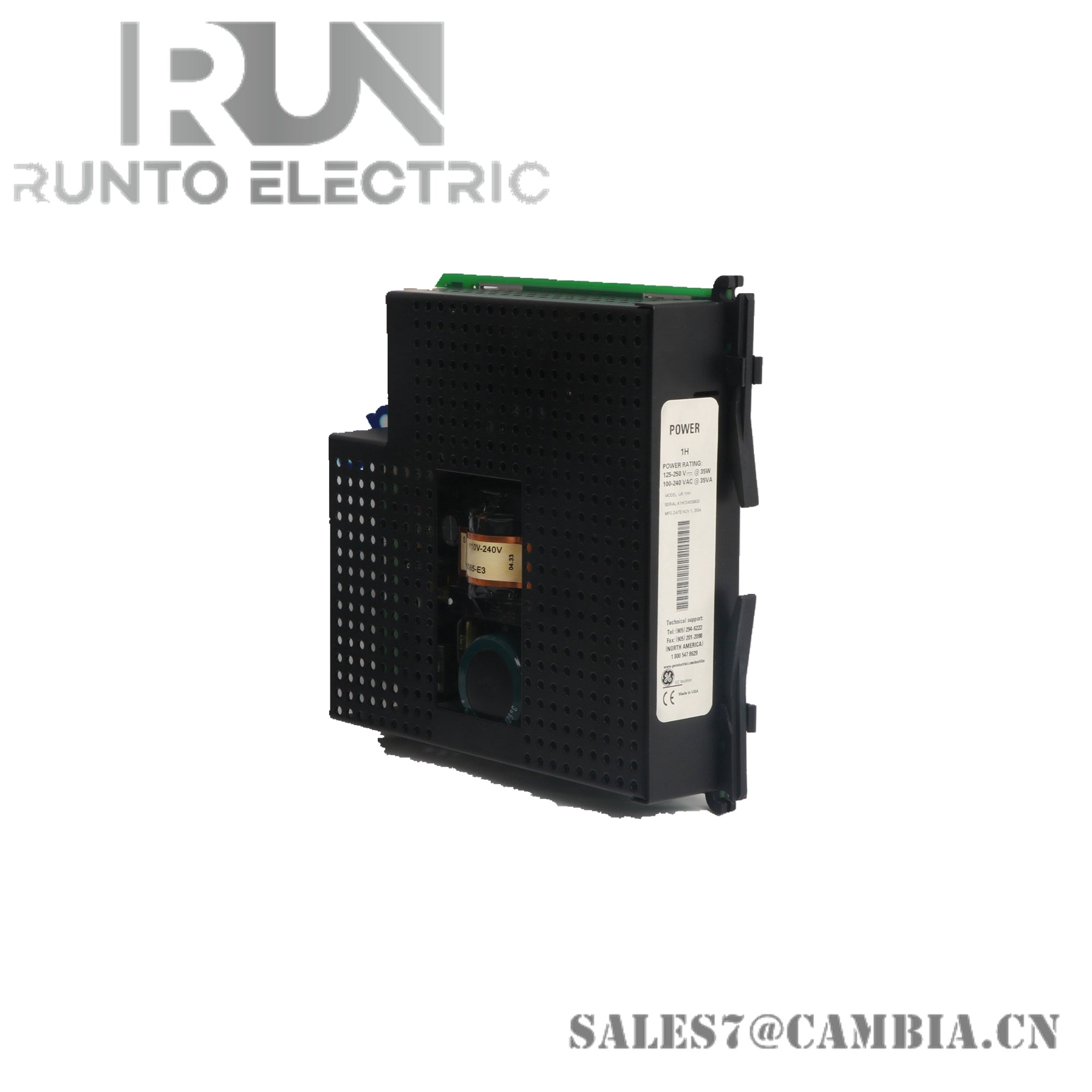

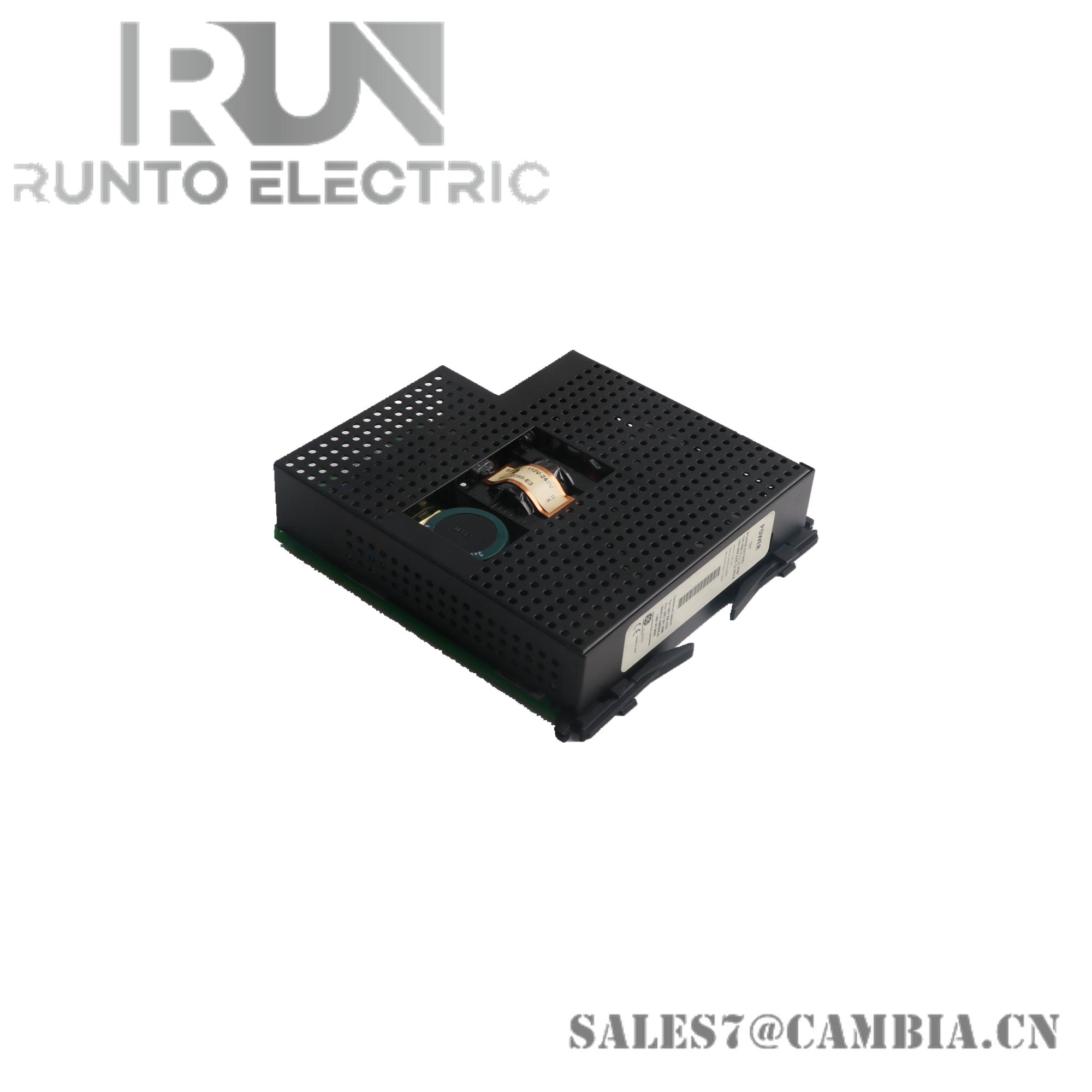

General Electric Multilin UR-1HH/UR 1HH Power Supply Module

Description

The General Electric Multilin UR-1HH is a high-power supply module designed for use in the UR Series Universal Relays. It supports 125-250 V DC and 100-240 V AC (50/60 Hz) input voltage, making it suitable for various industrial automation applications. The module features a hinged faceplate, allowing users to access and replace internal components with ease.

Specifications

• Input Voltage Range: 125-250 V DC / 100-240 V AC (50/60 Hz)
• Power Consumption: 35 W (DC) / 35 VA (AC)
• Dimensions: Approximately 15 cm (L) × 18 cm (W) × 4 cm (H)
• Weight: Around 1.15 kg
• Manufacturer: General Electric Multilin (GE)
• Manufacturing Location: Markham, Ontario, Canada

Features

• Hinged faceplate for easy access
• Designed for quick module replacement
• Requires control power disconnection before replacement
• Electrostatic discharge protection recommended during handling
• Compatible with UR Series Universal Relays
• Supports both AC and DC power inputs
