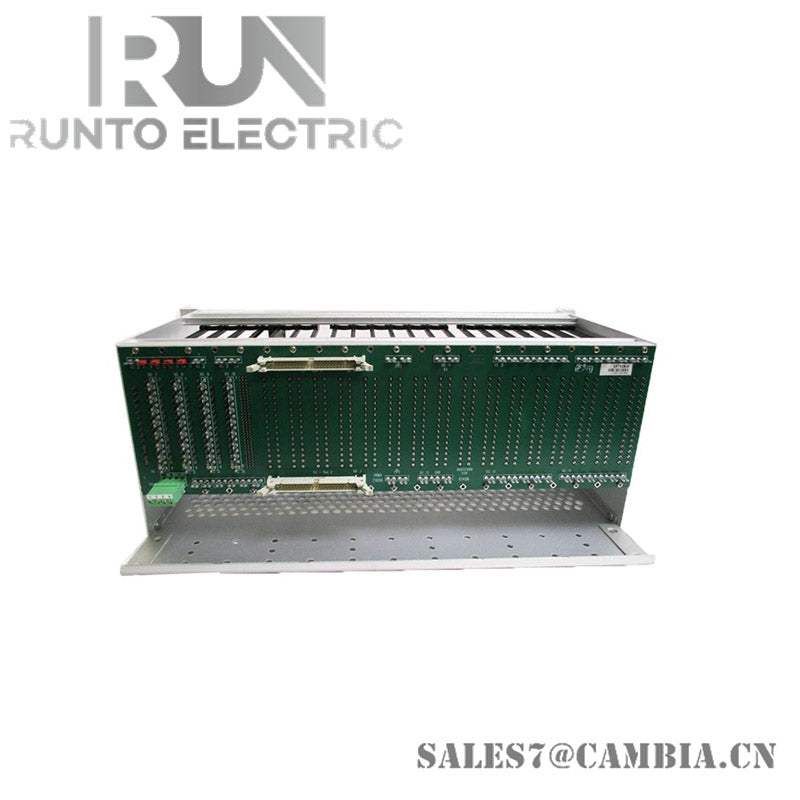

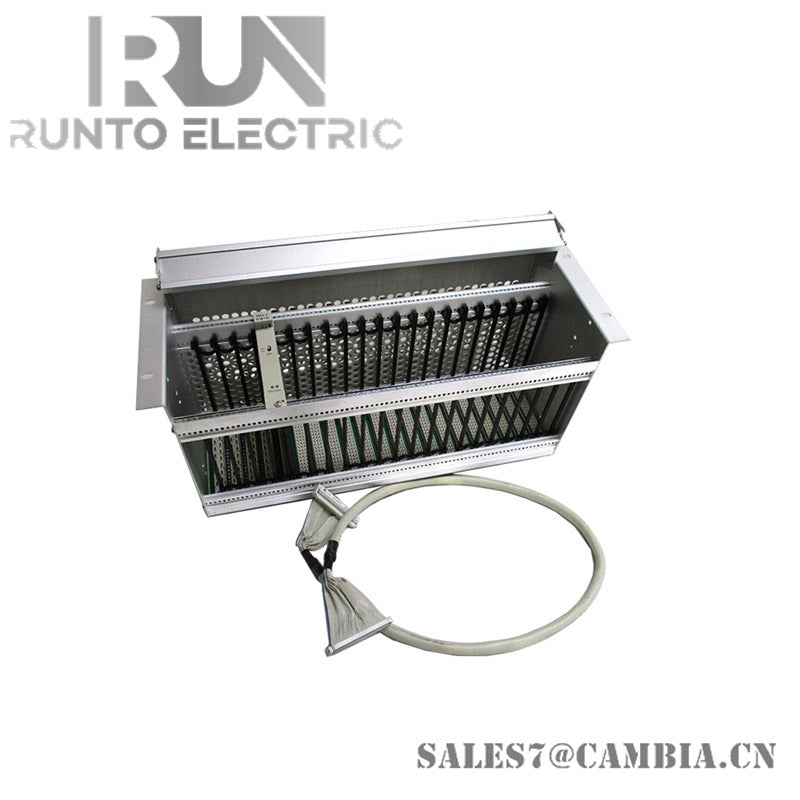

HIMA B9361 / B 9361 Power Supply Module

Description

The HIMA B9361 is a redundant rack-mounted power supply unit designed for high-availability safety systems such as the HIMA HIQuad H51q. It delivers stable 5 V DC output and supports modular expansion, ensuring uninterrupted operation in safety-critical industrial environments.

Specifications

• Model Number: B9361
• Product Type: Rack Power Supply Module
• Output Voltage: 5 V DC
• Maximum Current: Up to 18 A
• Form Factor: 19-inch rack, 5U height
• Mounting: Rack-mountable with integrated cable tray
• Compatible Systems: HIMA H51q and HIQuad safety platforms
• Included Modules:
  • F 7126: 24V/5V, 10A power supply module
  • F 7131: Power supply monitoring module
• Optional Modules:
  • Z 6011: Decoupling and fusing
  • Z 6012: Fan module with monitoring
  • Z 6013: Voltage decoupling
• Connectors: 14 × 32-pole socket connectors
• Dimensions: Approx. 482.6 mm × 132 mm × 350 mm
• Weight: ~8.5 kg
• Certifications: CE, RoHS
• Origin: Germany
• Warranty: 12 months

Features

• Redundant Power Architecture: Supports dual power modules for fault-tolerant operation
• Hot-Swappable Design: Enables module replacement without system shutdown
• High Current Capacity: Delivers up to 18 A to meet demanding load requirements
• Modular Expansion: Easily integrates optional modules for enhanced functionality
• Integrated Monitoring: Real-time power supply diagnostics and fault alerts
• Safety-Critical Reliability: Certified for use in SIL 3 environments
• Flexible Configuration: Supports various combinations of F-modules for tailored setups
• Global Deployment Ready: Complies with international standards for industrial automation
