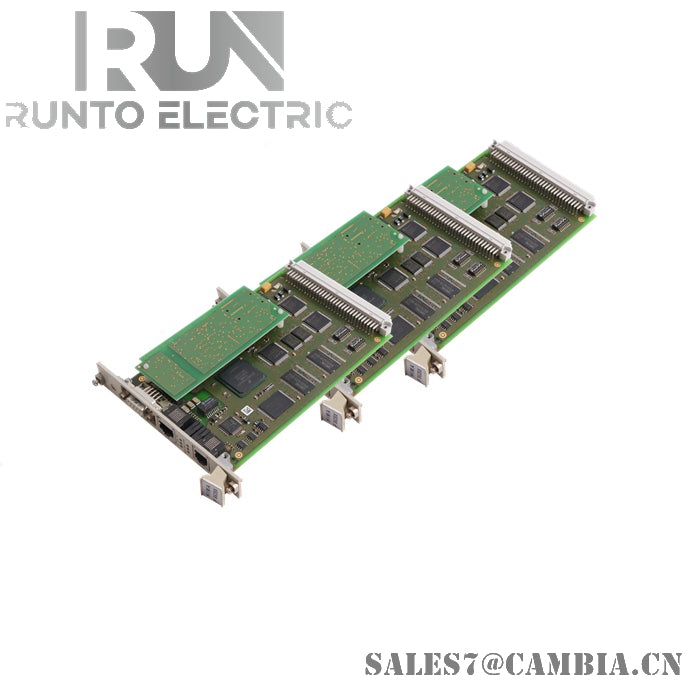

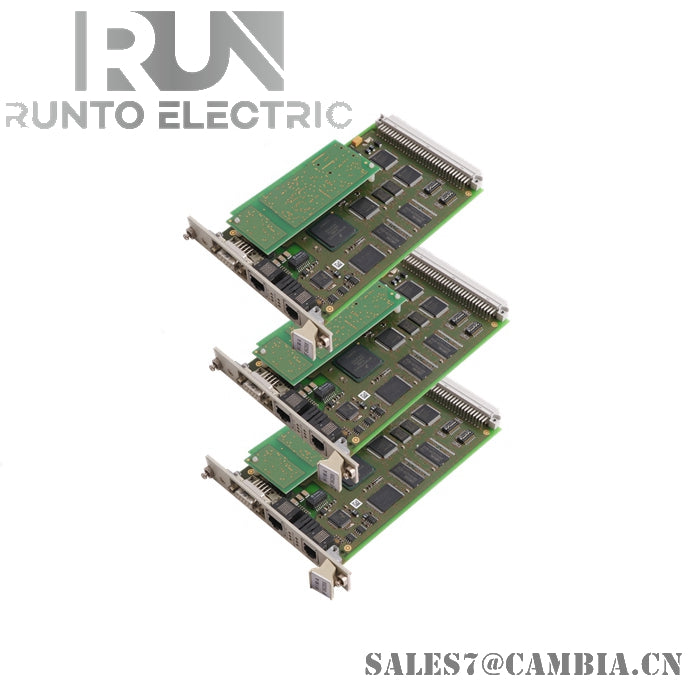

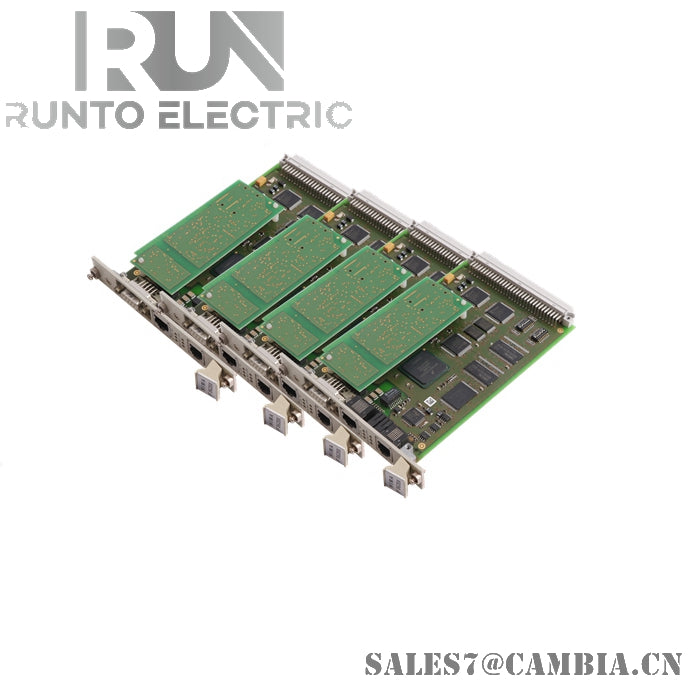

HIMA F60 DI 32 01 Digital Input Module

Description

The HIMA F60 DI 32 01 is a safety-rated digital input module designed for the HIMatrix F60 system. With 32 galvanically isolated inputs, it ensures reliable signal monitoring in safety-critical industrial applications such as emergency shutdowns and process control.

Specifications

• Input Channels: 32 digital inputs
• Input Voltage: Nominal 24 VDC (SELV/PELV compliant)
• Input Current: Approx. 7 mA per channel
• Input Delay: 5 ms (debouncing configurable)
• Power Supply: 24 VDC, -15% to +20%, ripple < 15%
• Operating Temperature: -25°C to +60°C
• Storage Temperature: -40°C to +85°C
• Protection Class: IP20
• Mounting Slots: Slots 3–8 in HIMatrix F60 subrack
• Dimensions: Approx. 100 × 50 × 80 mm
• Weight: ~0.2 kg

Features

• Safety-Certified: TÜV-certified for SIL 3 and SIL 4 applications
• Galvanic Isolation: Ensures safe separation between inputs and I/O bus
• Line Control: Detects short-circuits and open-circuits on emergency stop inputs
• Status Indicators: RUN (green), ERR (red), and I/O LEDs (yellow) for diagnostics
• Modular Integration: Fits seamlessly into HIMatrix F60 subrack
• Environmental Resilience: Operates reliably across wide temperature and humidity ranges
• Error Handling: LED alerts and error codes for fault detection and response
• Programming Compatibility: Configurable via SILworX or ELOP II Factory
