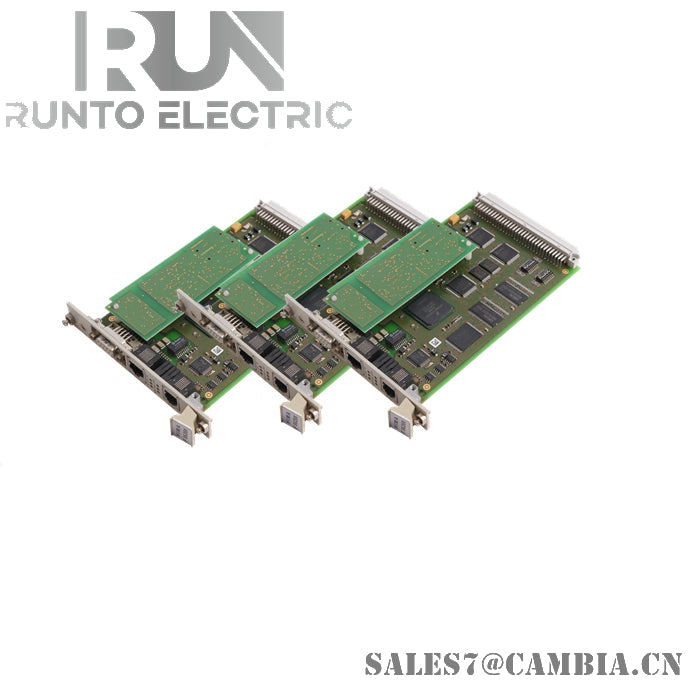

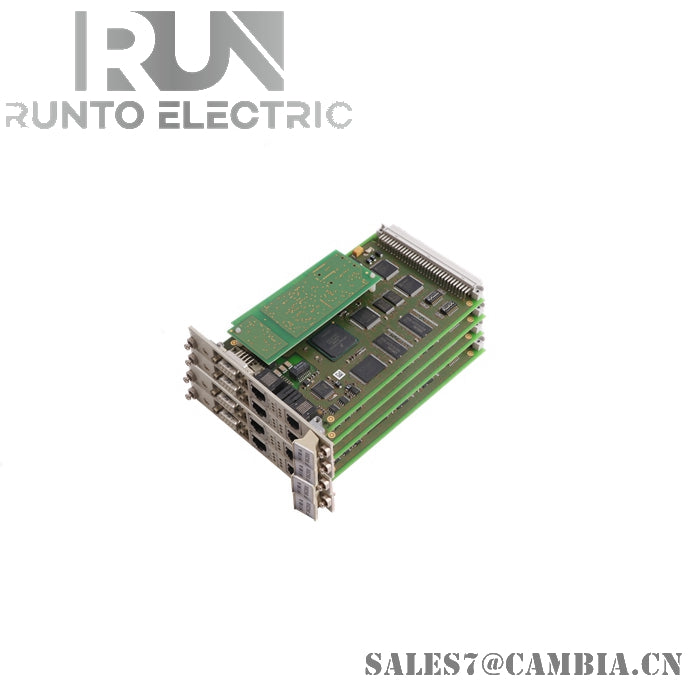

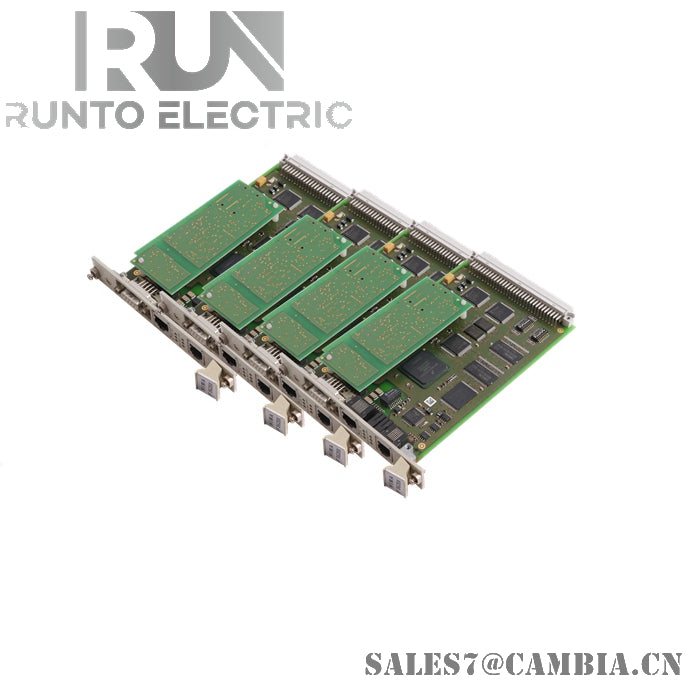

HIMA F8652E Central Processing Unit Module

Description

The HIMA F8652E is a high-performance CPU module designed for safety-critical applications in industrial automation. As part of the HIQuad H41q/H51q safety controller system, it ensures reliable control, monitoring, and fail-safe operation in demanding environments such as oil & gas, chemical processing, and power generation.

Specifications

• Model: F8652E
• Type: Central Processing Unit Module
• Microprocessors: Dual INTEL 386EX (32-bit), 25 MHz clock frequency
• Operating System Memory: 1 MB Flash-EPROM per processor
• User Program Memory: 512 kB Flash-EPROM per processor
• Data Storage: 256 kB SRAM per processor
• Interfaces: 2 × RS-485 serial ports
• Diagnostic Display: 4-digit alphanumeric with 2 LED indicators
• Error Handling: Fail-safe watchdog output (24 V DC, up to 500 mA load)
• Power Supply: 5 V DC, 2000 mA current consumption
• Battery Lifetime: ~2500 days at 25°C or ~100 days at 60°C
• Operating Temperature: –25°C to +70°C
• Dimensions: 100 mm × 80 mm × 25 mm
• Weight: 0.42 kg
• Module Width: 8 TE
• Certifications: CE, FCC
• Origin: Germany
• Warranty: 1 year

Features

• Dual-Processor Architecture: Enhances processing speed and redundancy
• Fail-Safe Design: Integrated watchdog and diagnostic display for real-time fault detection
• Robust Memory Configuration: Separate OS, user program, and data storage per processor
• Industrial Reliability: Operates in wide temperature ranges and harsh conditions
• Flexible Communication: RS-485 interfaces for integration with distributed control systems
• Compact Form Factor: Space-efficient for control cabinet installations
• Long Battery Life: Designed for extended operation without maintenance
• System Compatibility: Seamlessly integrates with HIMA HIQuad safety systems
