Description:

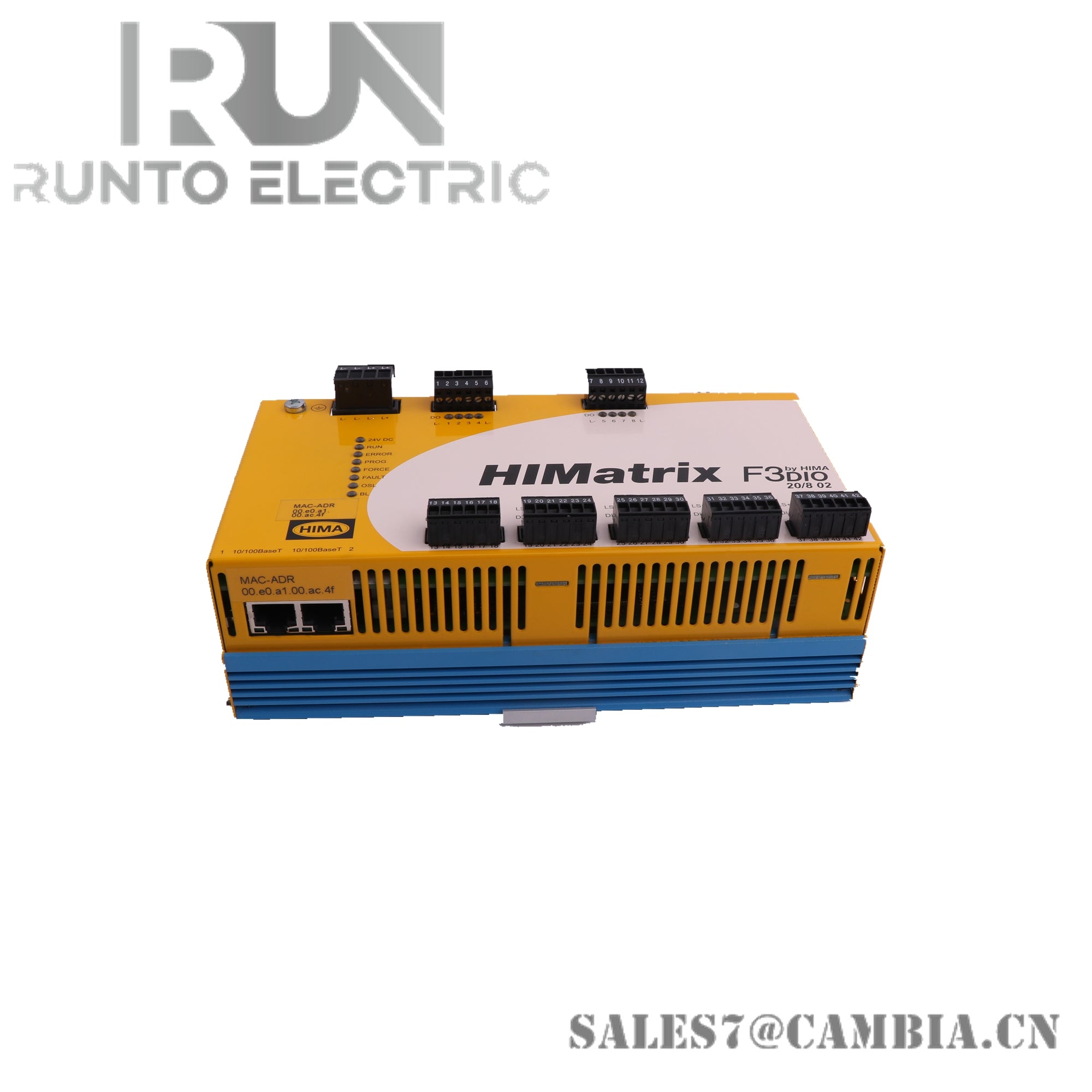

The HIMatrix F3DIO20/802 module is designed for use in safety-critical applications where reliability and efficiency are paramount. It offers 20 digital inputs and 8 digital outputs, all non-galvanically separated, within a compact metal enclosure. This module is built to perform in harsh industrial environments while ensuring safety and operational integrity. With an input voltage range of 15-30 VDC and a response time of ≥ 10 ms, it provides reliable performance for a variety of control and automation systems.
Specifications:
-
Digital Inputs: 20 (non-galvanically separated)
-
Digital Outputs: 8 (non-galvanically separated)
-
Input Voltage Range: 15-30 VDC
-
Output Voltage Range: ≥ L+ minus 2 V
-
Response Time: ≥ 10 ms
-
Operating Temperature: 0°C to +60°C
-
Storage Temperature: -40°C to +85°C
-
Protection Type: IP20
-
Dimensions: 207 mm (W) x 114 mm (H) x 66 mm (D)
-
Weight: Approx. 1 kg
Features:
-
High Reliability: Designed for continuous operation in harsh industrial environments
-
Compact Design: Saves space while maintaining high performance
-
Safety Certifications:
- CE: EMC
- ATEX Zone 2
- TÜV: IEC 61508 up to SIL 3
- UL: Underwriters Laboratories Inc.
-
Versatile Communication: Supports multiple protocols for seamless system integration
-
Built-In Diagnostics: Provides easy troubleshooting and maintenance
