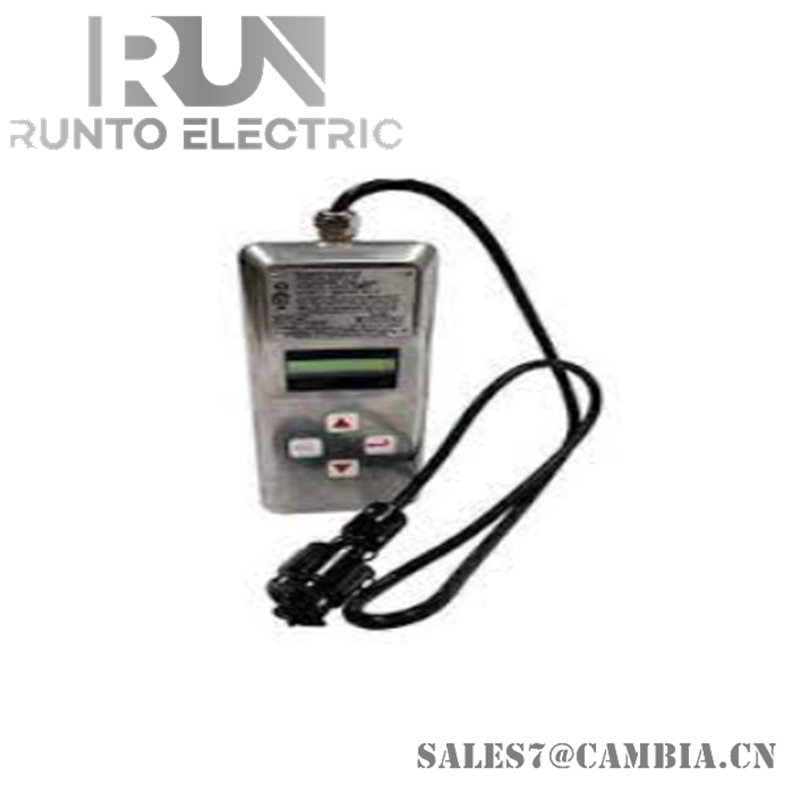

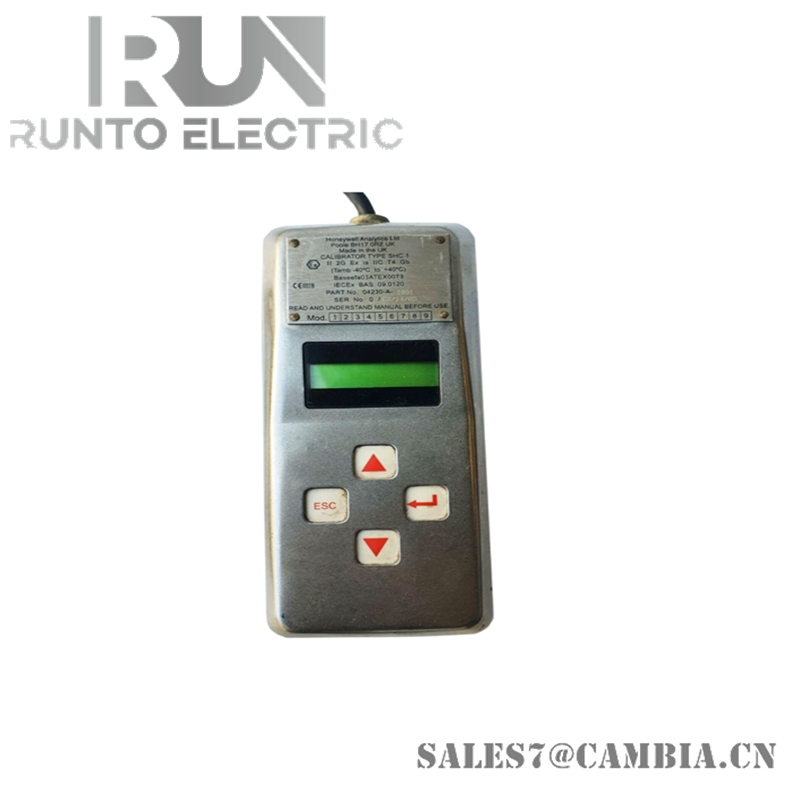

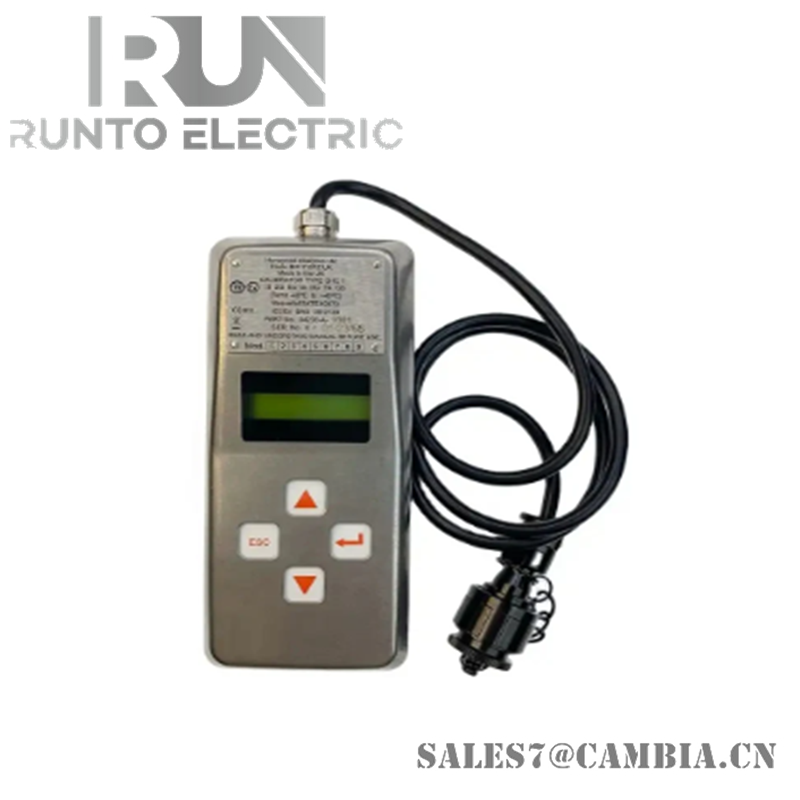

The Honeywell 04230-A-1001, also cataloged as the SHC-1 Hand Held Interrogator, operates as a portable stainless steel ANSI 316 device for ATEX-certified interrogation of Optima, Optima Plus, and Excel detectors.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 04230-A-1001 |
| Brand | Honeywell |
| Origin | Manufacturer origin not specified |
| Weight | 0.5 kg |
| Shipping Weight | 1.5 kg |
| Material | Stainless Steel ANSI 316 |
| Operating Temp | 0 to +40 deg C (DMT evaluated -25 to +55 deg C) |
| Storage Temp | -10 to +40 deg C |
| Operating Humidity | 0 to 99% RH non-condensing |
| Certification | ATEX Certified (4V0 software) |
4-20 mA HART Loop Protocol
The SHC-1 interrogator is designed for compatibility with Honeywell detector systems where 4-20 mA HART loop protocol is employed. The device ensures accurate interrogation without disrupting active process signals. Channel isolation prevents cross-talk between connected detectors.
Frequently Asked Questions
Q: Can the SHC-1 interrogator be used in hazardous zones? A: Yes, it is ATEX certified and suitable for use in classified hazardous environments.
Q: What is the evaluated extended operating range? A: DMT evaluation confirms operation from -25 to +55 deg C beyond the standard 0 to +40 deg C rating.
Q: Does the device require firmware updates? A: The SHC-1 operates with 4V0 software; updates are managed through Honeywell service protocols.
Field Installation Guidelines
- Ensure proper grounding when connecting to detector systems.
- Maintain separation of wiring between interrogator connections and power supply lines.
- Observe humidity tolerance up to 99% RH non-condensing during field use.
- Store within -10 to +40 deg C to preserve material integrity.
- Verify stainless steel ANSI 316 housing is intact before deployment in corrosive environments.
