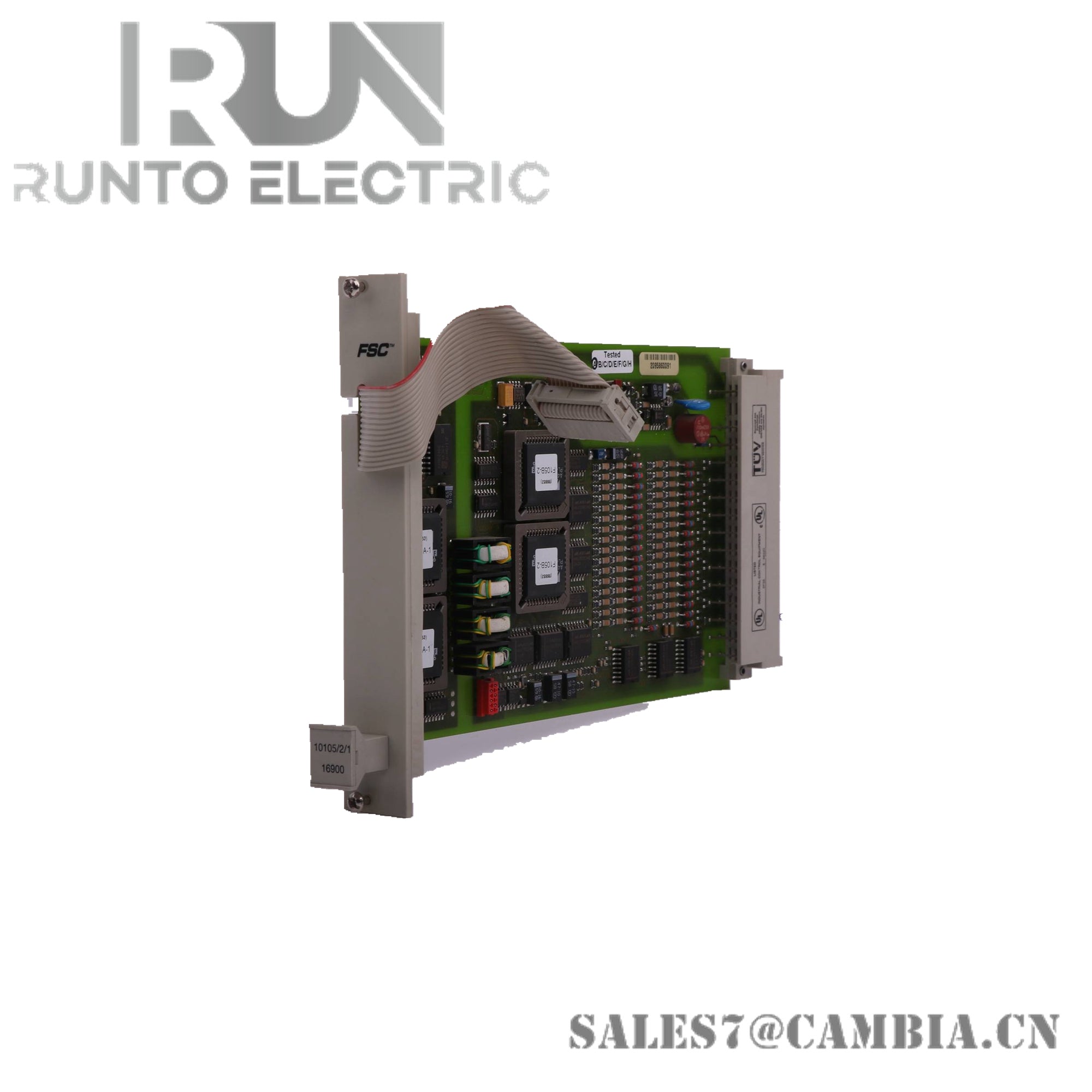

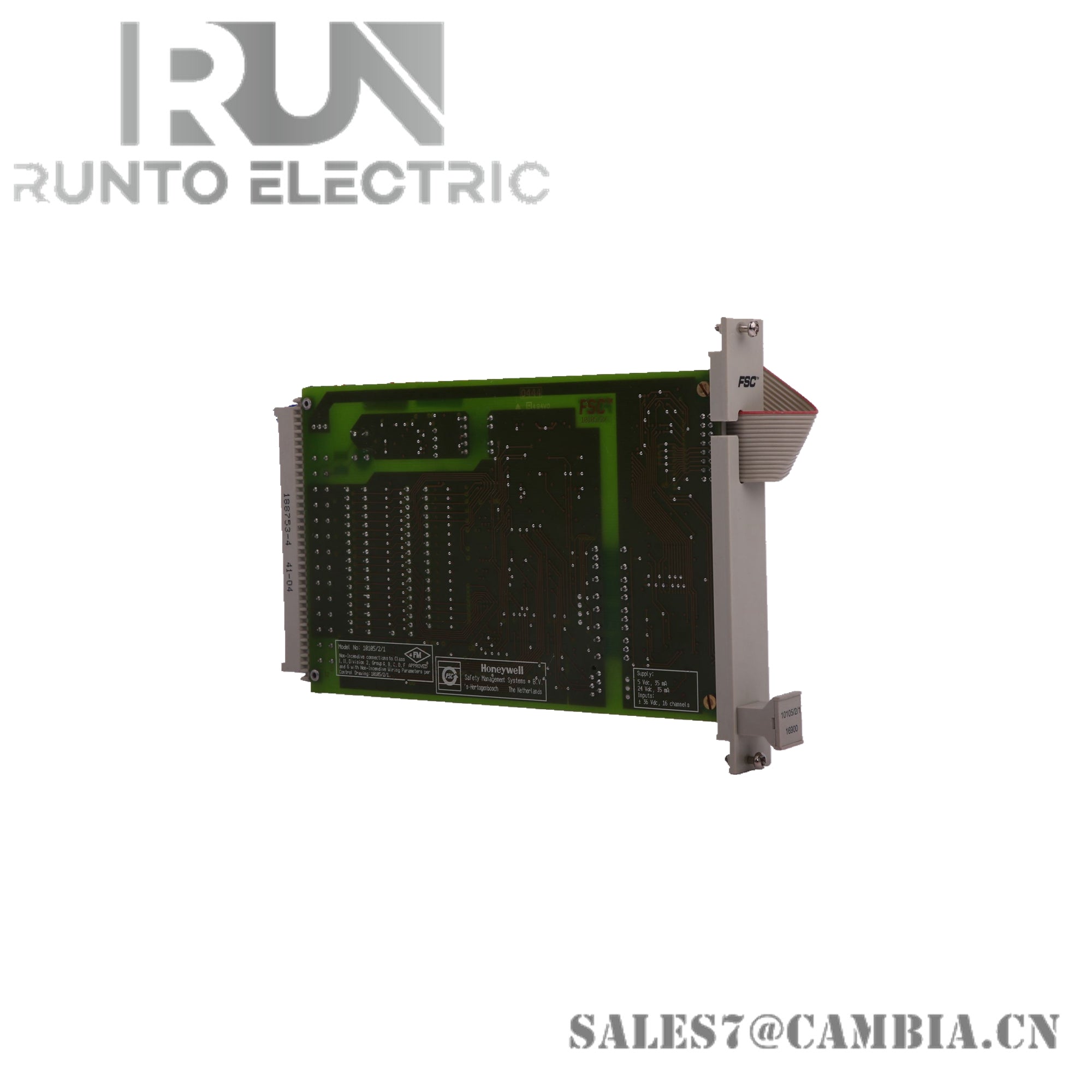

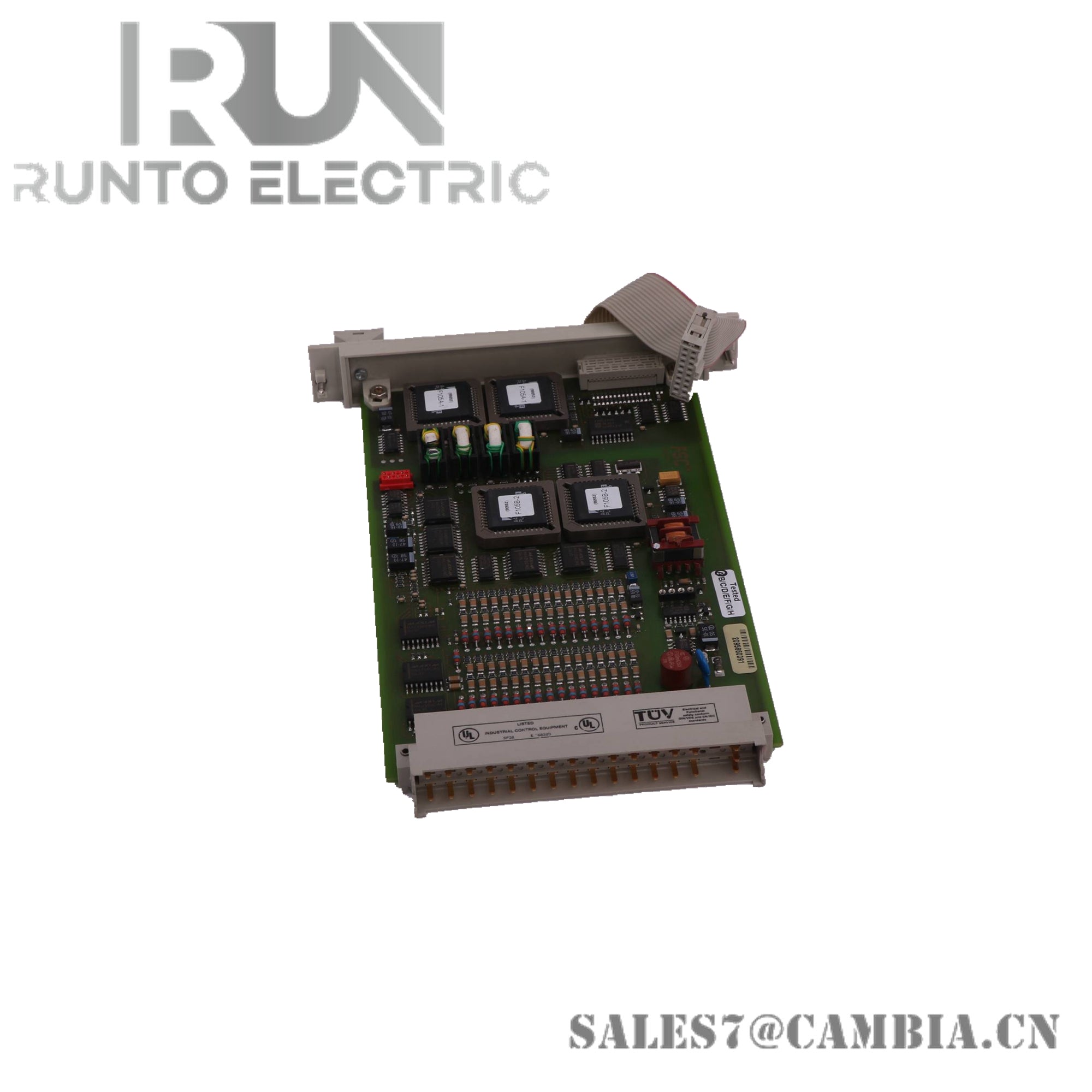

Honeywell 10105/2/1 Analog Input Module

Description

• Product No.: 10105/2/1

• Product Type: Fail-safe High-Density Analog Input Module (24 VDC, 16 Channels)
• Manufacturer: Honeywell

Specifications

• Type Number: 10105/2/1 16900
• Approvals: CE, TÜV, UL (approvals pending)
• Safety Class: AK1-6 (AK6 in redundant mode)
• Software Versions: ≥ 500
• Space Requirements: 4 TE, 3 HE (equivalent to 4 HP, 3U)
• Power Requirements:
  • 5 VDC: 35 mA
  • 24 VDC: 35 mA
• Number of Input Channels: 16
• Input Range: 0 to 4.1 V
• Input Resistance: > 1 MΩ
• A/D Converter: 12-bit
• A/D Converter Inaccuracy: ± 1 LSB
• Module Inaccuracy: < 0.25%
• Absolute Max Input Signal: ± 36 VDC
• Crosstalk Between Channels: > 60 dB
• External Voltage Readback: 0 to 4.1 V, input resistance typically 1 MΩ
• Shipping Weight: 1.5 kg
