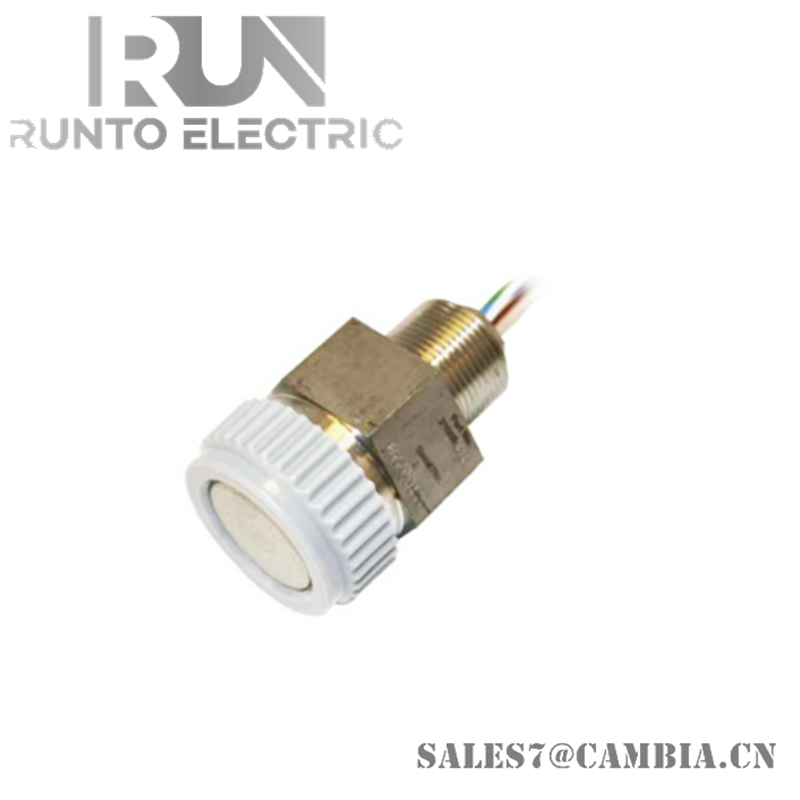

Honeywell 2106B2312 Sensepoint HT Flammable Gas Sensor

Description

The Honeywell 2106B2312 is a high-temperature flammable gas sensor from the Sensepoint HT series, designed for industrial environments requiring reliable detection across wide temperature ranges. It features a catalytic bead sensor and ATEX-certified housing for explosive atmospheres.

Specifications

• Model Number: 2106B2312
• Sensor Type: Catalytic bead flammable gas sensor
• Detection Range: 0–100% LEL (Lower Explosive Limit)
• Default Calibration: 100% LEL
• Thread Type: 3/4 NPT
• Operating Temperature: Suitable for high-temperature zones
• Power Supply: 24 VDC
• Dimensions: Approx. 23 mm diameter
• Weight: 323 g to 5 kg (varies by source)
• Origin: USA

Features

• High-Temperature Tolerance: Designed for turbine enclosures, drying ovens, and solvent-based coating systems
• Stable Detection: Enables low-level alarm settings across wide thermal conditions
• Easy Installation: 3/4 NPT threaded housing for secure mounting
• Hazardous Area Ready: Certified for use in explosive atmospheres
• Reliable Performance: Maintains accuracy and stability in demanding industrial applications
