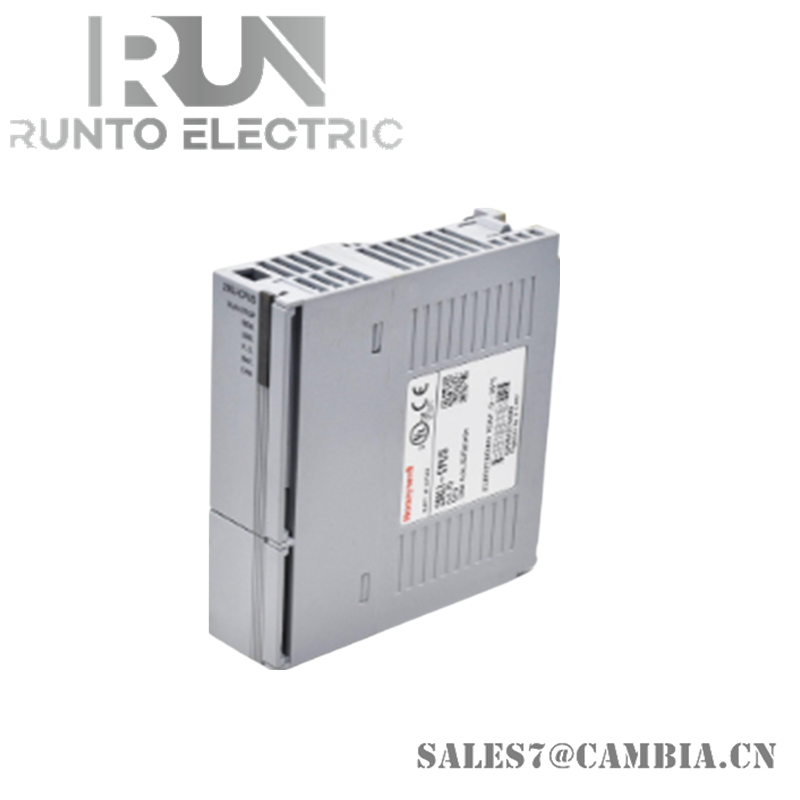

Honeywell 2MLI-CPU Central Processing Unit Module

Description

The Honeywell 2MLI-CPU is a high-performance CPU module designed for the MasterLogic-200 PLC system. It provides fast logic processing, real-time data handling, and robust communication capabilities to support demanding automation applications.

Specifications

• Model: 2MLI-CPU (MasterLogic-200 Series)
• Processor: 32-bit industrial CPU, 166 MHz clock speed
• Memory: 16 MB SDRAM, 8 MB Flash for program storage
• Instruction Execution: 0.028–0.084 µs per step depending on command
• I/O Capacity: Supports up to 512 I/O points
• Communication Ports: RS-232C, RS-485, Ethernet (10/100 Mbps)
• Programming Languages: Ladder Diagram, SFC, Structured Text
• Expansion Slots: 2 slots for communication/storage modules
• Redundancy: CPU redundancy supported
• Power Consumption: Approx. 5 W
• Operating Temperature: -10 °C to 60 °C
• Certifications: CE, UL, CSA, TÜV, IEC 61131-3
• Dimensions: 195 × 120 × 85 mm
• Weight: 0.099 kg

Features

• High-Speed Processing: Executes logic instructions in microseconds for real-time control
• Flexible Programming: Supports multiple IEC 61131-3 languages for versatile application design
• Robust Communication: Multiple ports enable integration with SCADA, DCS, and field devices
• Scalable I/O: Handles up to 512 points, suitable for medium-to-large automation systems
• Redundancy Support: Ensures system reliability with CPU failover capability
• Compact Design: Space-saving module with DIN rail or panel mounting options
• Industrial Compliance: Certified for global standards, ensuring safe and reliable operation
