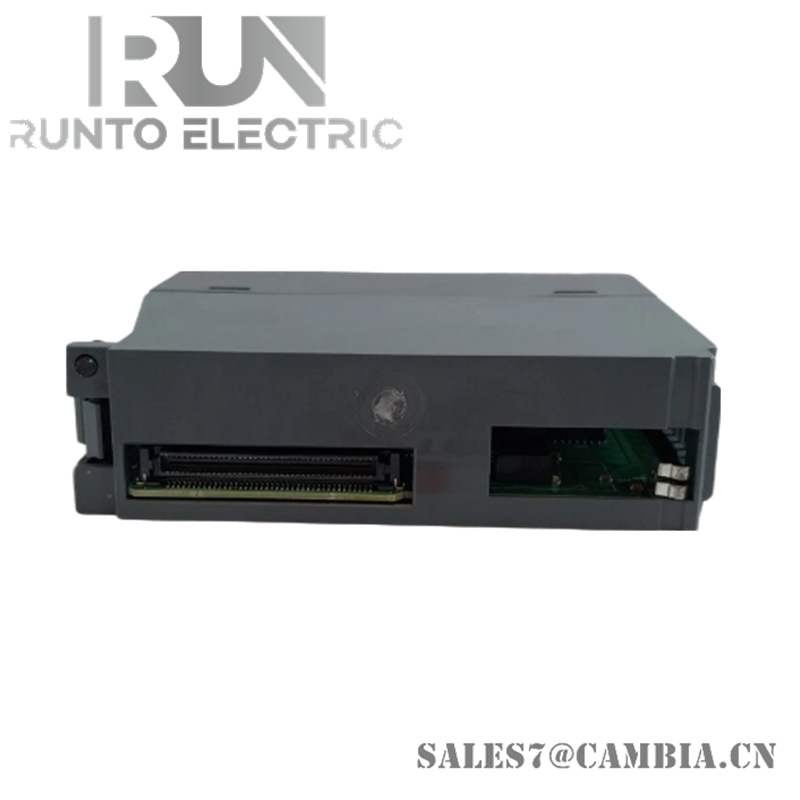

Honeywell 2MLL-C42B Analog Input and Output Module

Description

The Honeywell 2MLL-C42B is a high-performance analog input and output module from the MasterLogic-200 series. It provides precise signal acquisition and control for industrial automation, ensuring reliable integration with sensors, transmitters, and actuators.

Specifications

• Model Number: 2MLL-C42B
• Type: High-density analog I/O module
• Channels: 4 isolated analog inputs + 2 isolated analog outputs
• Resolution: 16-bit (0.0015% of span)
• Voltage Ranges: ±10V, 0–10V
• Current Ranges: 0–20mA, 4–20mA
• Accuracy: ±0.05% of span
• Update Rate: 10 ms per channel
• Isolation: 1500V channel-to-channel
• Protection: Overvoltage ±30V continuous, reverse polarity, ESD ±8kV (IEC 61000-4-2)
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -50°C to +85°C
• Certifications: CE, TUV, UL508, CSA
• Dimensions: 256 × 169 × 145 mm
• Weight: 0.6 lbs (approx. 0.14 kg )

Features

• High Precision: 16-bit resolution ensures accurate signal measurement and output control
• Flexible Signal Support: Compatible with both voltage and current signals for diverse field devices
• Fast Response: 10 ms/channel update rate for real-time industrial control
• Robust Isolation: 1500V isolation enhances safety and reliability in harsh environments
• Wide Temperature Range: Operates reliably from -40°C to +70°C
• Industrial Compliance: Certified to CE, TUV, UL508, and CSA standards
• Compact Design: Fits seamlessly into MasterLogic-200 PLC systems
• Enhanced Protection: Built-in overvoltage, reverse polarity, and ESD safeguards
